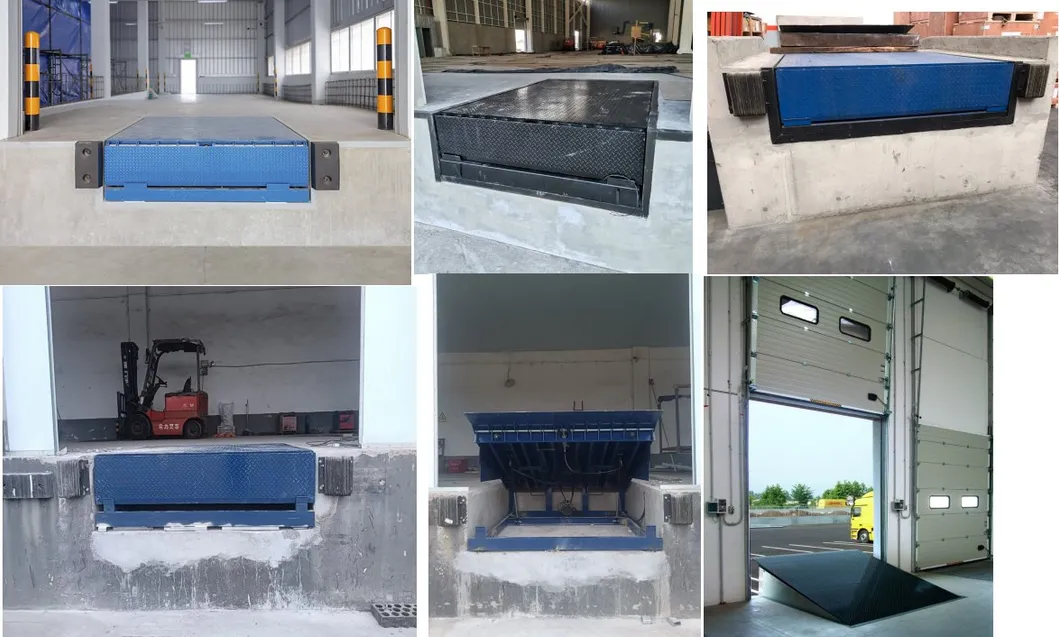

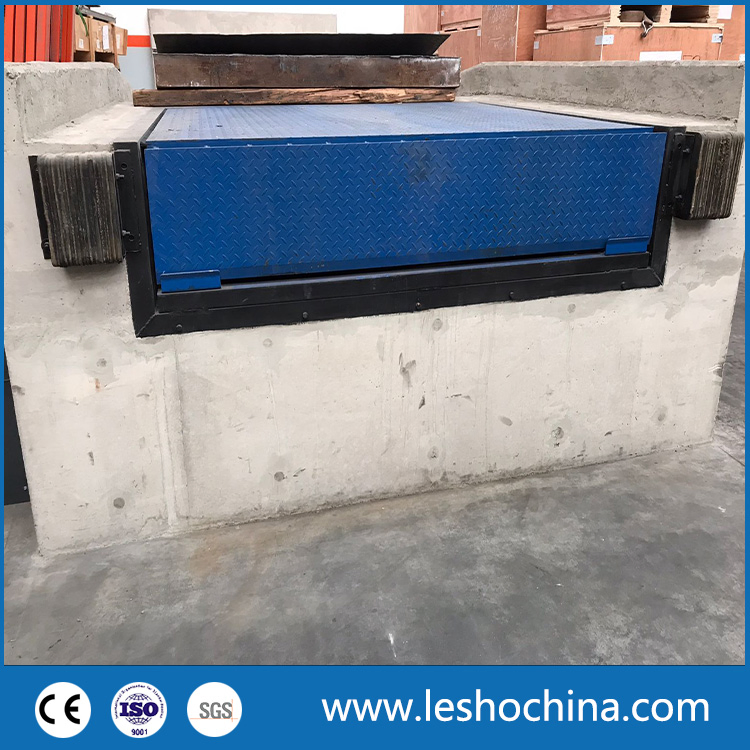

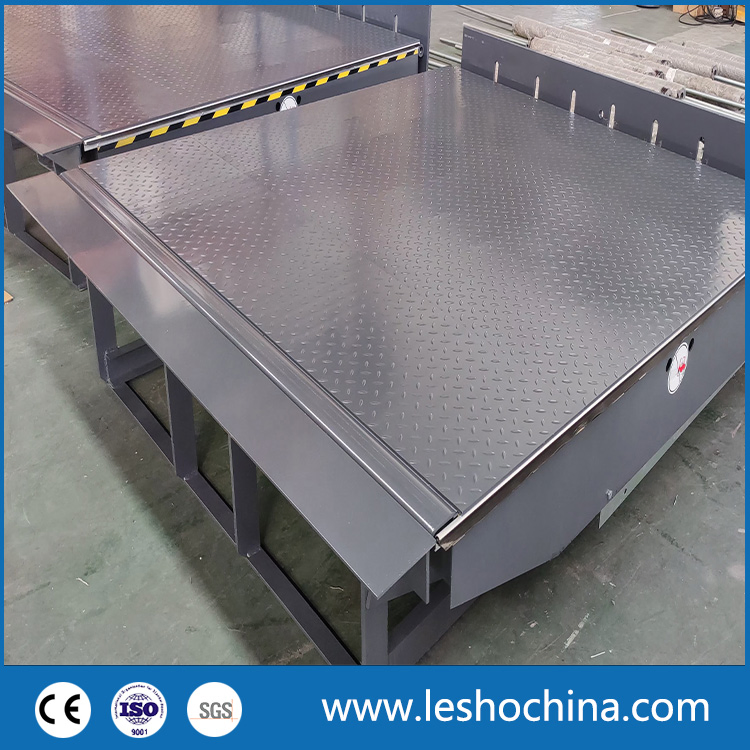

The automatic stationary fixed hydraulic dock leveler is the optimal solution for adjusting height differences between loading platforms and container trucks. It allows for arbitrary height adjustment within a large range, significantly improving loading and unloading efficiency while saving manpower.
Widely used in warehouses, stations, docks, logistics bases, postal transportation, and logistics distribution centers where frequent loading and unloading of various vehicle models occurs.
| Dynamic load | Panel thickness | Panel reinforcement | Thickness of mouth plate | Base frame | Static load | Forklift range |
| 5 tons | 6mm | 4mmL steel | 12mm | 60 channel steel | 8 tons | 2.5 tons plug-in |
| 8 tons | 8mm | 4mmL steel | 16mm | 100 channel steel | 11 tons | 3.5 tons plug-in |
| 10 tons | 8mm | 14 # I-beam | 16mm | 100 channel steel | 13 tons | 5 tons plug-in |
| 14 tons | 10mm | 16# I-beam | 16mm | 100 channel steel | 17 tons | 6 tons plug-in |

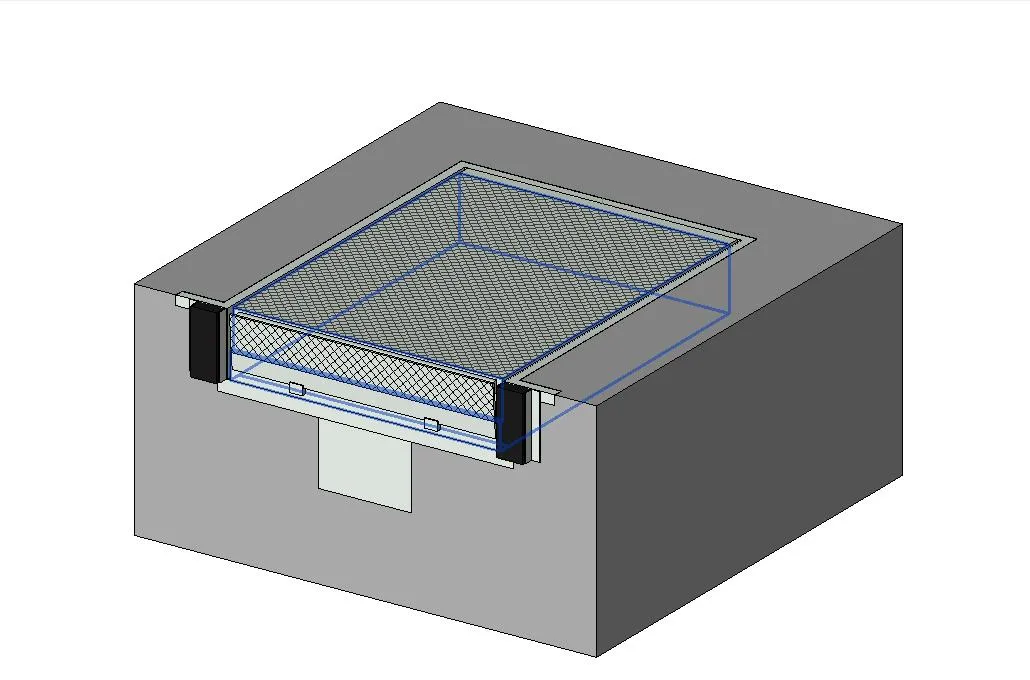

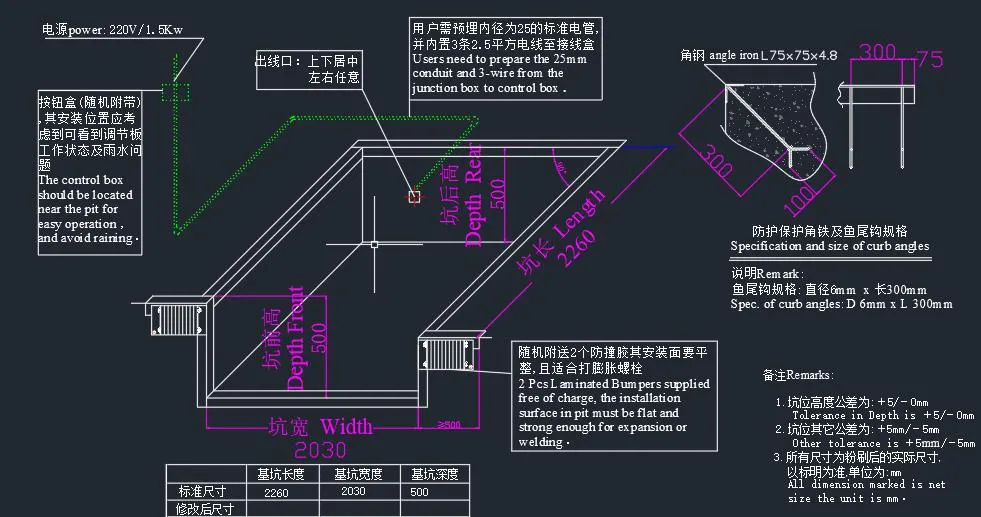

We provide accurate shop drawings to show pit dimensions clearly, ensuring accurate construction and installation without misunderstanding.

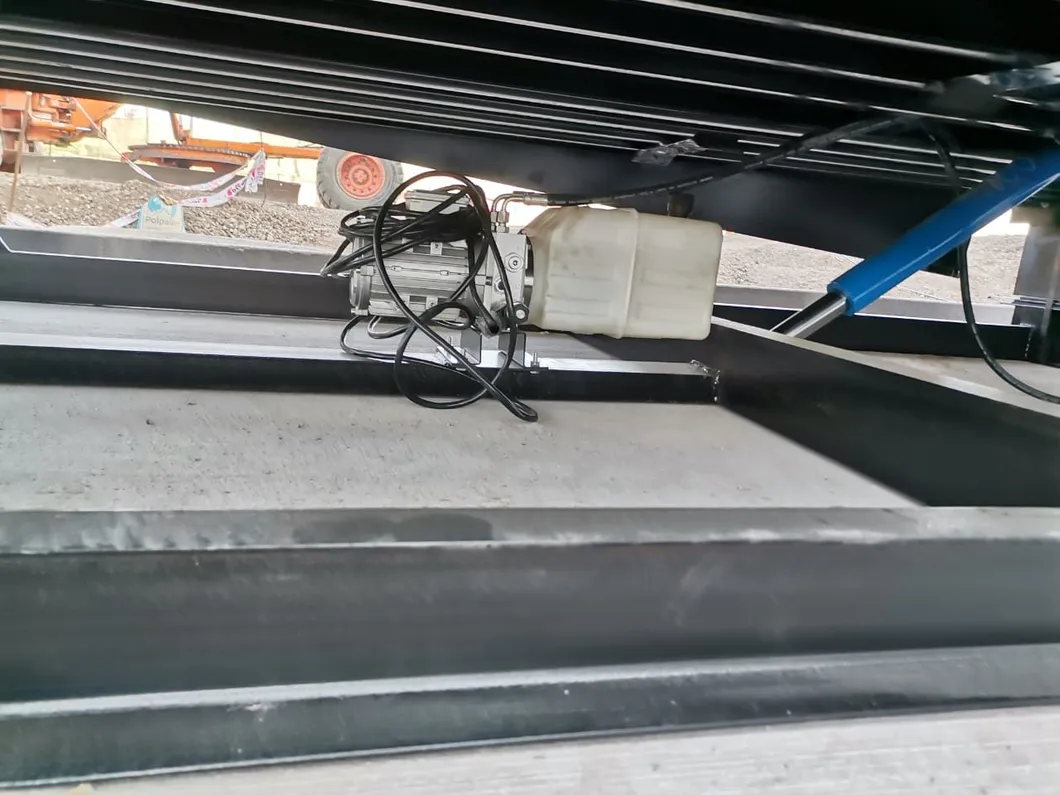

Hydraulic Motor: Features overheating self-protection; 0.75KW-1.5KW output; available in 3-phase 380V/50Hz configurations.

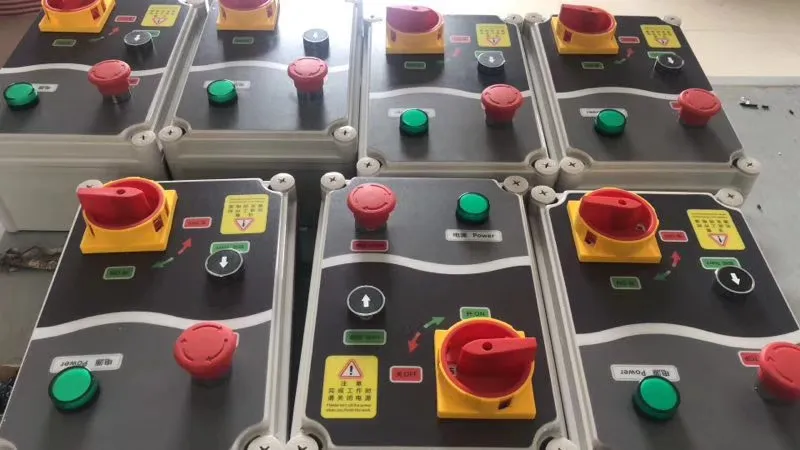

Control Panel: Multi-function controller with emergency stop button and simple one-touch operation.

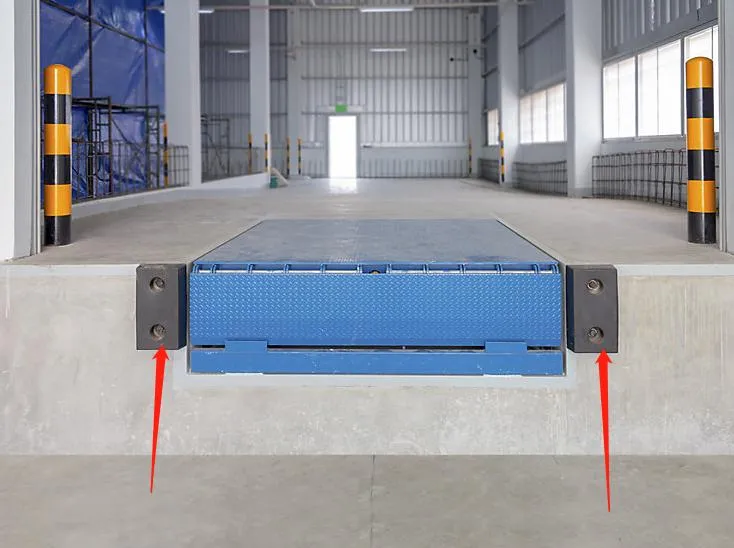

Dock Bumper: High-strength, wear-proof rubber material fixed with expansion bolts to protect the dock.

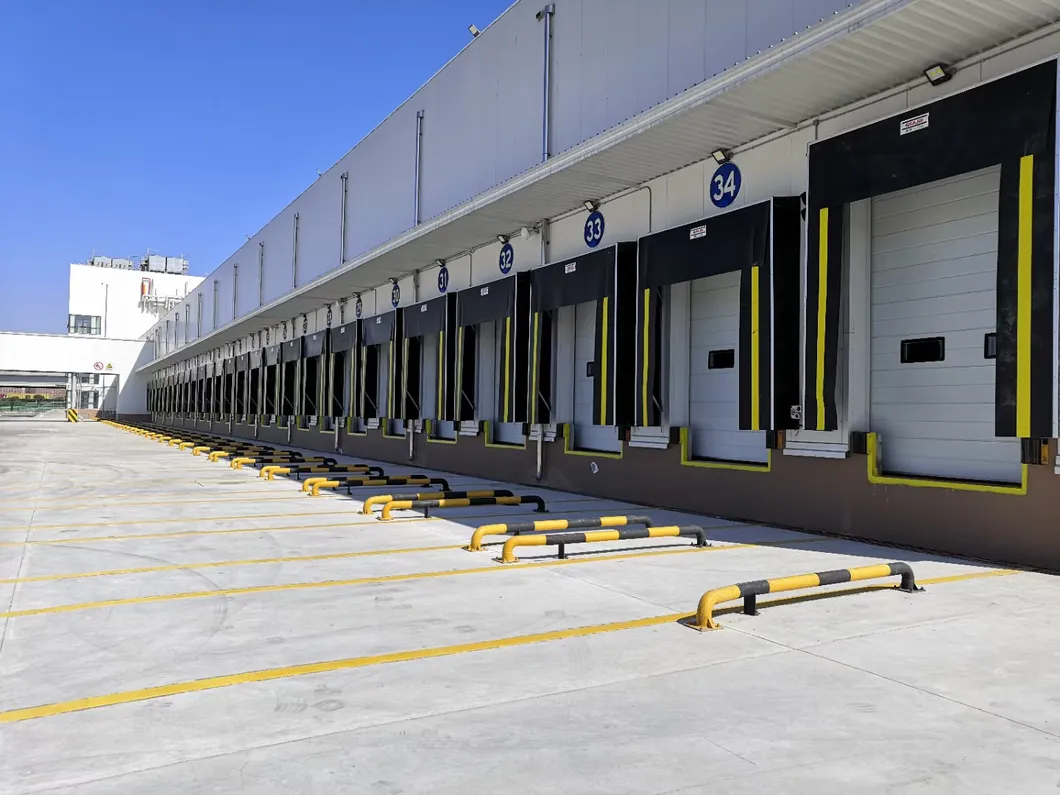

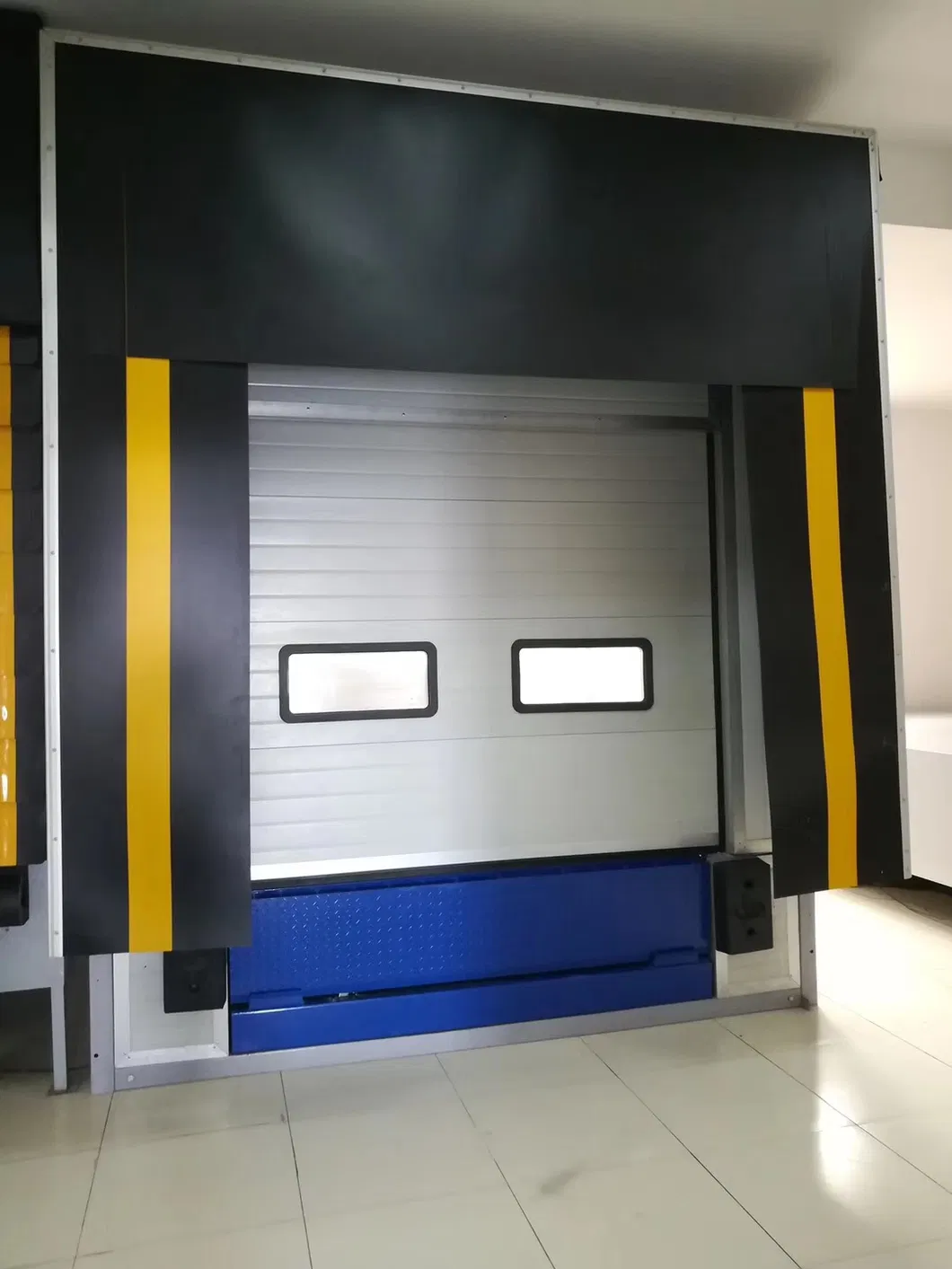

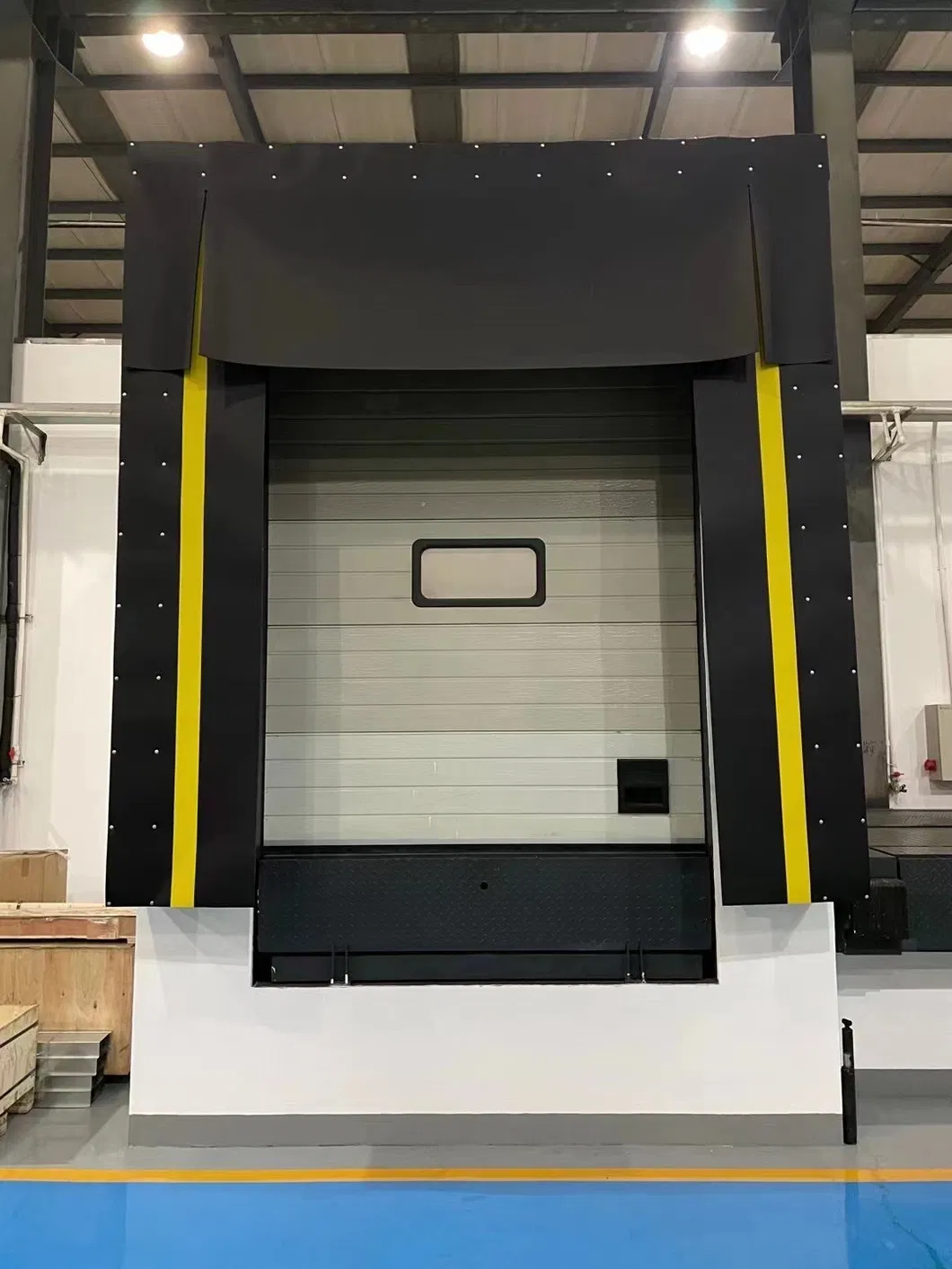

We provide full assemblies including Sectional Overhead Doors, Dock Levelers, and Dock Shelters. This integration maximizes loading efficiency and protects the internal environment.

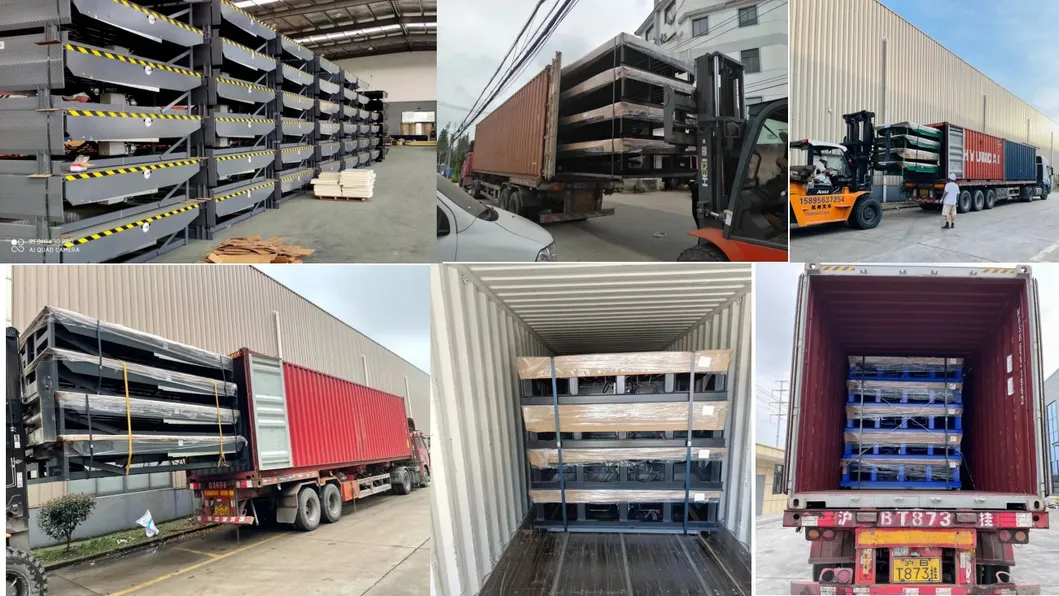

For standard size L2000*W2000*H600mm, a 40ft HQ container can load 20 sets, while a 20ft container can accommodate 8 sets.
