| Package Size | 200.00cm * 300.00cm * 60.00cm |
|---|---|
| Package Gross Weight | 800.000kg |
| Transport Package | Wooden Cases |

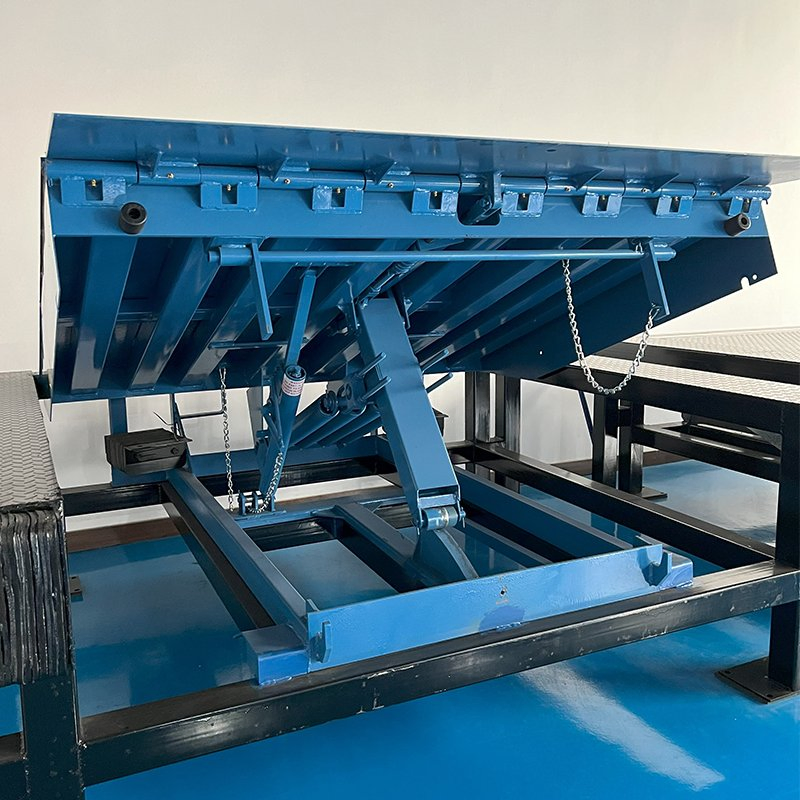

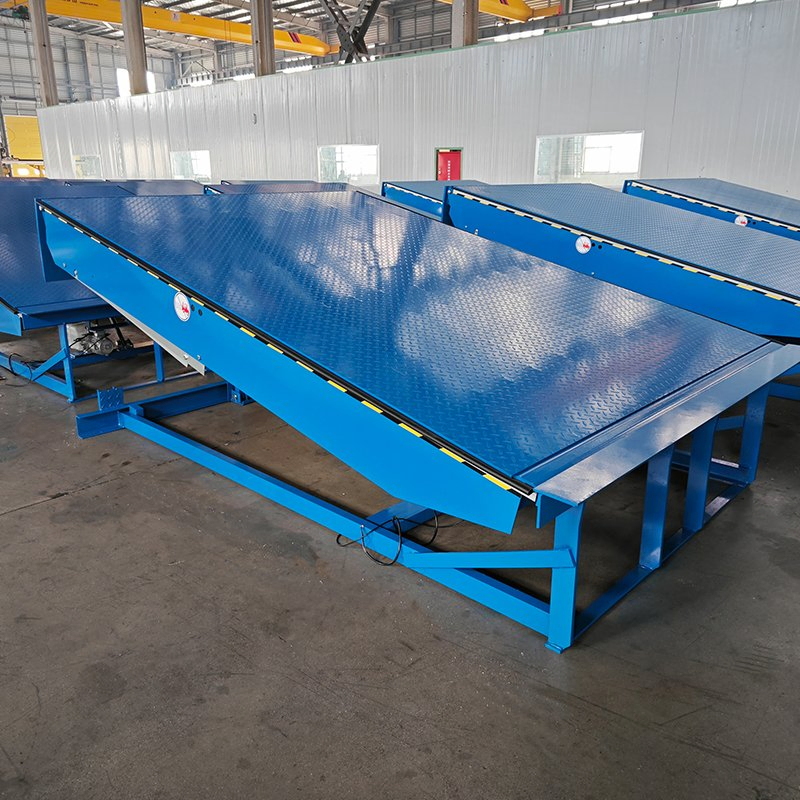

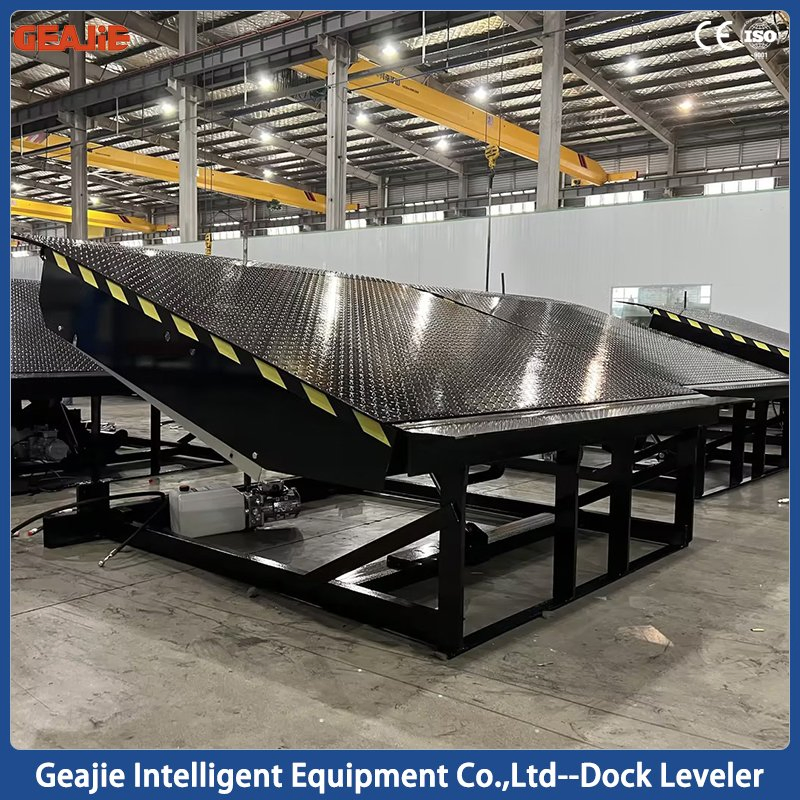

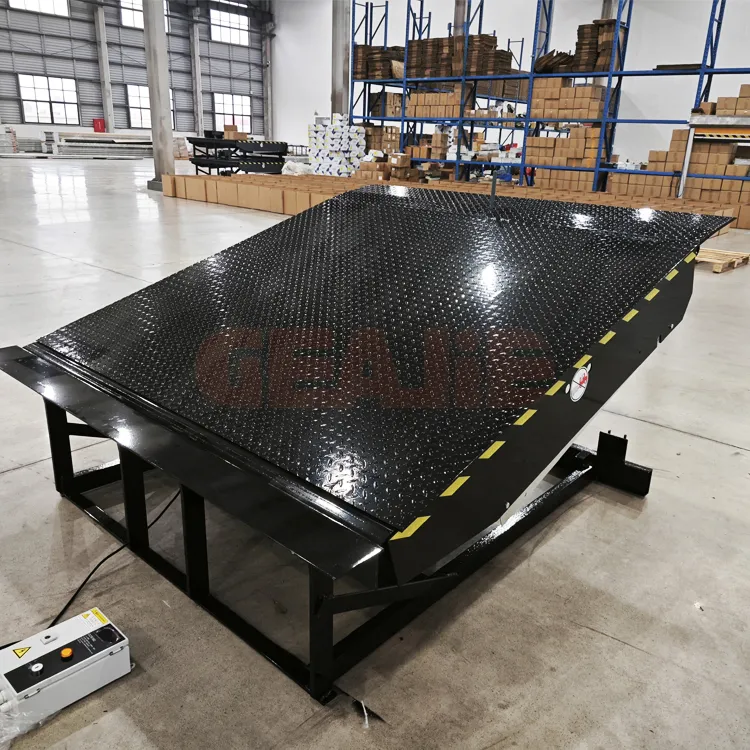

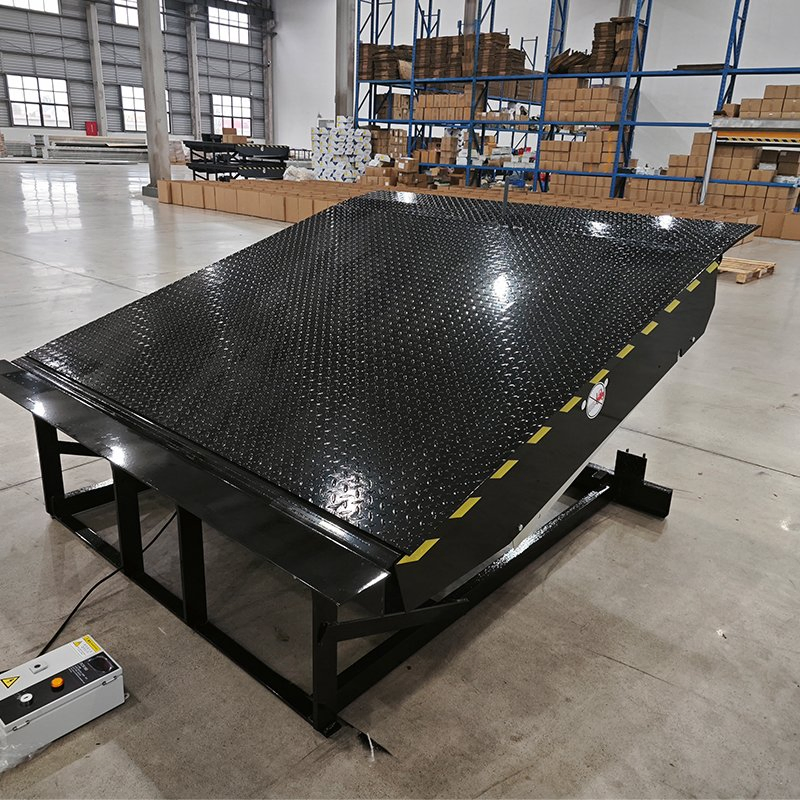

Electric Hydraulic Dock Leveller
| Material & Specification Description | |
|---|---|

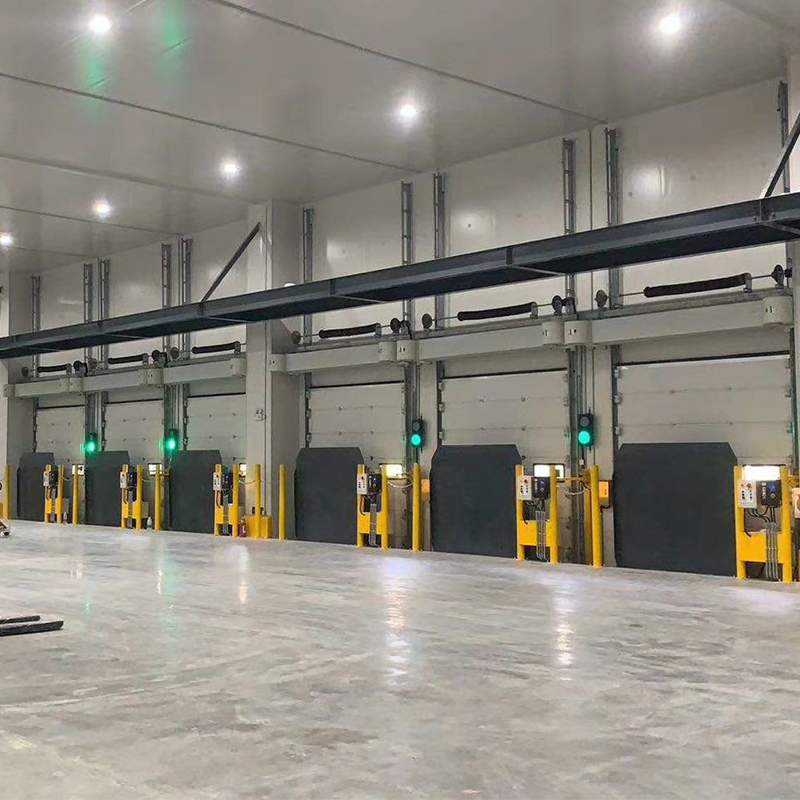

| Application Environment | Logistics unloading port |
| Load Capacity | 6-25 tons |
| Width (W) | 1830mm, 2000mm, 2130mm |
| Length (L) | 2000mm, 2500mm, 3000mm, 3500mm |
| Lip Plate | Standard 400mm, 500mm optional |
| Lip Style | Standard tongue plate, T-shaped tongue plate, three-section tongue plate |
| Countertop Structure | 8mm high-strength anti-skid pattern steel plate with bottom reinforcement |
| Hydraulic Power Unit | Swiss Bucher Hydraulic System |
| Security Configuration | Anti-fall function, anti-pinch protection, maintenance support rod, night self-locking |

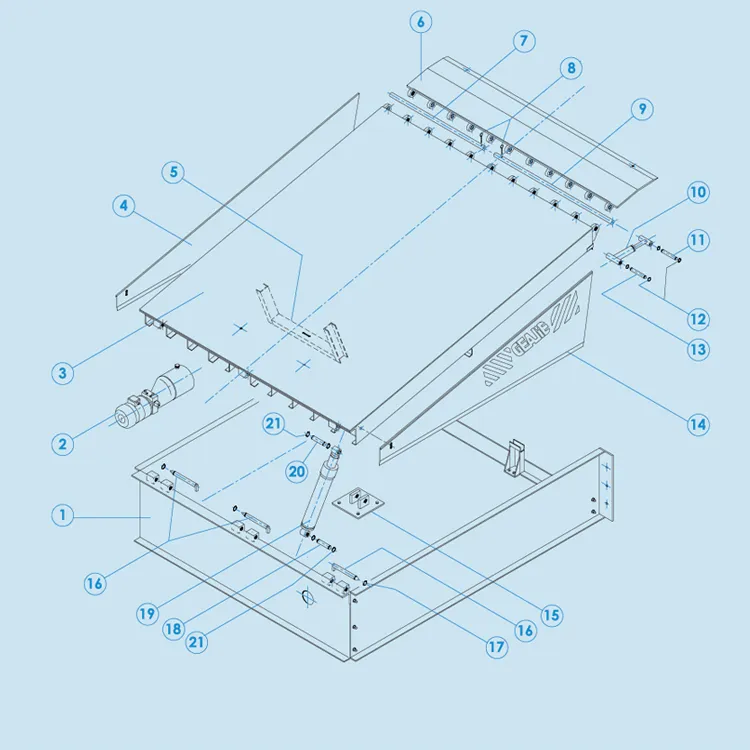

| 1. Mould | 12. Seeger straight pins of the lip |
| 2. Hydraulic control unit | 13. Straight Pin body of the body |
| 3. Upper plate | 14. Right foot guard |
| 4. Left foot guard | 15. Flange fixing - upper plate cylinder |
| 5. Control unit support | 16. Upper plate rotation pivot |
| 6. Swinging lip | 17. Seeger upper plate rotation pivot |
| 7. Left short shaft | 18. Straight Pin body of the upper plate |
| 8. Shaft fixing pins | 19. Upper plate cylinder |
| 9. Right long shaft | 20. Upper plate cylinder shaft pin |
| 10. Cylinder of the lip | 21. Seeger upper plate cylinder pins |
