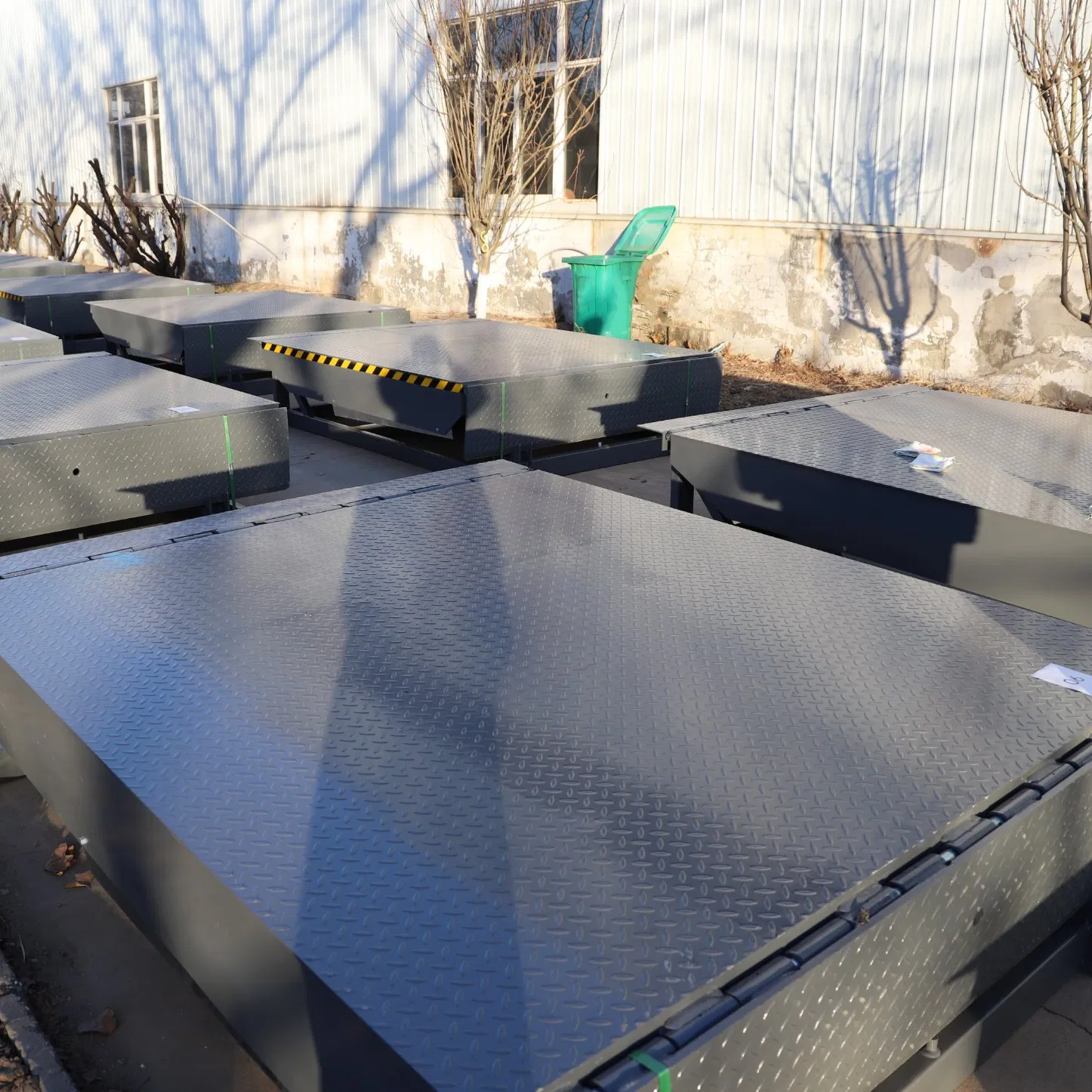

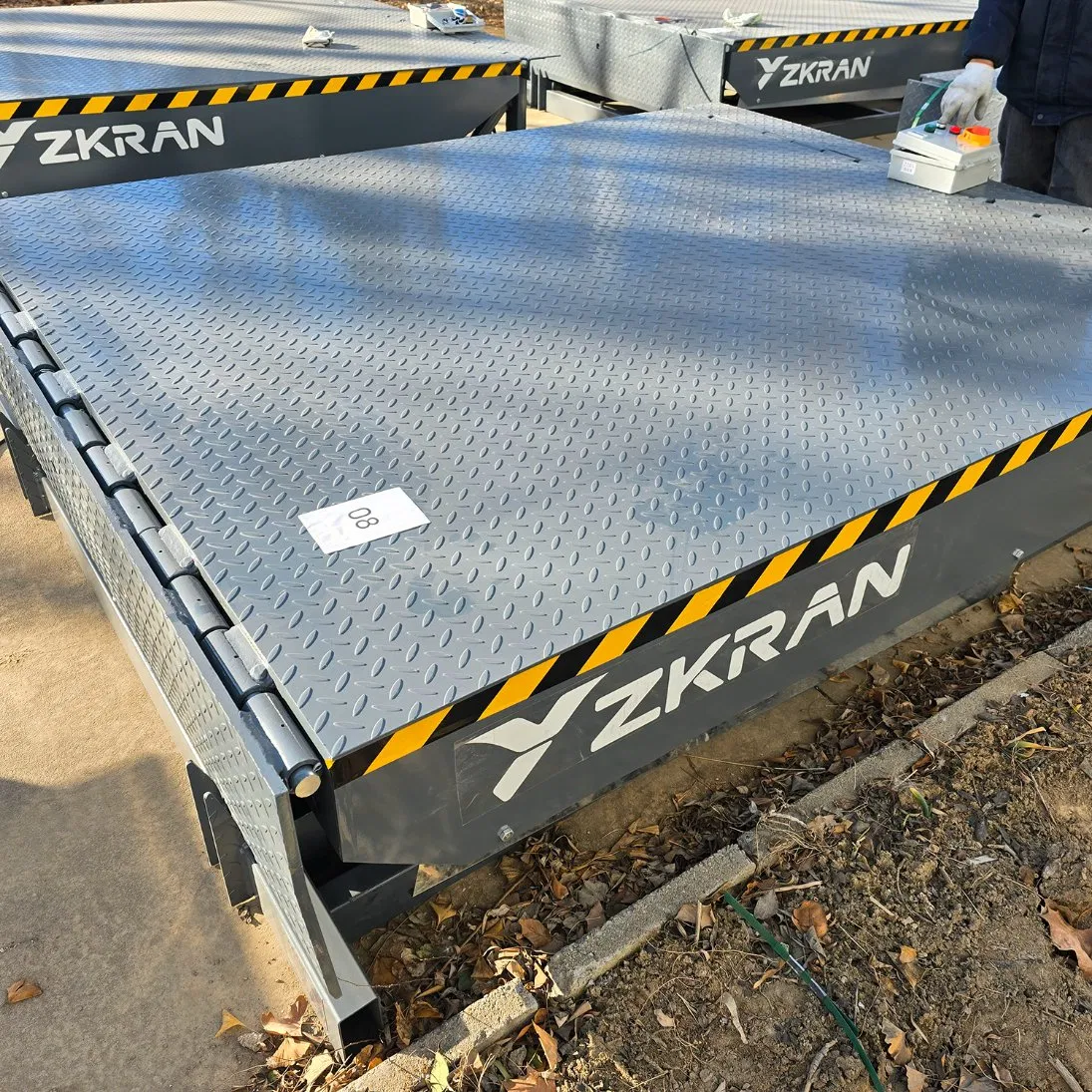

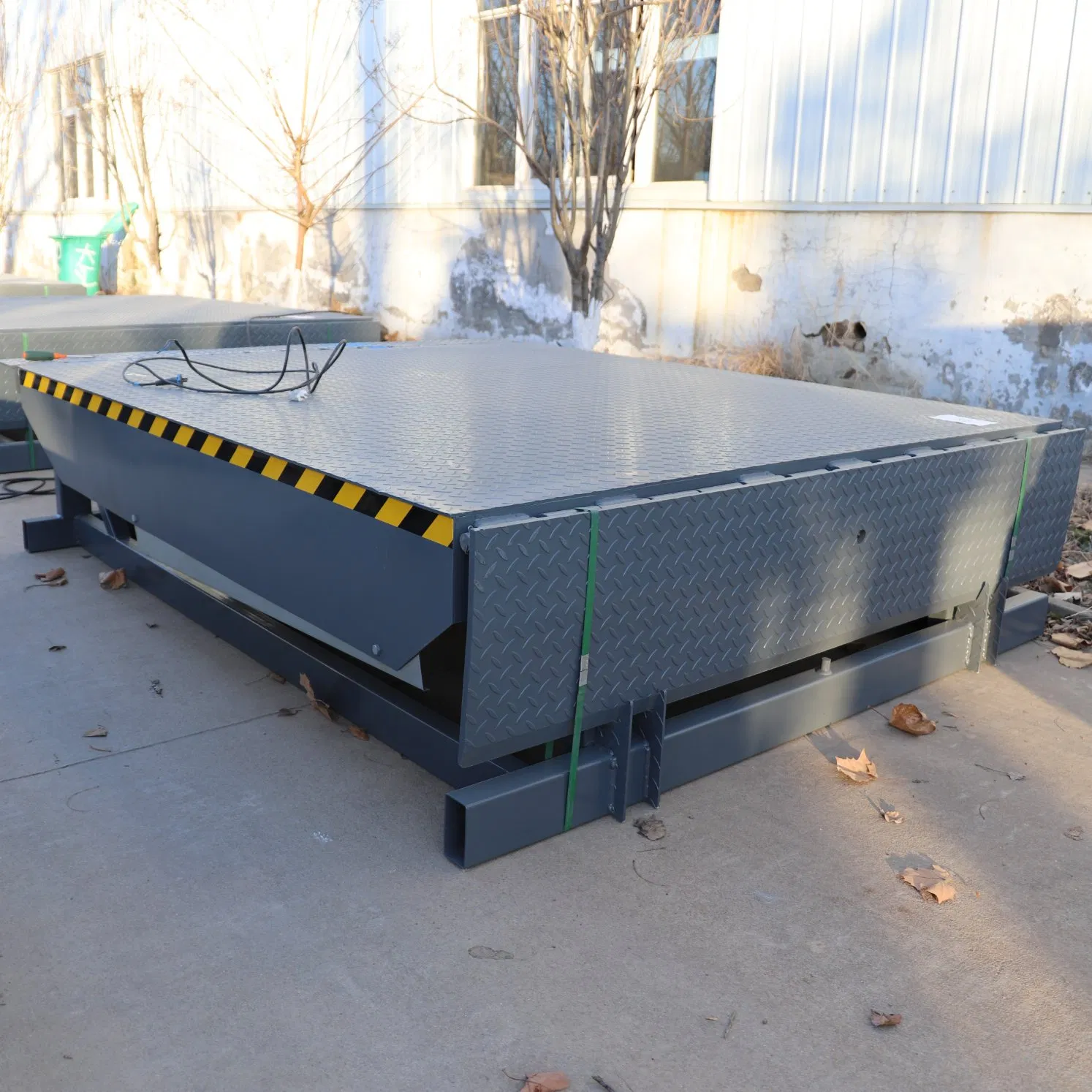

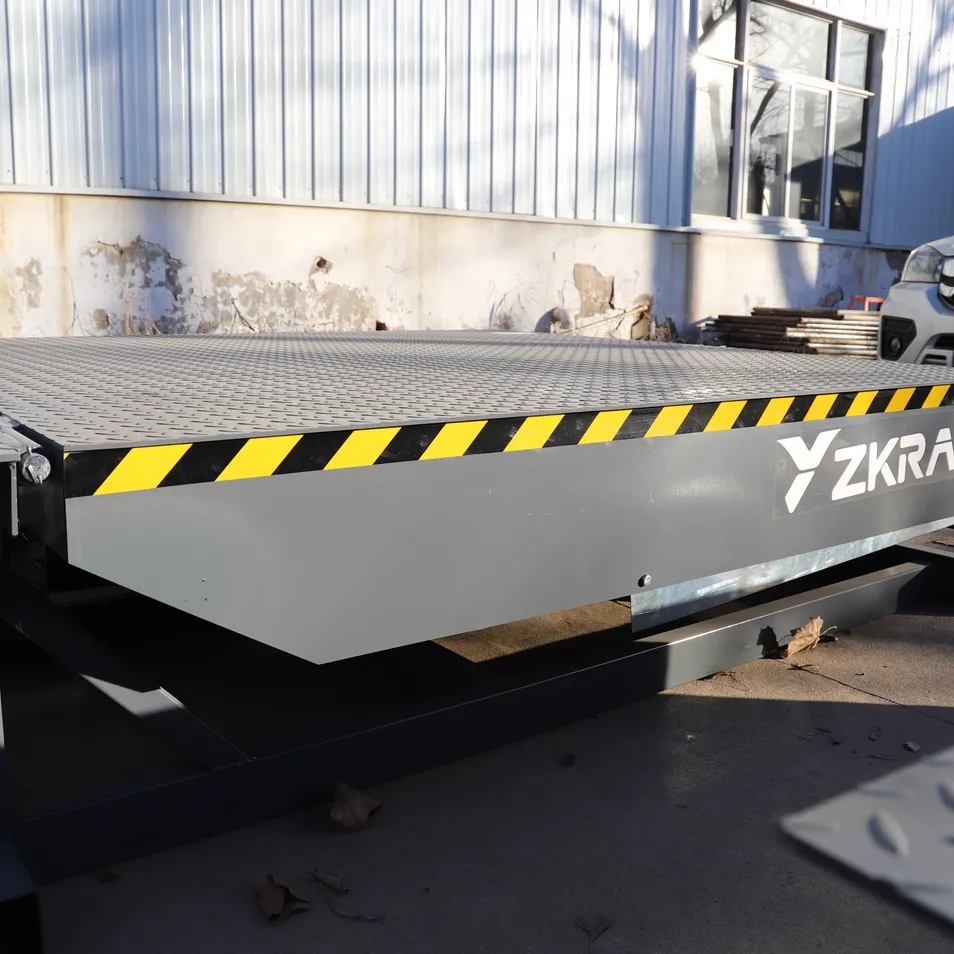

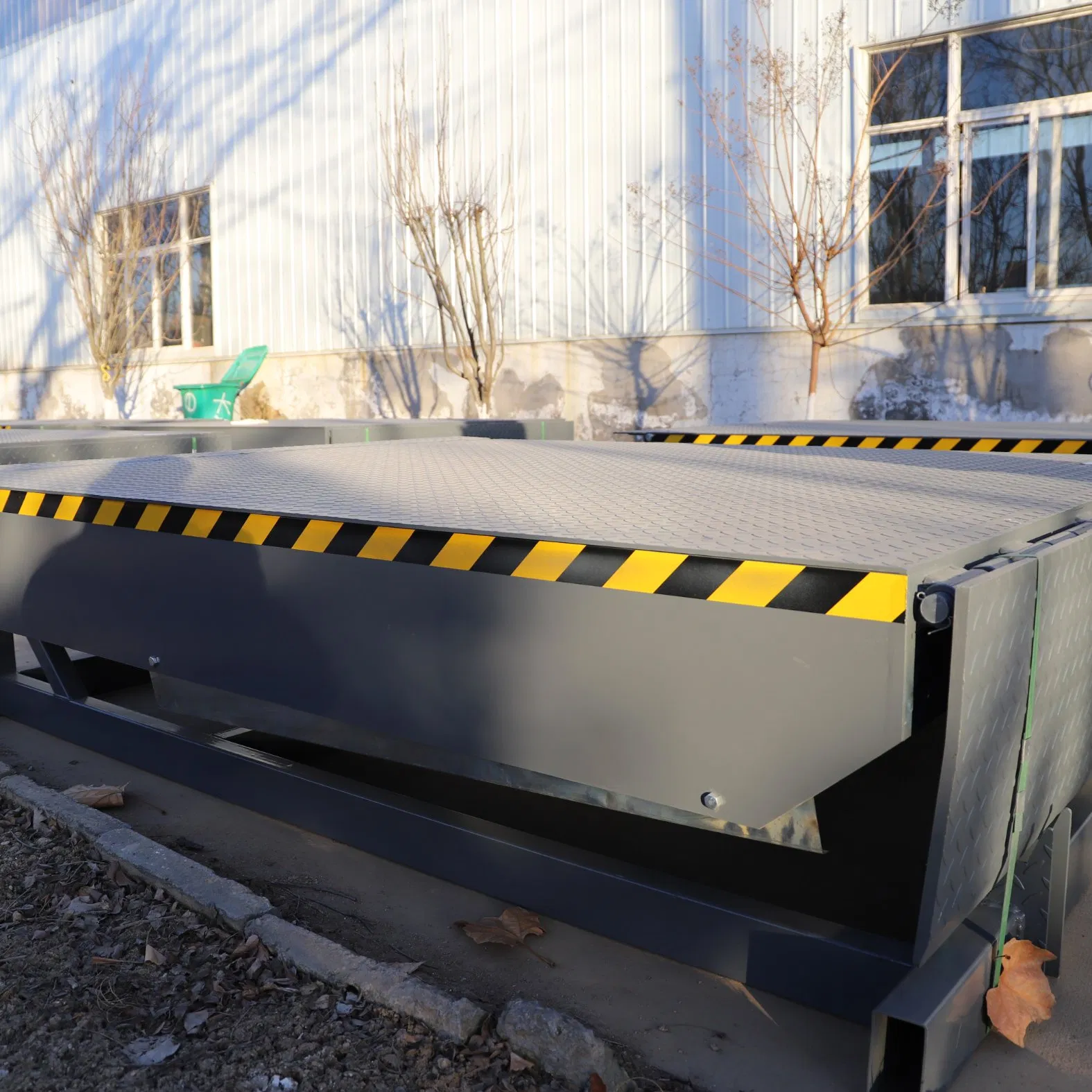

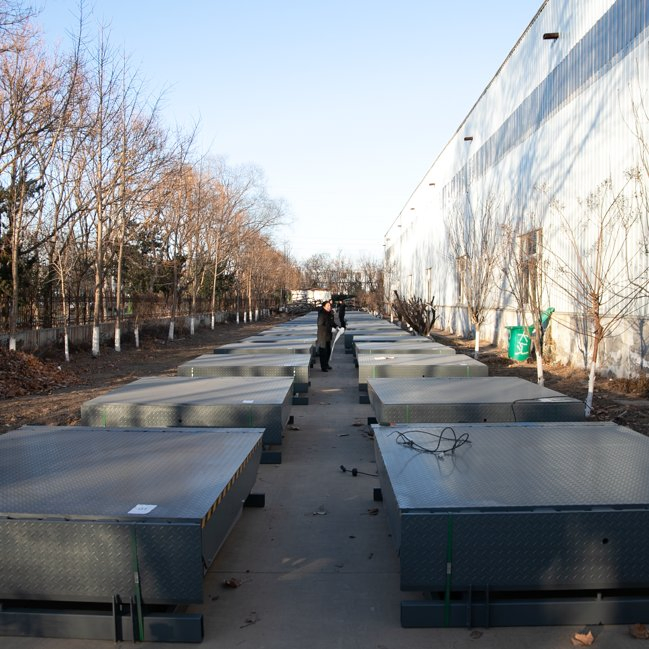

Innovative Design Edge of Dock Leveler Warehouse Dock Leveler Hydraulic Power Loading Dock Leveler for Safety

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Basic Specifications

Model NO.

L22

Application

Hydraulic Lifting Platform

Lift Mechanism

Articulated Lift

Capacity

12 Ton

Driven Type

Hydraulic

Certification

CE, ISO 9001

Voltage

220V, 380V, 415V

Motor Power

1.5kw-11kw

Lifting Speed

0.1-0.3m/S

Origin

China

Product Overview

Professional Hydraulic Lifting Solutions

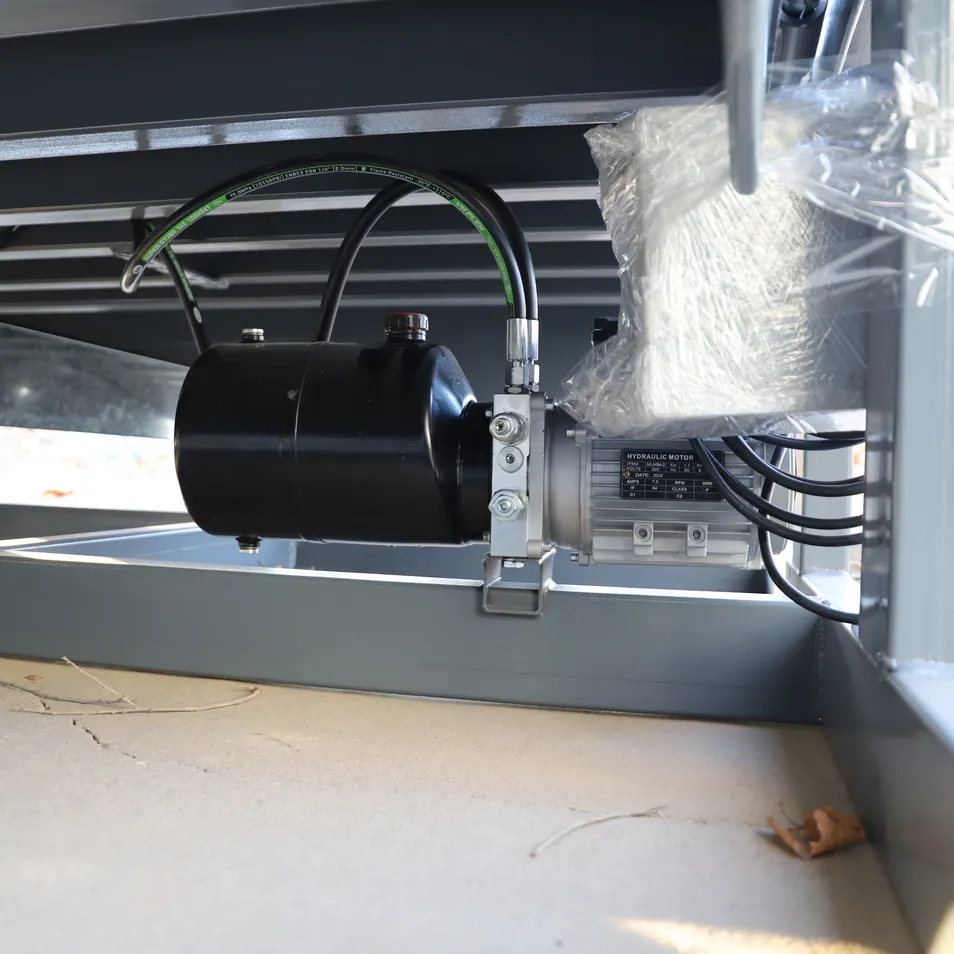

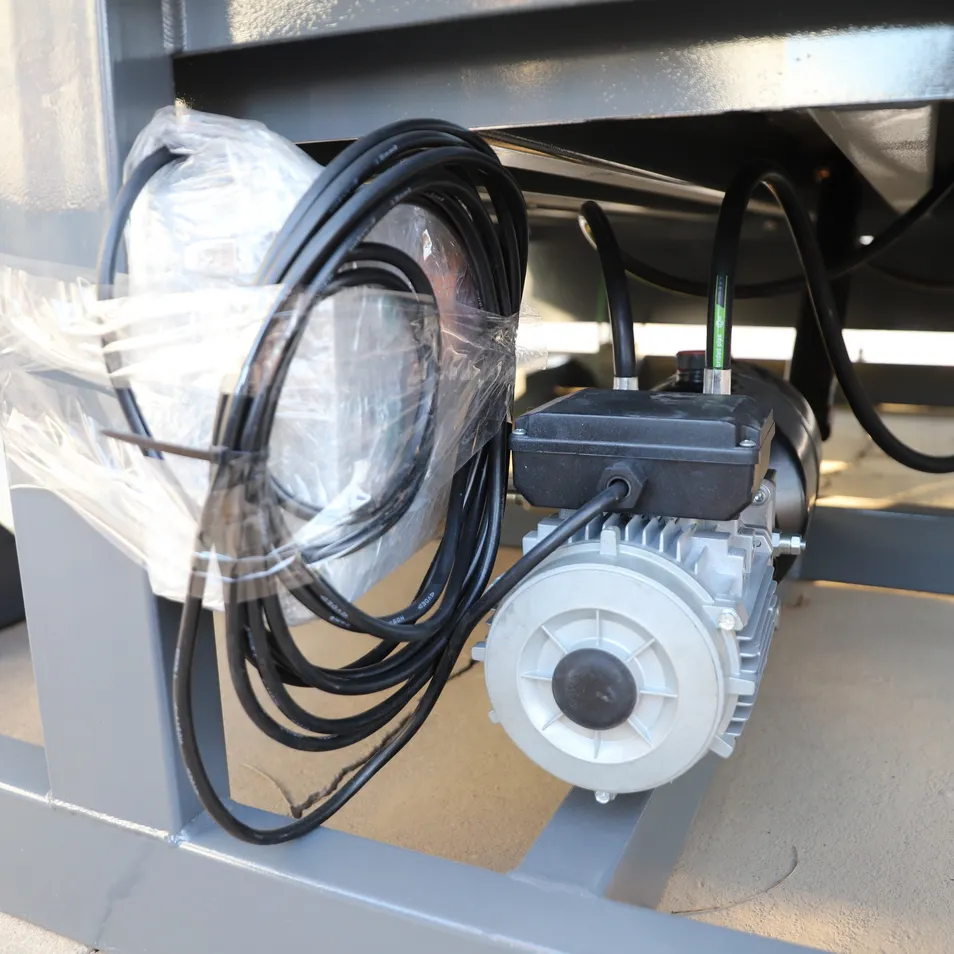

Our hydraulic lifting platforms are engineered based on Pascal's principle, utilizing a high-performance hydraulic system as the core power source. Equipped with premium motors, oil cylinders, and precision control valves, these platforms deliver stable and accurate vertical movement. With a flexible lifting range of 1 to 30 meters and capacities ranging from 500kg to multiple tons, we provide customizable solutions for every industrial need.

Key Features

Simple structure, optimized for easy customization and rapid production.
Low installation requirements, simplifying maintenance and service.
Constructed from specialized high-strength steel plates for maximum durability.
Rust-resistant surface coating ensures longevity in diverse environments.
Human-centric safety design with intuitive electric switch operation.
Customizable load capacities to optimize operational costs.

Industrial Applications

1. Industrial Production: Ideal for assembly lines, material handling, and precision equipment lifting.

2. Logistics & Warehousing: Perfect for vertical cargo access and loading dock operations, including cold-chain compatibility down to -25℃.

3. Construction: Supports vertical transport and aerial work in high-rise and municipal projects.

4. Automotive: Enhances maintenance efficiency through precise platform alignment.

5. Aerial Work: Suitable for cleaning, maintenance, and installation tasks both indoors and outdoors.

Product Details

Technical Parameters

Parameter Name	Specification Range
Rated Load	500kg - 50,000kg
Lifting Height	1m - 30m
Platform Size	Customizable (Standard from 2000×1350mm)
Lifting Speed	0.1 - 0.3m/s
Motor Power	1.5kw - 11kw
Power Supply Voltage	380V/50Hz (220V/48V customizable)
Material	Carbon Steel / 304 Stainless Steel
Operation Mode	Button Control / Remote Control

Frequently Asked Questions

Q: What load capacities are available for your hydraulic lifting platforms?

A: Our standard lifting platforms cover 500kg to 10,000kg. Custom load capacities are also available up to 50,000kg according to your specific requirements.

Q: Can these lift tables be used in cold chain or low-temperature environments?

A: Yes. Our specialized cold-chain models are designed to operate stably at temperatures as low as -25℃, making them ideal for refrigerated logistics.

Q: Do you provide customized sizes and lifting heights?

A: Absolutely. We offer full customization for platform dimensions, lifting heights, power types (AC/DC), and control systems to suit your unique site conditions.

Q: What safety features are included?

A: Safety is priority. Each unit is equipped with overload protection, emergency stop buttons, anti-fall valves, non-slip surfaces, and safety fences.

Q: What materials are used in construction?

A: We primarily use high-grade Carbon Steel for standard industrial use, but 304 Stainless Steel options are available for food-grade or corrosive environments.

Q: Is it easy to install and maintain?

A: Yes, our design features a simplified structure that requires minimal installation effort and is built for convenient long-term after-sales service.
