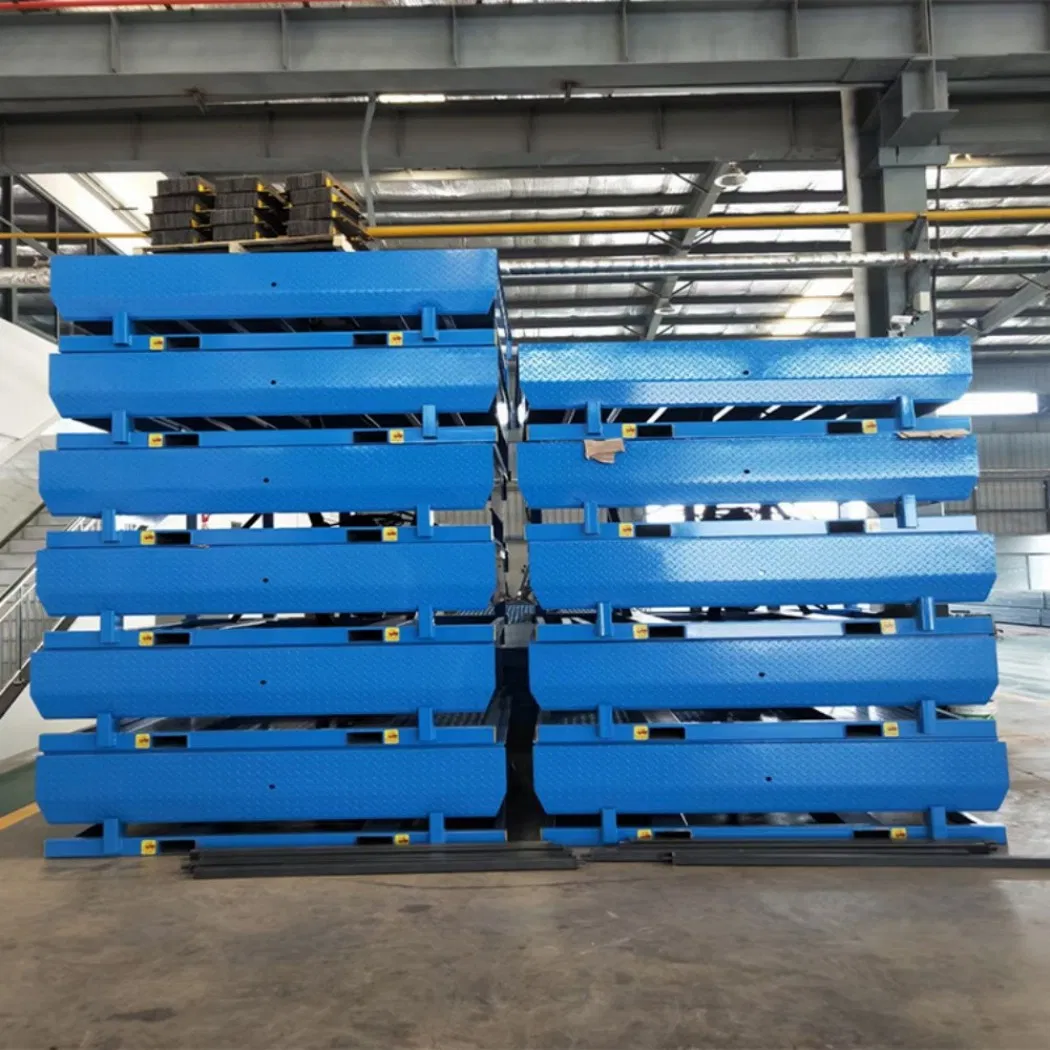

Main Shaft Wholesale Loading Equipment Dock Leveler Price Fixed Hydraulic Platform

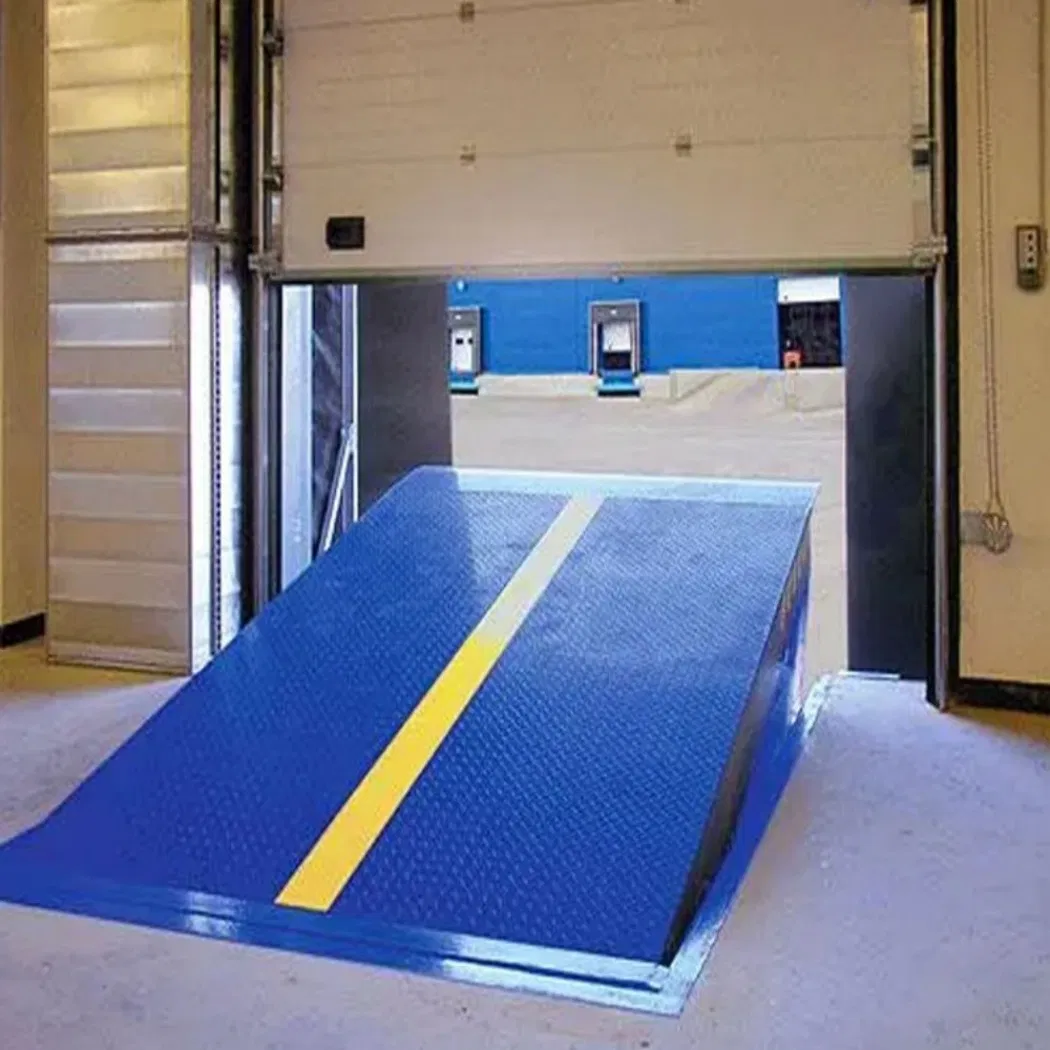

The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential.
We offer a wide range of dock levelling solutions, including Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

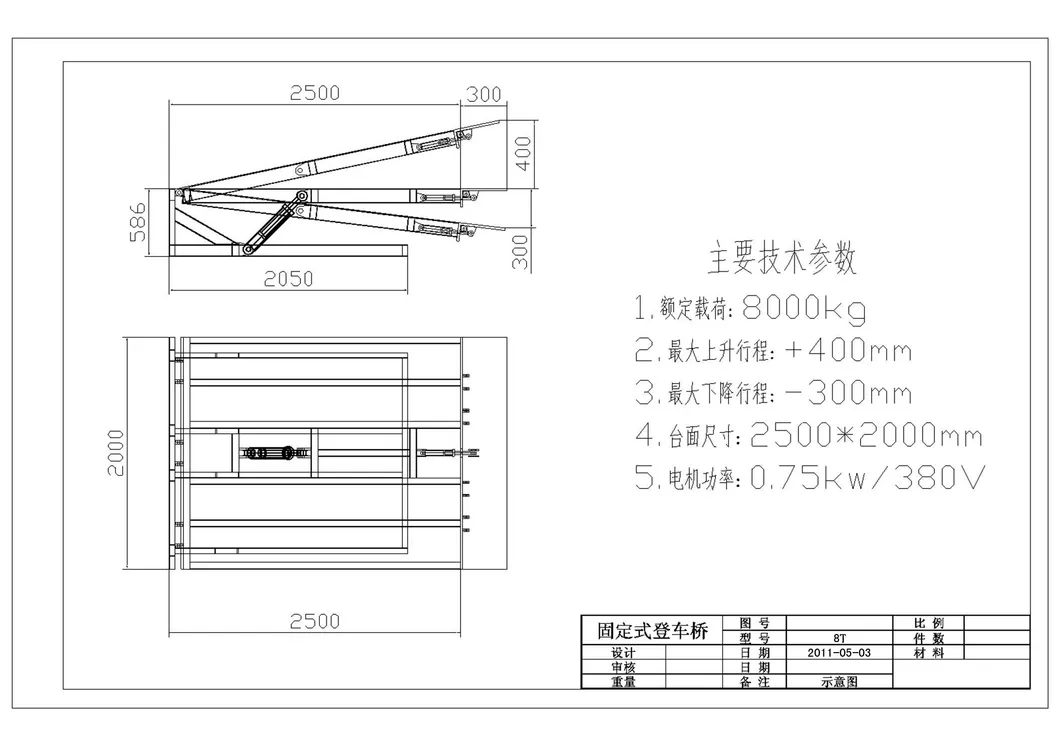

| Model | Capacity | Platform Size | Distance | Lip board size | Motor Power |
|---|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ10 | 10 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ12 | 12 | 2500*2000mm | 100 | 400mm | 0.75KW |
| DCGQ6 | 6 | 2000*2000mm | 100 | 400mm | 0.75KW |
| DCGQ8 | 8 | 2000*2000mm | 100 | 400mm | 0.75KW |
| DCGQ10 | 10 | 2000*2000mm | 100 | 400mm | 0.75KW |
| DCGQ12 | 12 | 2000*2000mm | 100 | 400mm | 0.75KW |

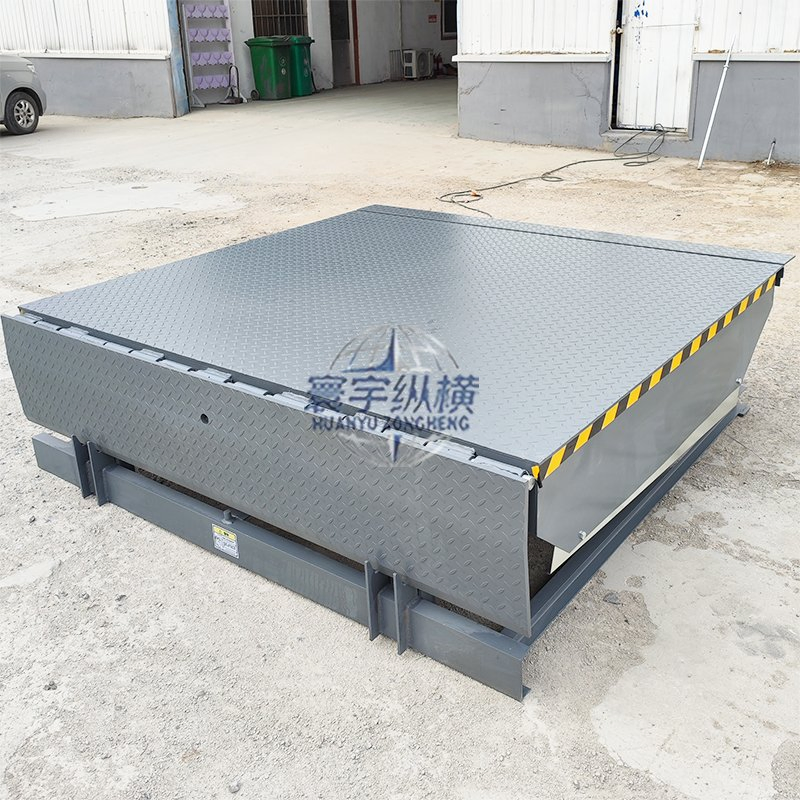

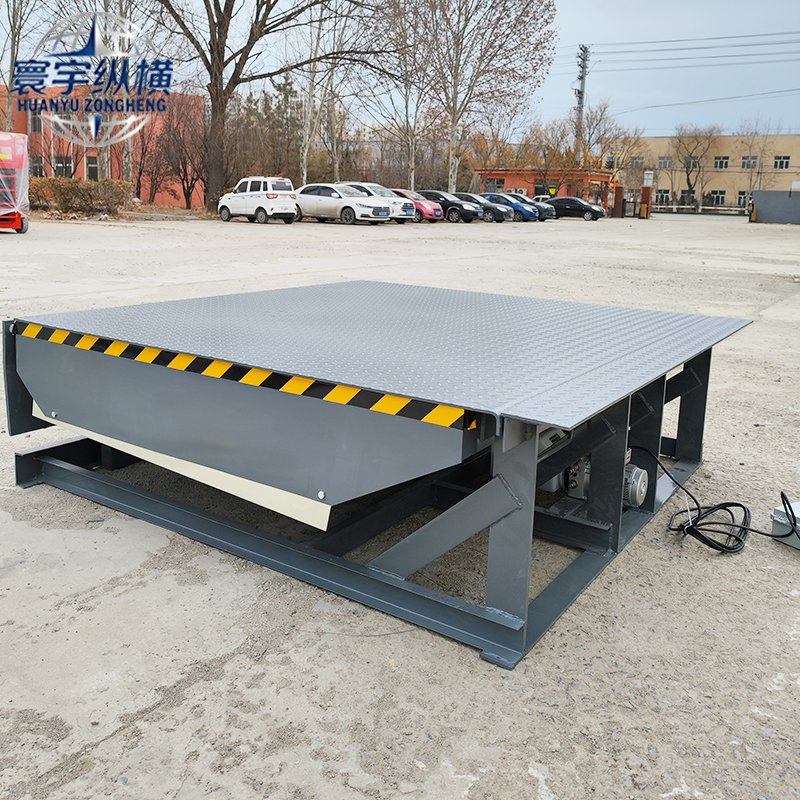

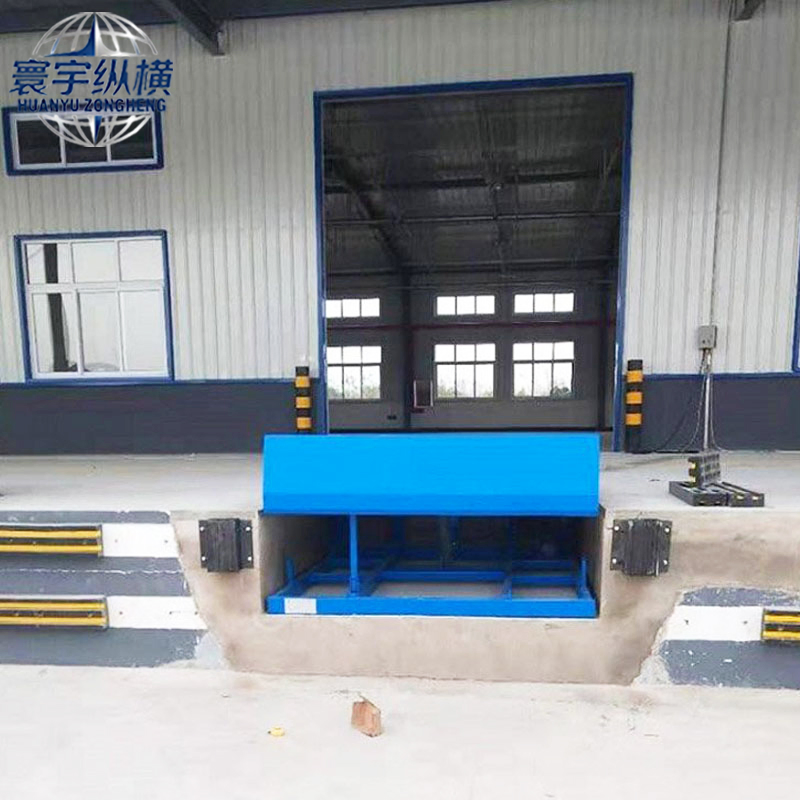

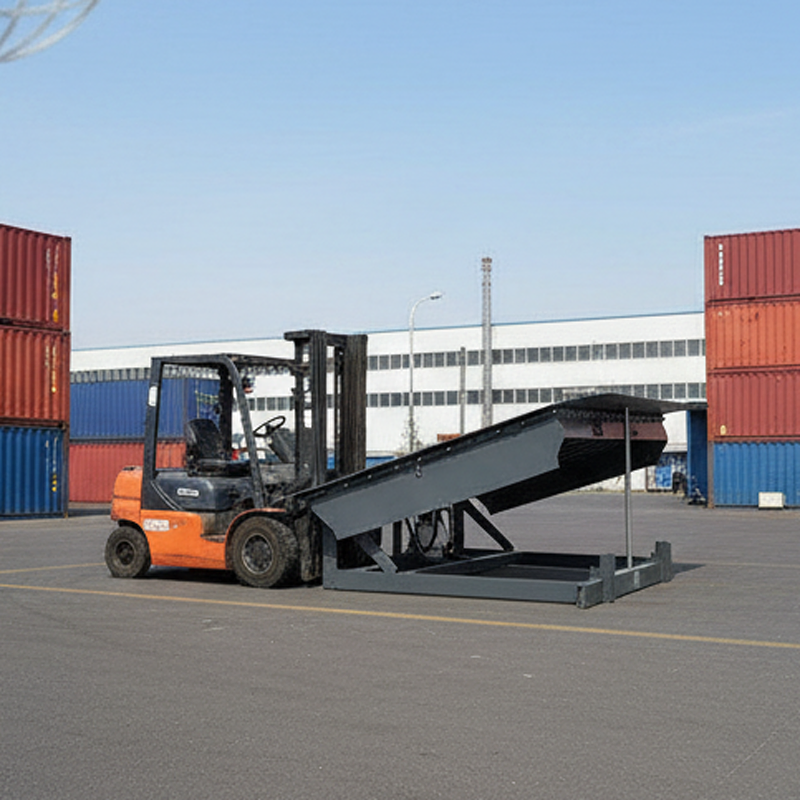

Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Loading docks are equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.
| System | Free maintenance design idea for a long run using application |

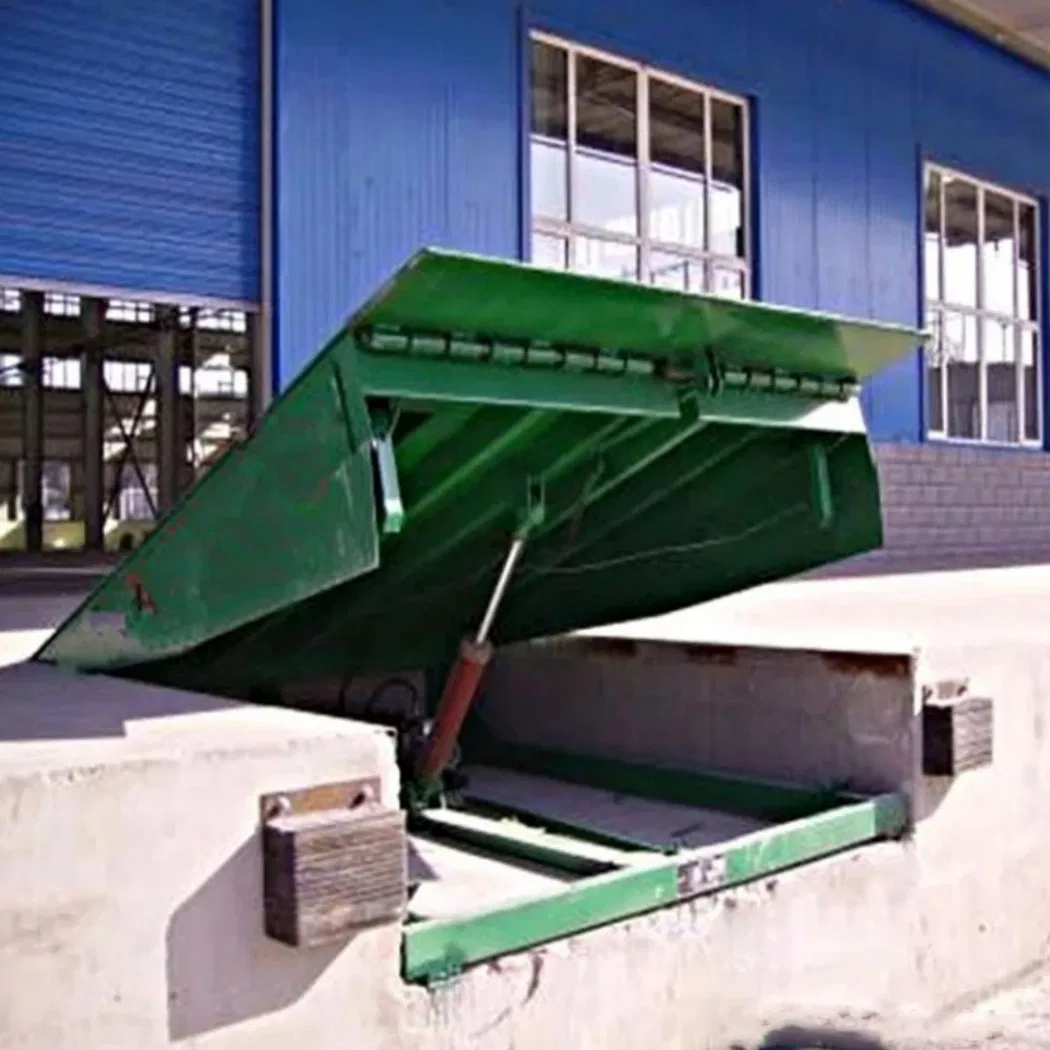

| Design | Hydraulic driving system will lead to the operation of the main deck and lip. Hydraulic Pump, Pipe and Tank are collected in one part under the deck. Hydraulic Velocity fuse make the leveler stopping automatically. |
| Safety | Full range foot guard, penetrating safety support bar, front tubular hinge, and 25mm diameter latch to ensure long-term application without rust. |
| Structure |
• Main dock plate made of 8mm high strength non-slip steel. • Deck plate adopts 8 Channels Unique 14# I-beam steel. • 15mm thickness extension lip plate. • Double wire mesh construction hydraulic oil tube. |

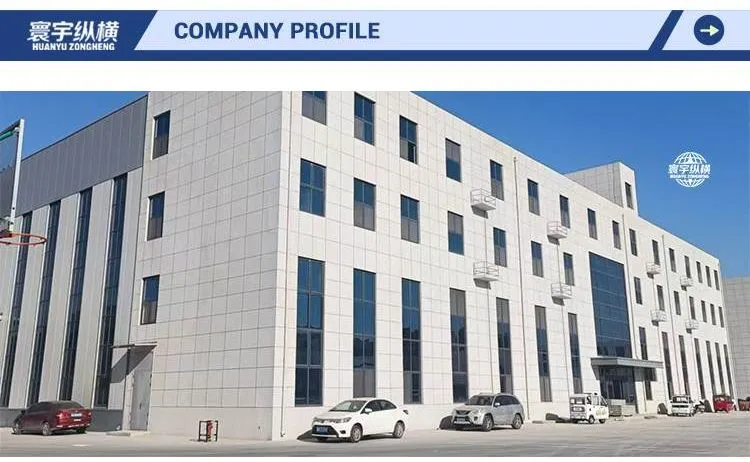

The manufacturing enterprise is located in a specialized production base for lifting platforms. It is a modern technology-based enterprise integrating design, production, sales, installation, and after-sales service. The product portfolio consists of multiple series, mainly including Wrapping Machines, lifting work platforms, and vehicle boarding bridges. The equipment produced has successively obtained ISO system certification, CE safety certification, and multiple national invention patents, complying with international industry standards.
