Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
1 / 5
Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment

Fastlink Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment

Customization: Available
After-sales Service: 2years
Warranty: 1year
Send Inquiry

Product Description

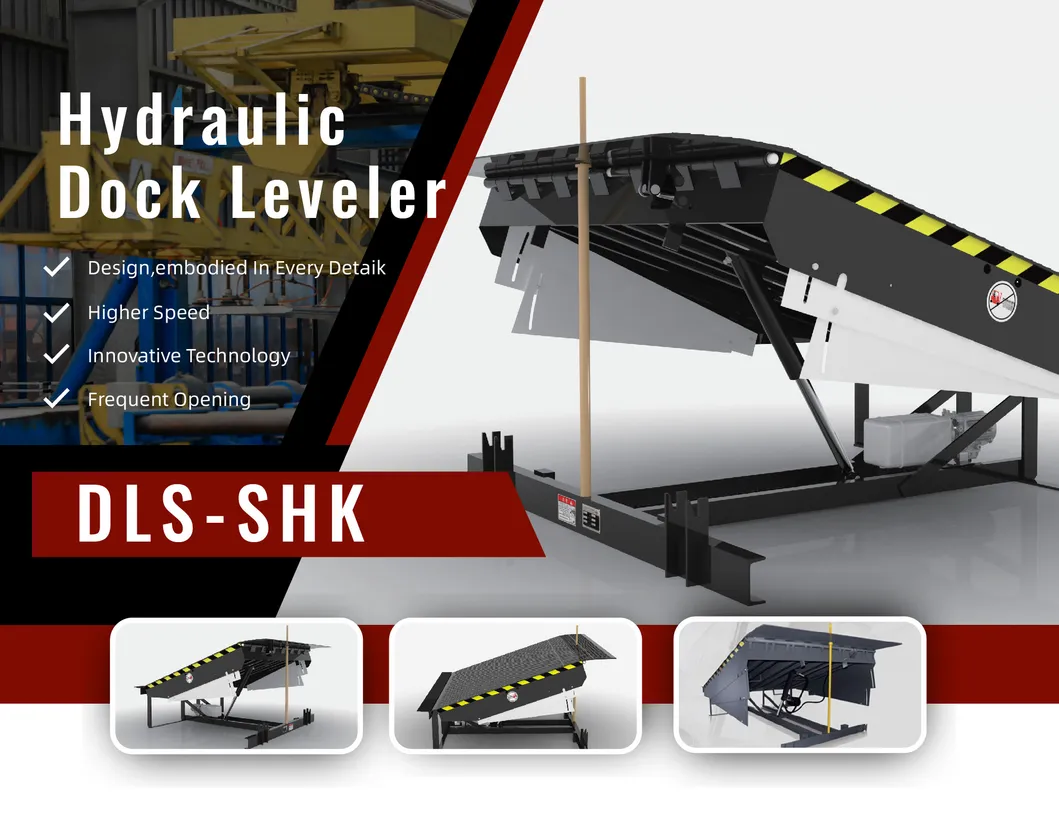

Hydraulic Dock Leveler Equipment

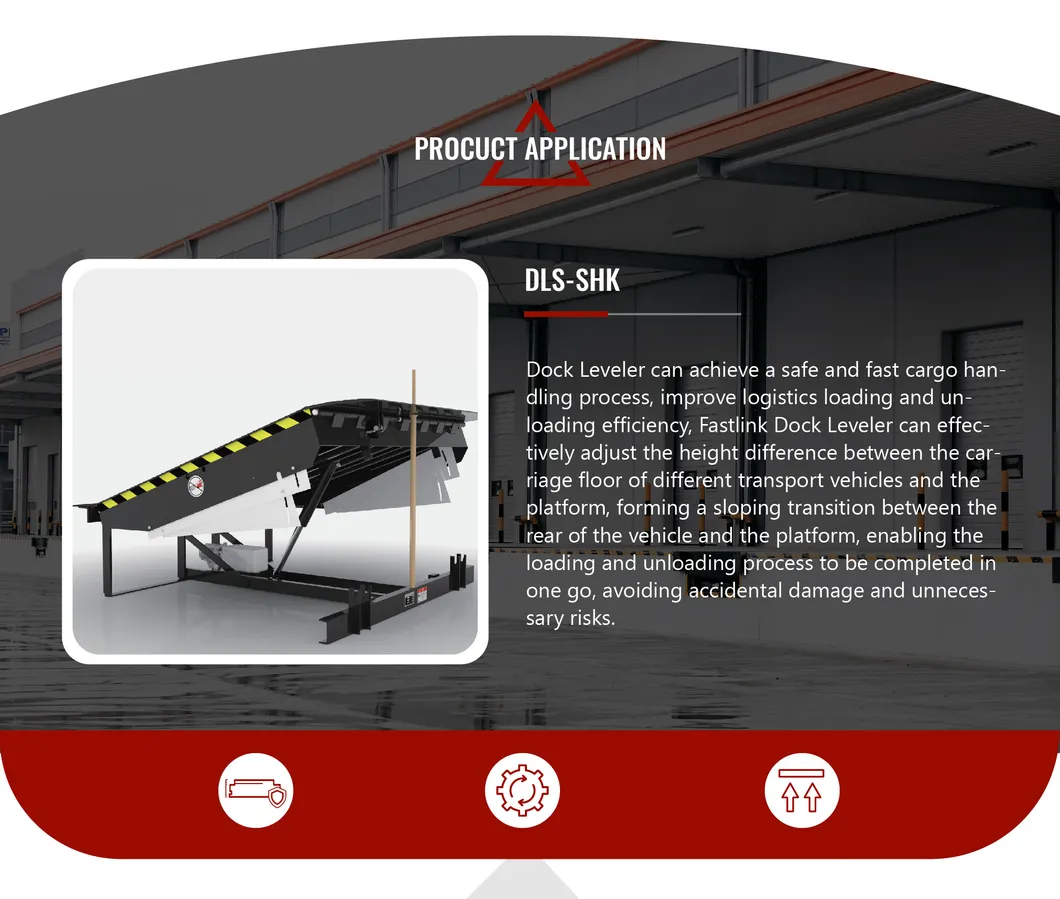

Industrial Steel Vertical Storing
Basic Specifications
Model
DLS-SHK
Mechanism
Hydraulic
Dynamic Load
6.8t / 10t / 15t
Table Size
W2000mm*L2500mm*H600mm
Opening Mode
Electro-Hydraulic
Certification
CE
Lip Length
400mm
Power
380V, 3Phase, 50Hz
HS Code
8428909090
Origin
China
Product Highlights
🛡️ Intelligent Control

Features fault code display, operation status display, fire linkage, and interlock function for enhanced safety and management.

⚙️ Heavy Duty Deck

Reinforced by 8-10 C-rope steel reinforcements. Substrate thickness of 8mm with high-strength non-slip pattern steel plate.

🛠️ Safety Configuration

Equipped with maintenance support rods and side foot protectors to prevent injury during operation.

Detailed Parameters
Attribute Details
Deck PlateHigh strength non-slip pattern steel plate, 8mm thickness

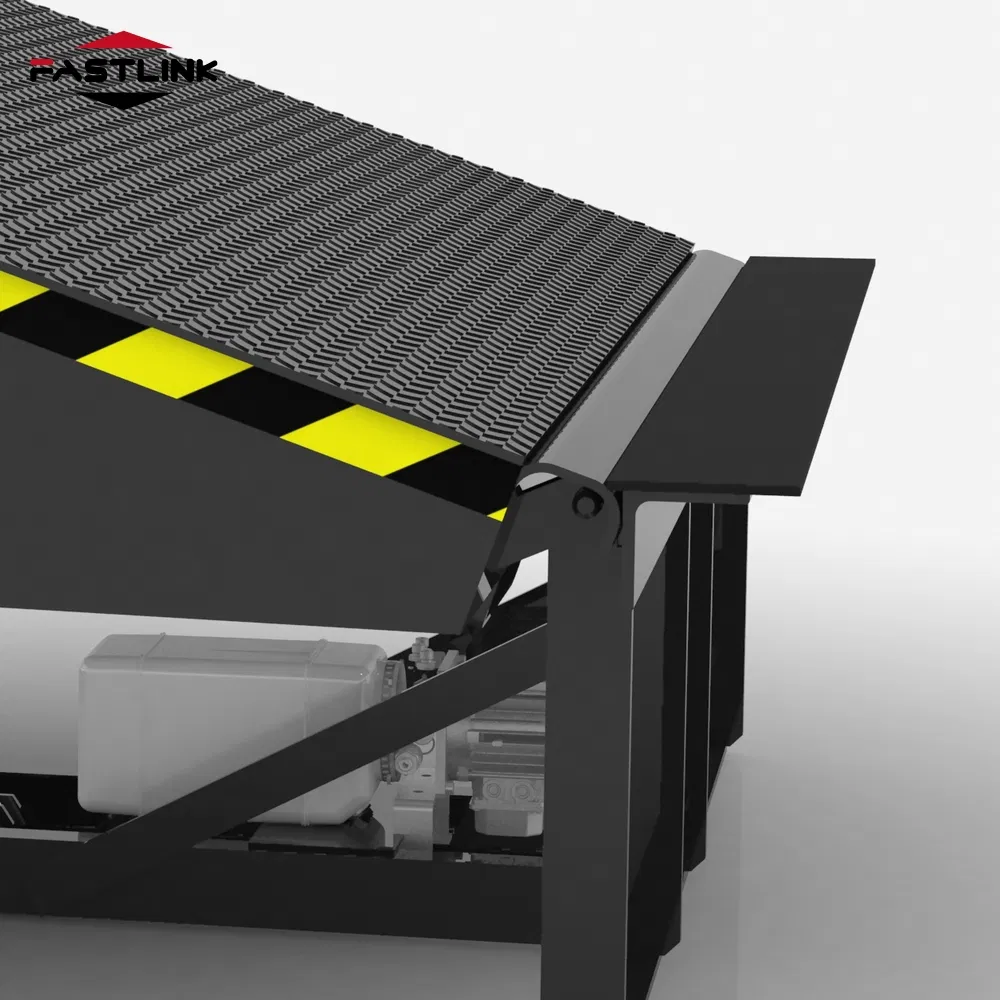

Lip PlateThickness 14/15mm, double 5-degree arch design for smooth transition
Hinge DesignClosed tubular hinges with grease lubrication points

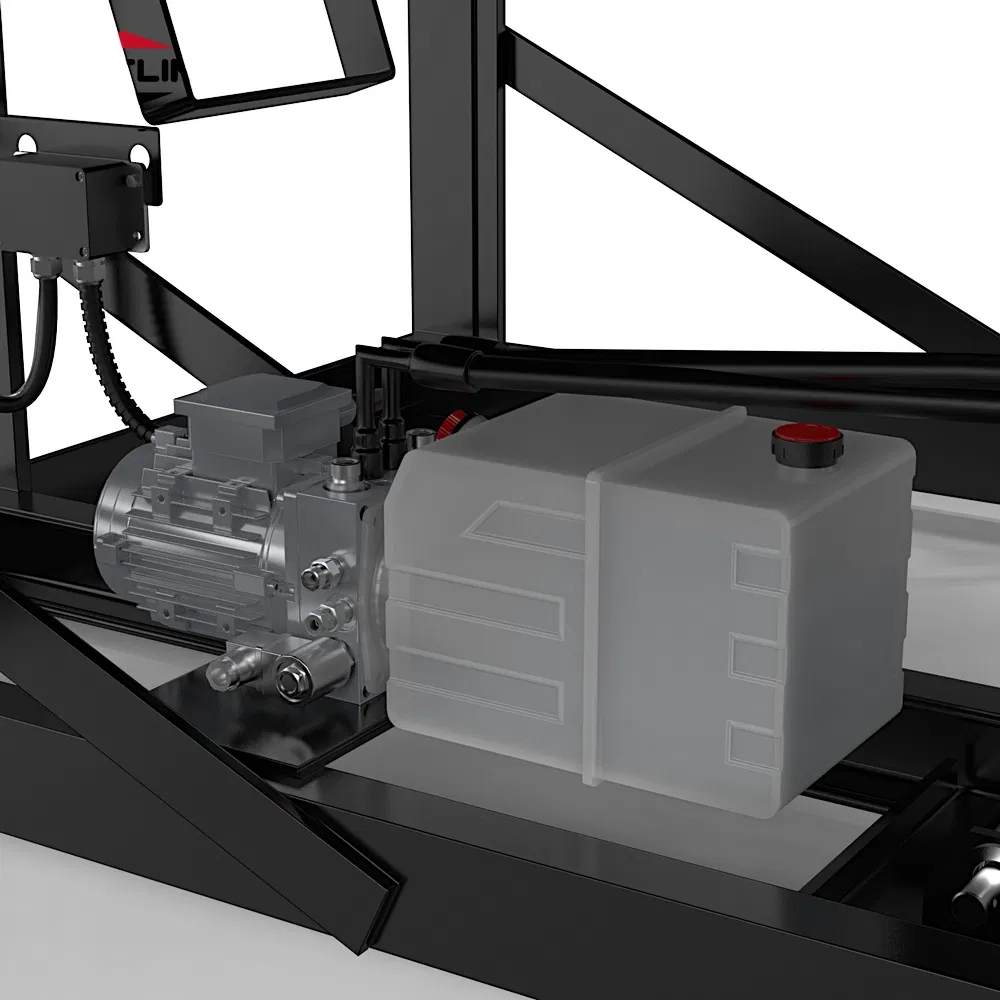

Hydraulic SystemIntegrated hydraulic power unit for tongue and platform control
Arc TransitionPatented design reduces forklift tire wear and cargo damage
Color OptionsRAL9011 (Black), RAL7012 (Gray), RAL5002 (Blue)

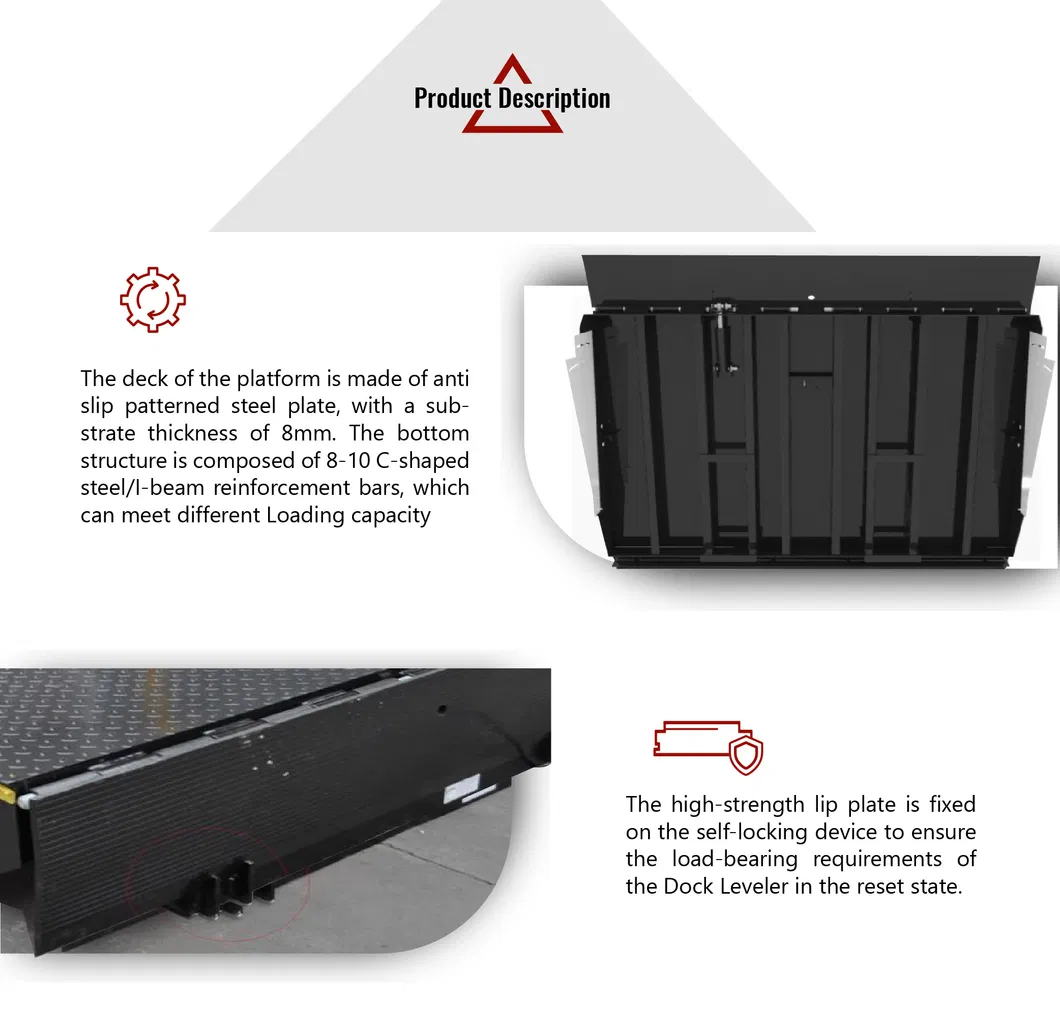

Structural detail 1

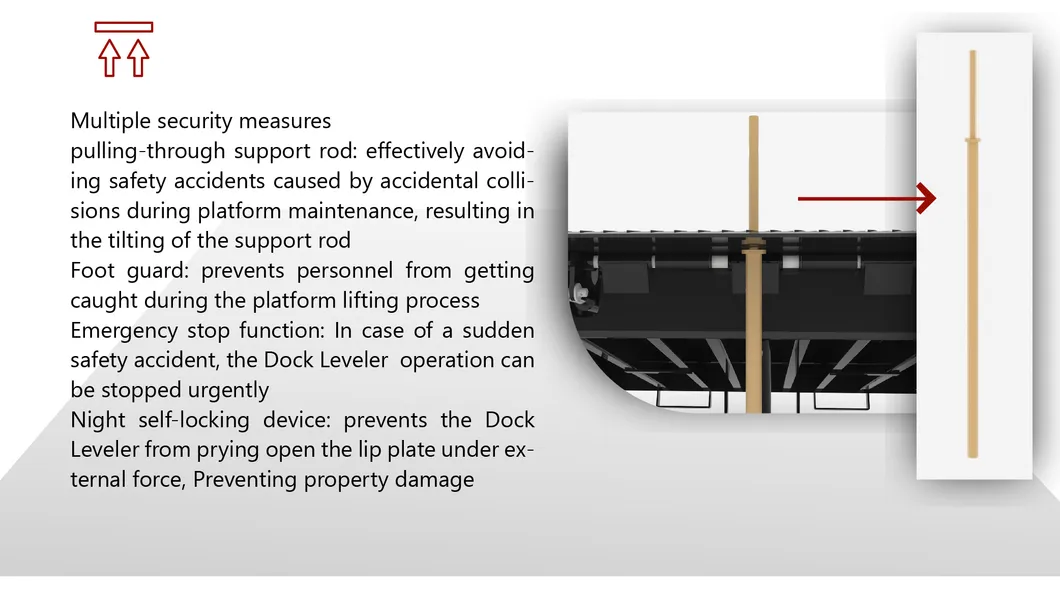

Structural detail 2

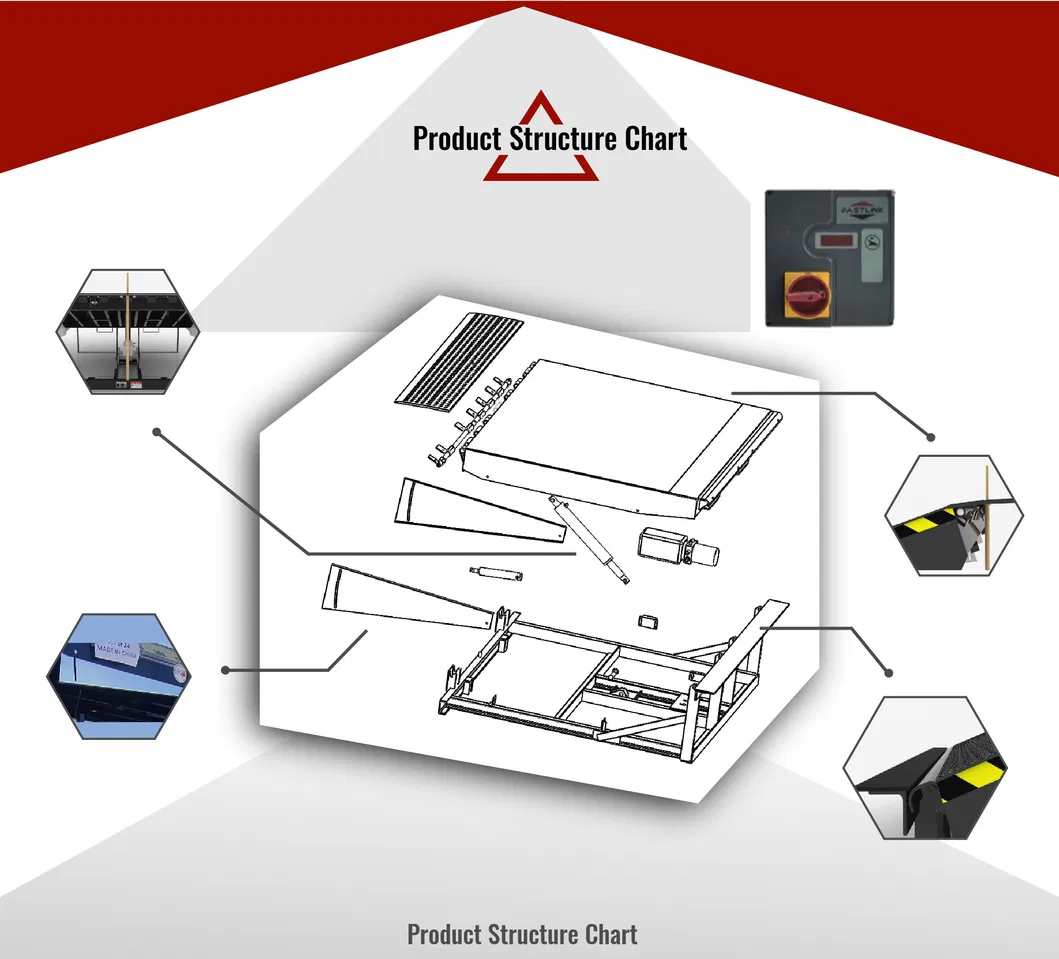

Structural detail 3

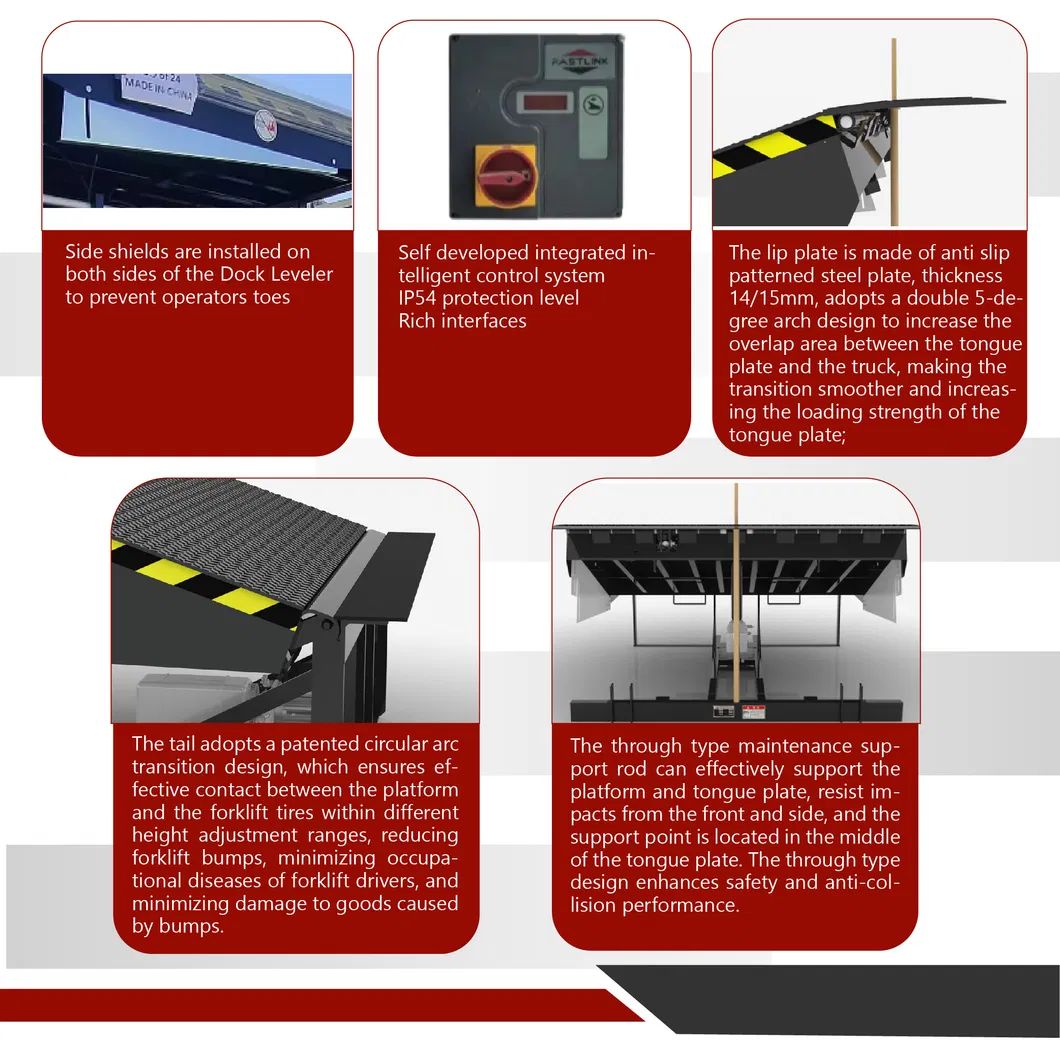

Production process
Assembly line
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
750.000kg
Transport Package
Wooden Box / Pallet
Lead Time
30 Days
Supply Ability
50,000 PCS/Year
Frequently Asked Questions
How to choose the length of the Hydraulic Dock Leveler?
The length depends on the difference between the carriage floor height and the platform height. Formula: Length L = h (height difference) / 0.125.
What sizes are generally selected for this equipment?
The most common size used in industrial applications is W2000mm * L2000mm * H600mm. Custom sizes are also available.
What is the difference between dynamic and static platform loads?
Dynamic load is the maximum combined weight of the forklift and cargo during operation. Static load is the maximum weight of static objects when the platform is in the reset state.
What safety features are included for operators?
It includes side foot protectors to prevent toe injury and penetrating maintenance support bars to effectively support the platform during service.
What are the power requirements and certifications?
The unit operates on 380V, 3Phase, 50Hz and is fully CE certified for industrial use.
How is the intelligent control system beneficial?
The system provides fault code displays and operation status, which allows for fire linkage, interlock functions, and self-safety protection for smarter management.
