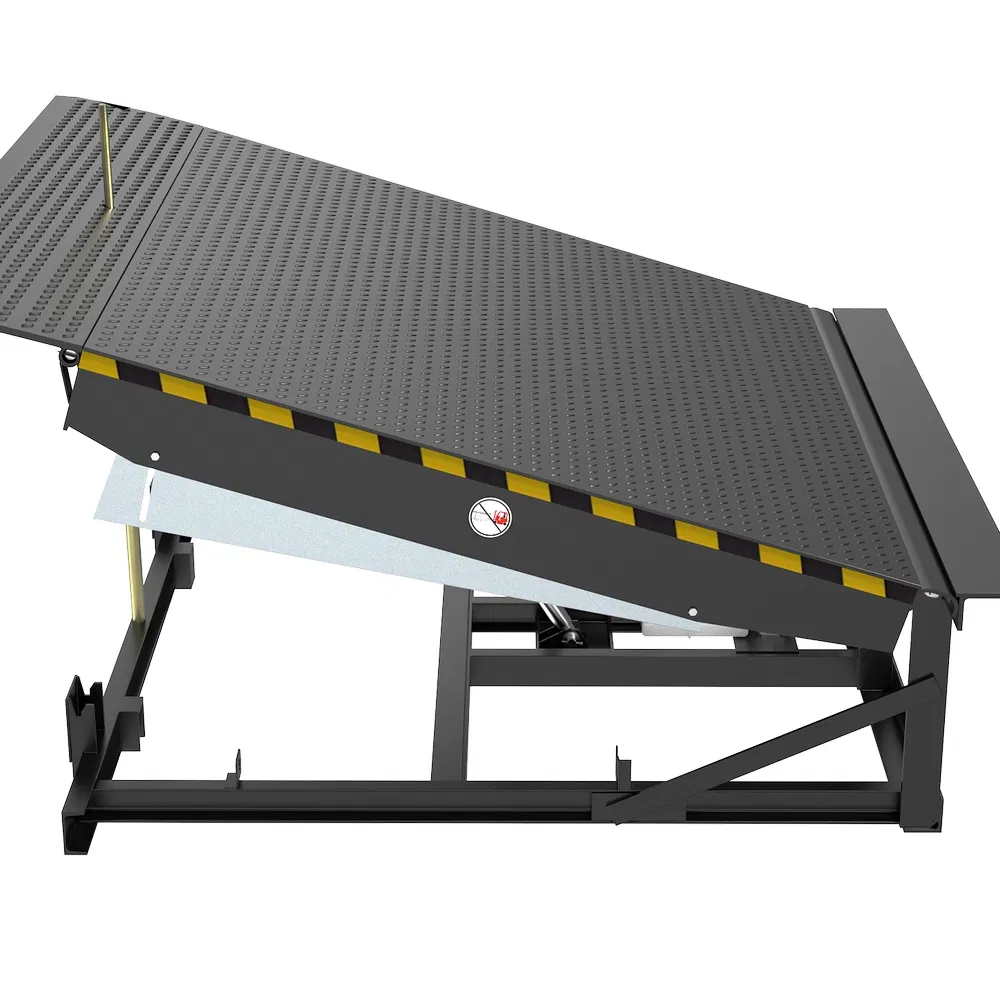

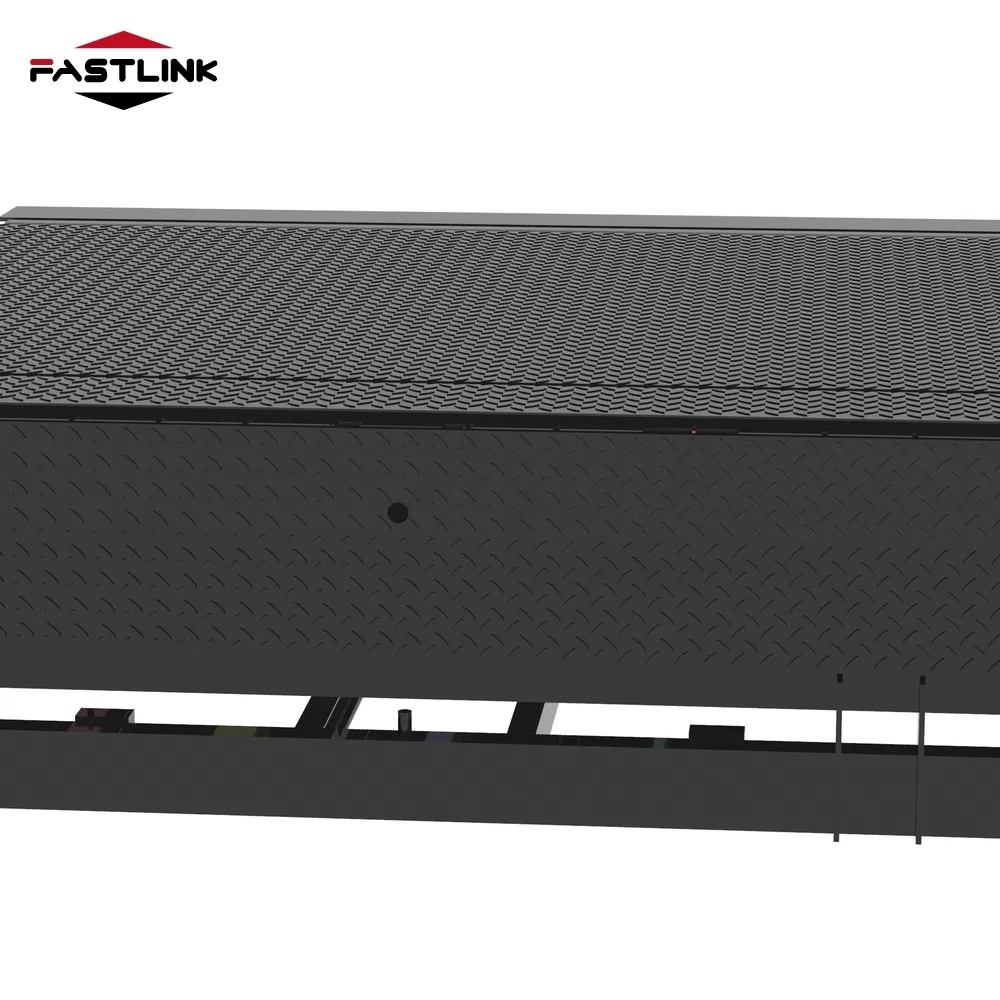

Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler
Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler
Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler
Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler
Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler
1 / 5
Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler
Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler
Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler
Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler
Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler

Industrial Metal Safety Protection Intelligent Stable Vertical Storing Hydraulic Dock Pit Leveler

Customization: Available
After-sales Service: 2years
Warranty: 1year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
DLS-SHK
Application
Workshop Crane, Warehouse Crane
Lift Mechanism
Hydraulic
Driven Type
Hydraulic
Feature
Efficient, Safe and Intelligent Control
Certification
CE
Dynamic Load
6.8t / 10t / 15t
Table Size
W2000mm*L2500mm*H600mm
Opening Mode
Electro-Hydraulic
Lip Length
400mm
Power
380V, 3pH, 50Hz
HS Code
8428909090

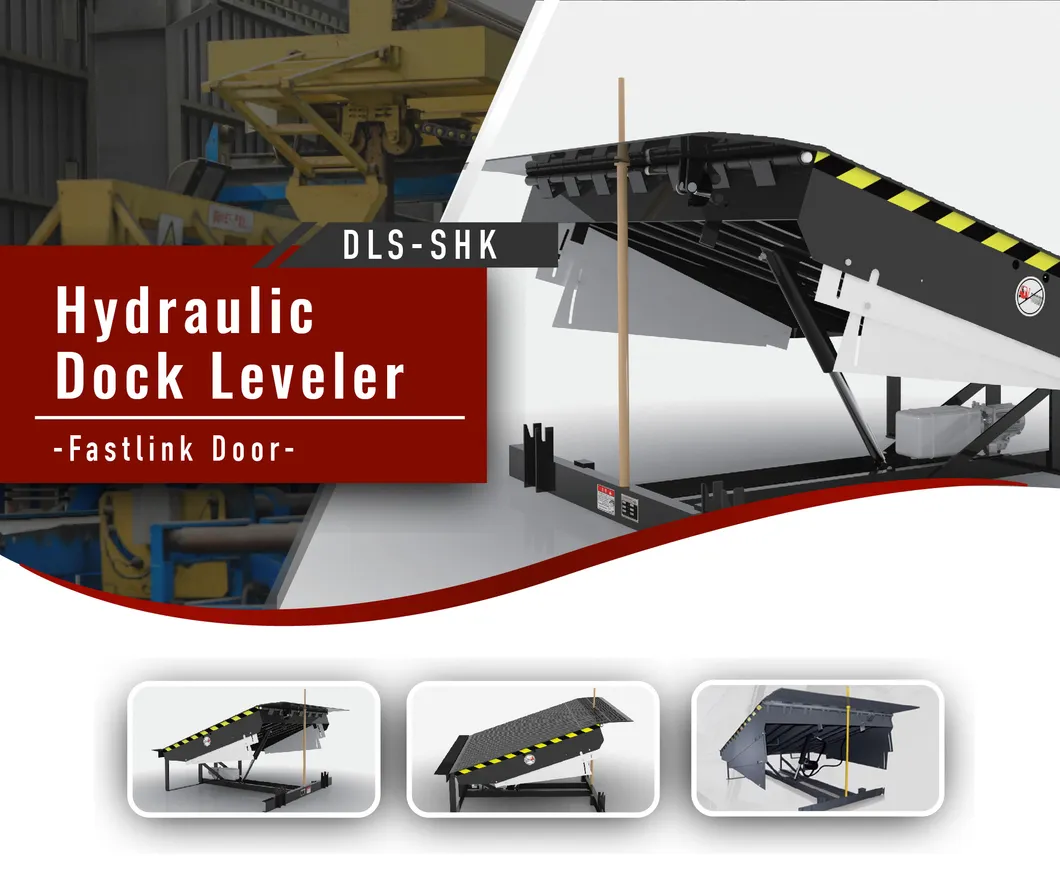

Hydraulic Dock Pit Leveler

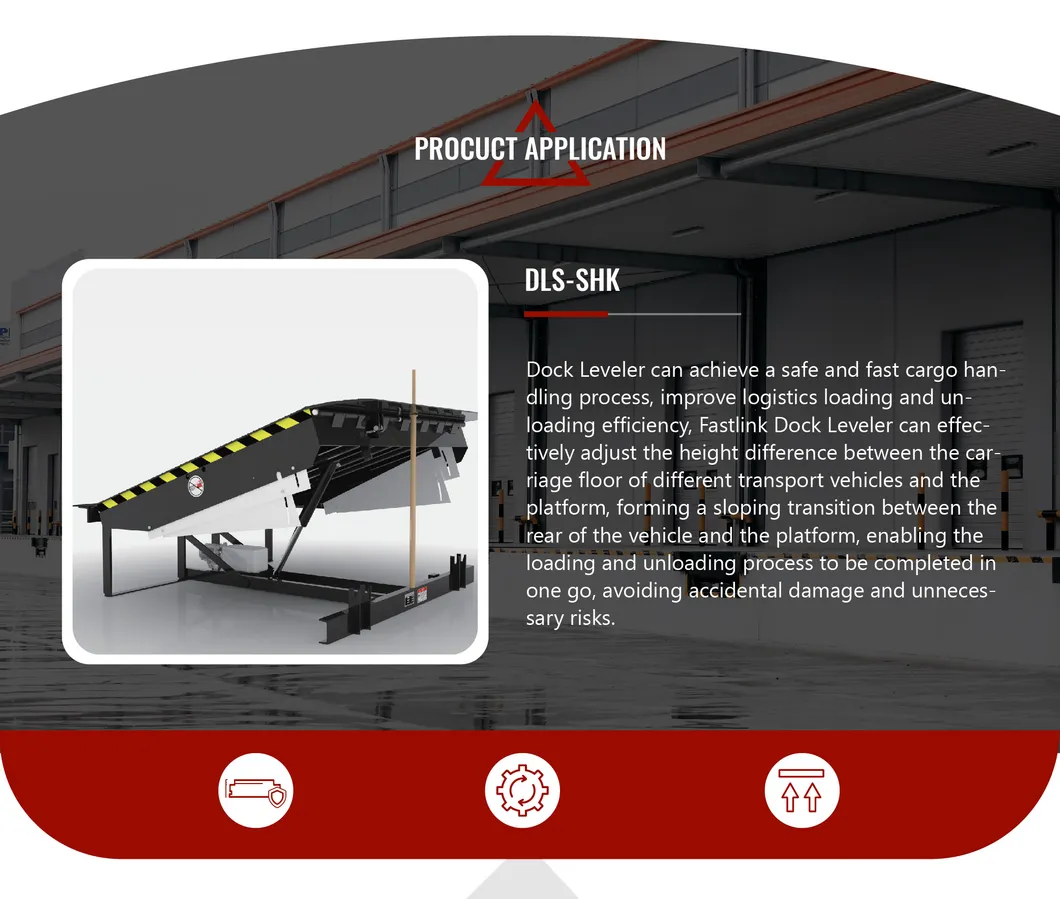

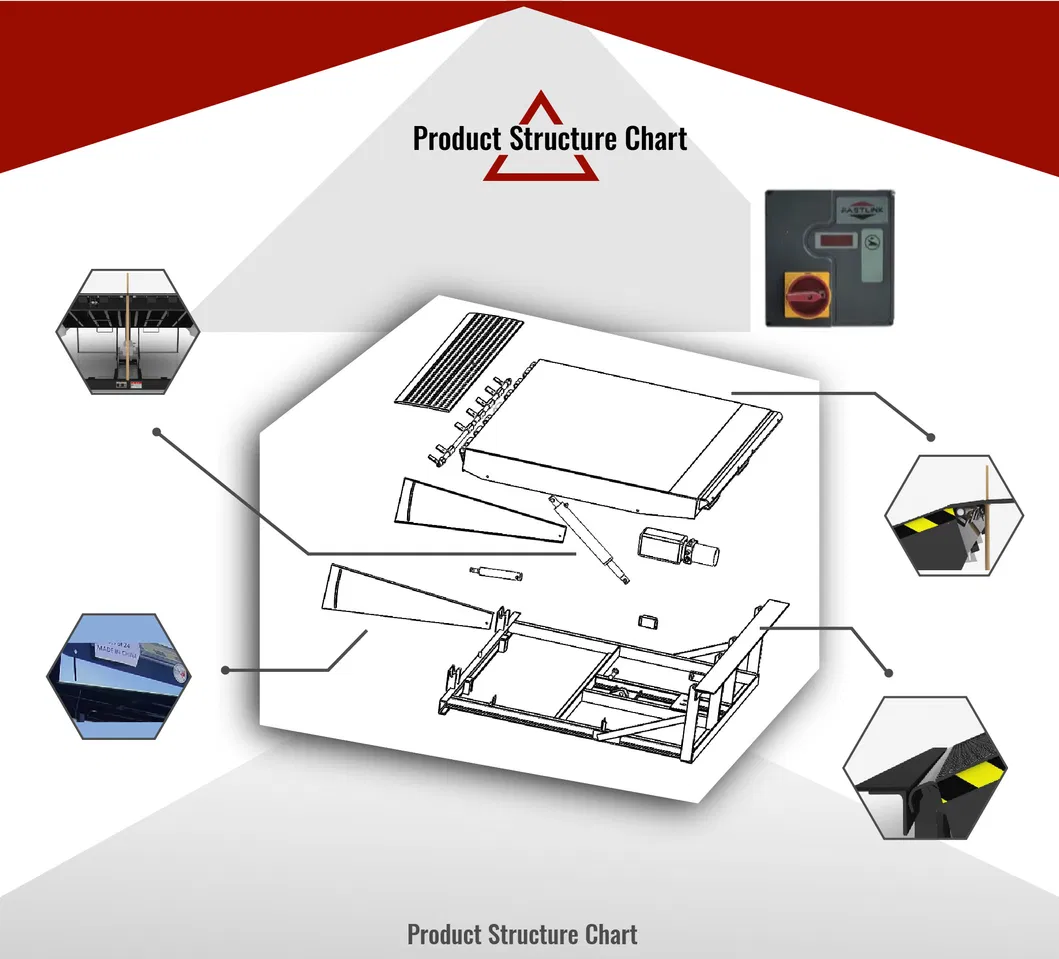

Hydraulic Dock Leveler Structure
✓

Key Product Attributes

Feature Details
MaterialHigh strength steel

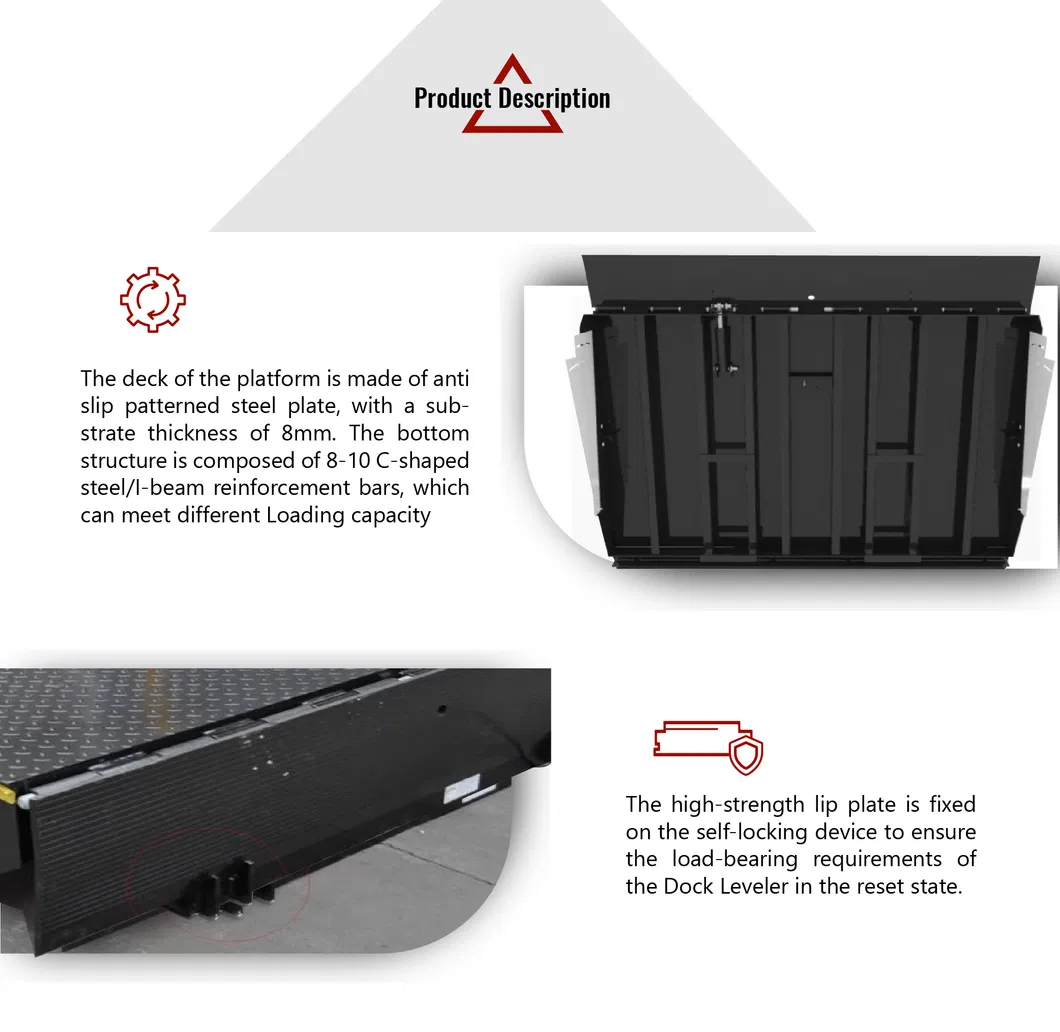

Deck PlateNon-slip pattern steel plate, substrate thickness 8mm

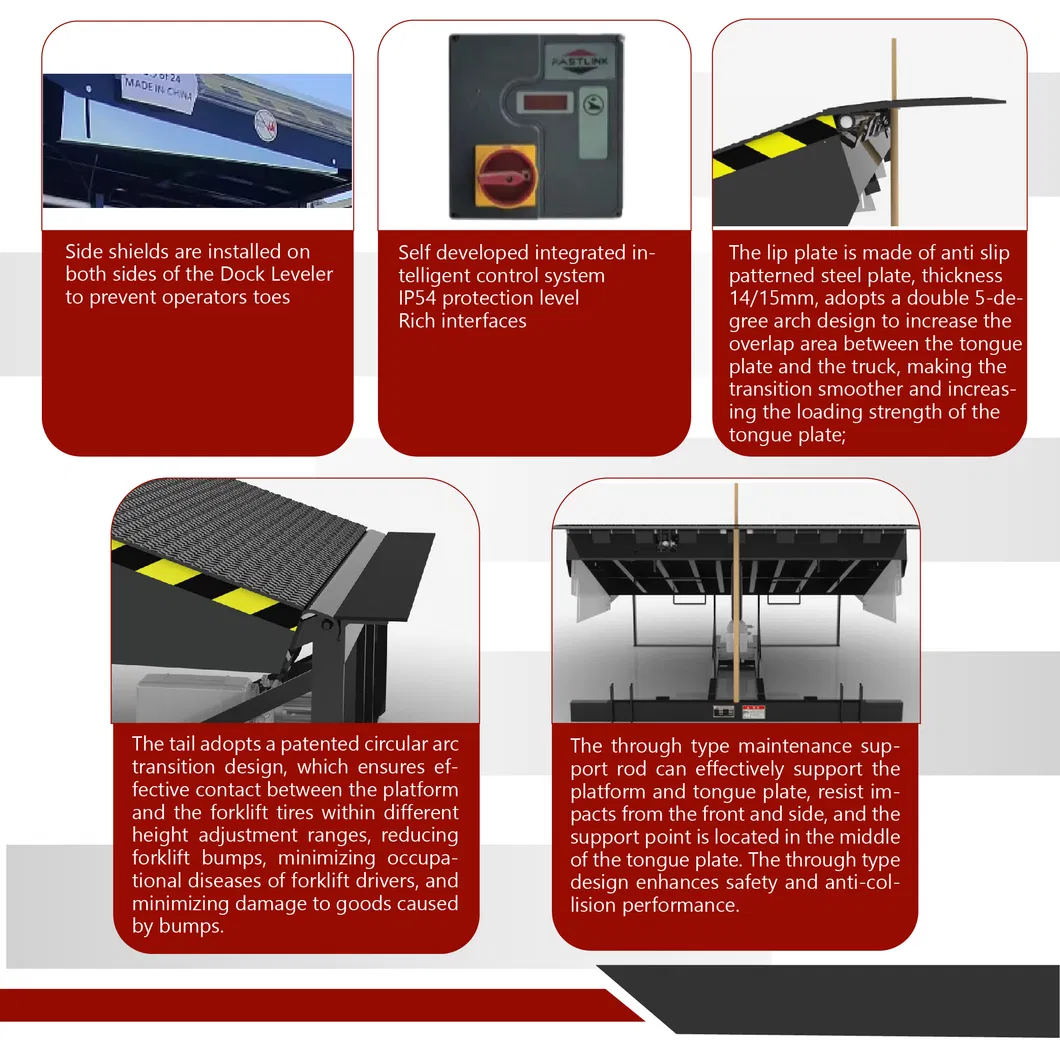

Lip PlateAnti-slip tread steel plate, thickness 14/15mm, double 5-degree arch design
ReinforcementSupported by 8-10 C-rope steel reinforcements

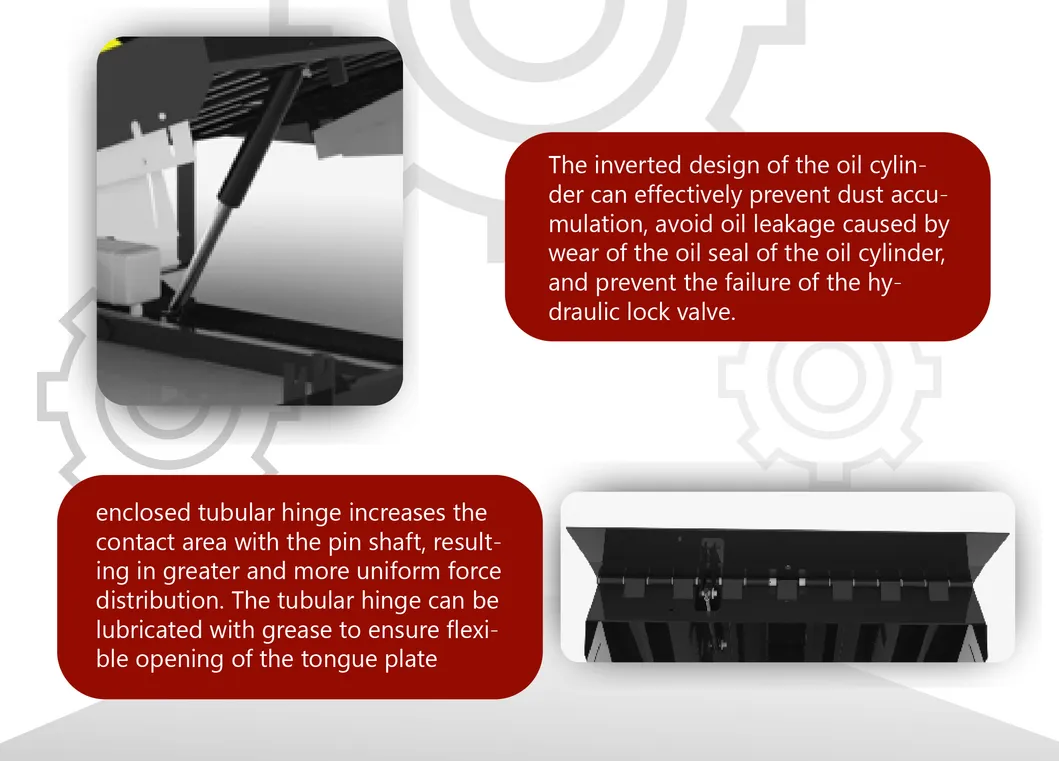

HingesClosed Tubular Hinges with grease lubrication points
Control SystemIntelligent control: fault code display, fire linkage, interlock function

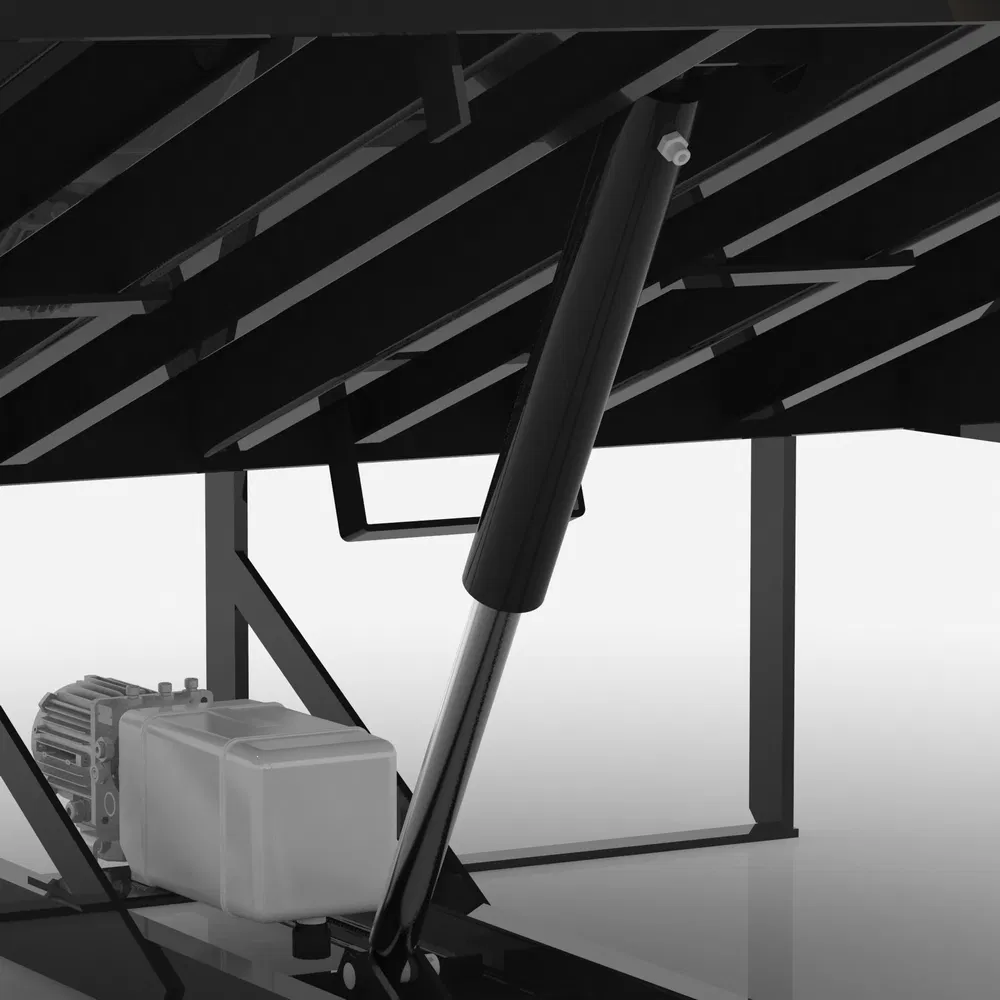

Hydraulic SystemIntegrated hydraulic power unit for reliable operation

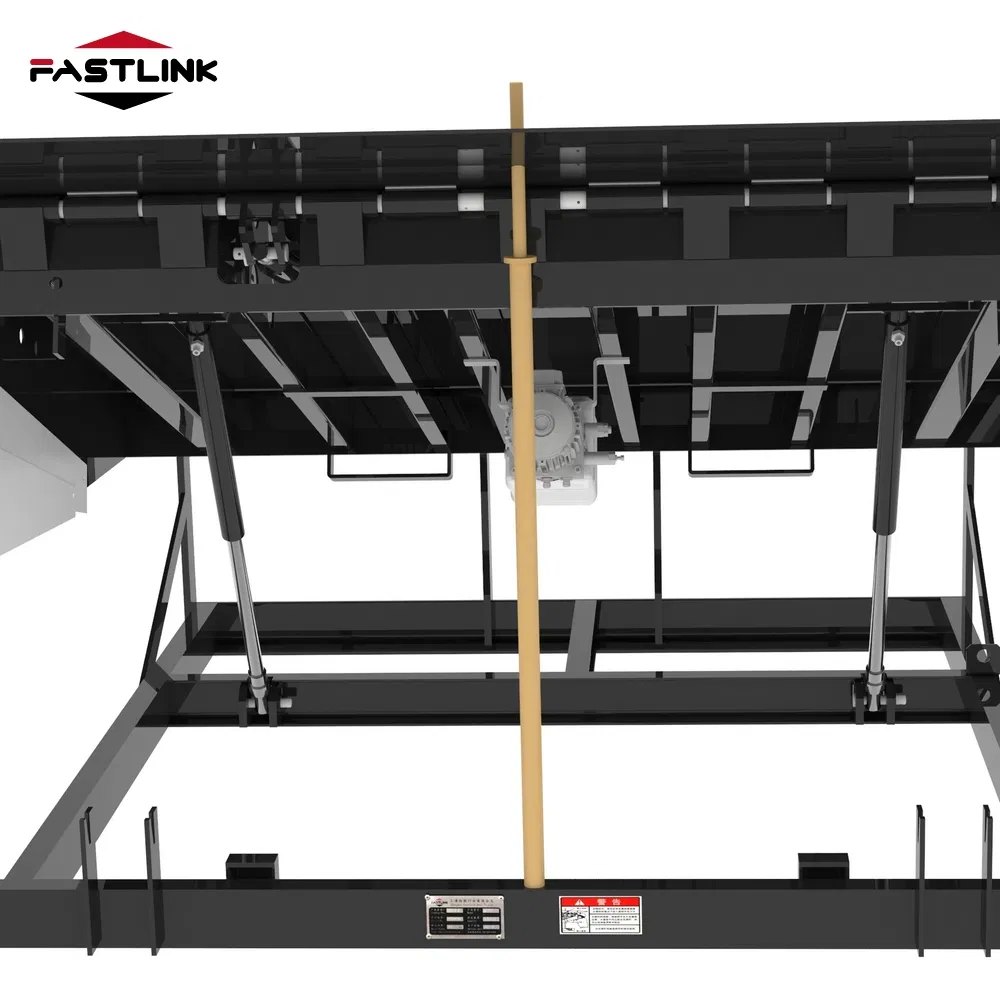

Safety ConfigurationMaintenance support rods and side foot protectors
⚙

Advanced Manufacturing

Our production process utilizes imported full-automatic laser machines and full-automatic platform welding assembly lines to ensure precision. The electrical components follow a modularized production line for high efficiency and quality control.

Manufacturing Process
Assembly Line
Quality Inspection
◈

Solutions & Support

Design Plans
Product Solution Drawings
Installation
Instruction videos and manuals provided
After-Sales
Remote service and quick response
Warranty
1 Year
Solution Reference 1
Solution Reference 2
📦

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
750.00kg
Supply Ability
2000 sets / month
Transport
Wooden Box / Pallet
Packaging Detail 1
Packaging Detail 2

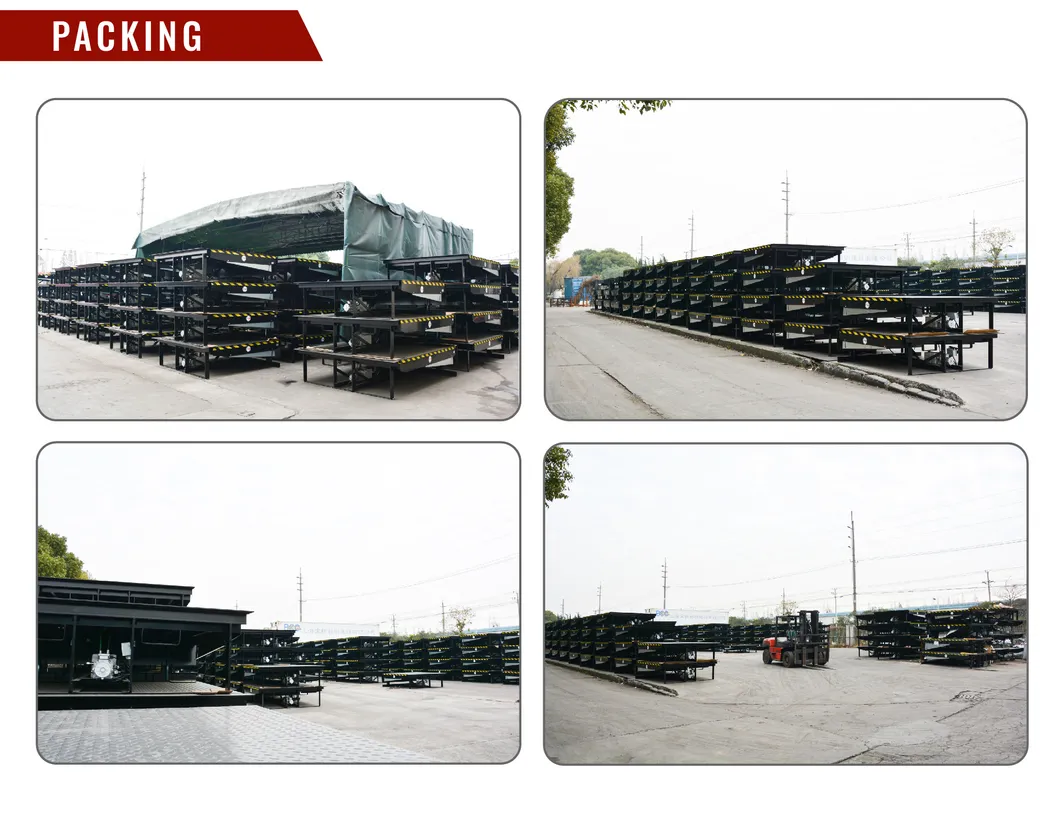

Shipping Preparation
?

Frequently Asked Questions

How to choose the correct length for a Hydraulic Dock Leveler?
The length depends on the height difference between the carriage floor and the platform. A general formula is: Platform length L = height difference (h) / 0.125.
What are the common sizes available for this model?
The standard common size for the hydraulic dock leveler is W2000mm * L2000mm * H600mm, though customized sizes are available.
What is the difference between dynamic and static platform loads?
Dynamic load is the maximum combined weight of the forklift and cargo during operation. Static load is the maximum weight of static objects placed on the platform in its reset state.
What safety features are integrated into the deck design?

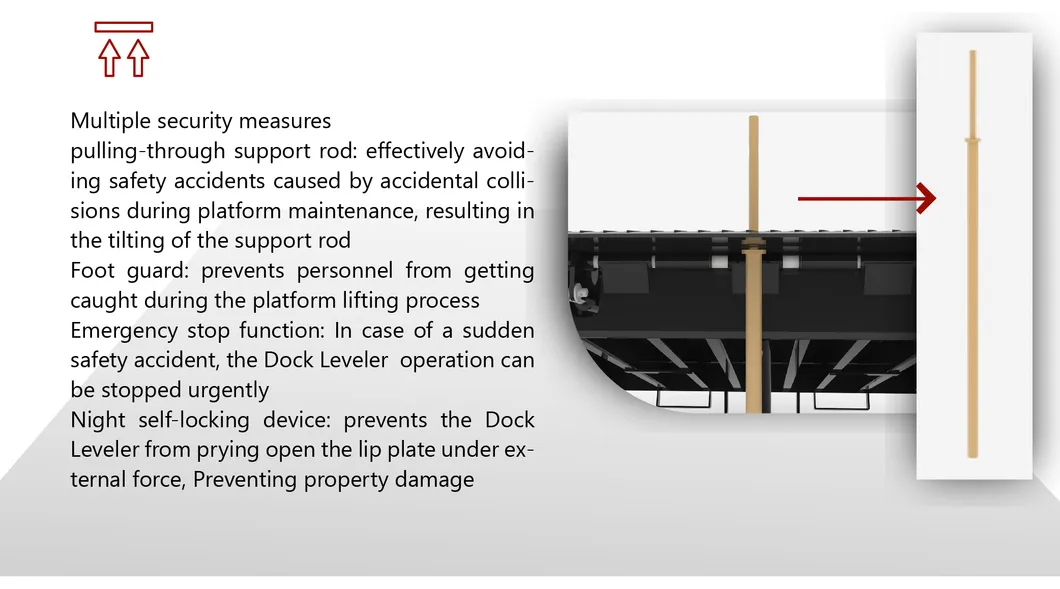

The system includes side foot protectors to prevent injuries and penetrating maintenance support bars that effectively support the platform and tongue during maintenance.
What makes the lip plate design more efficient?
The lip plate features a double 5-degree arch design which increases the lap area between the lip and the carriage, ensuring a smoother transition for forklift trucks.
How is the deck structure reinforced for heavy usage?
The deck is reinforced with 8-10 C-rope steel reinforcements to maintain resilience and provide optimal support under load.
