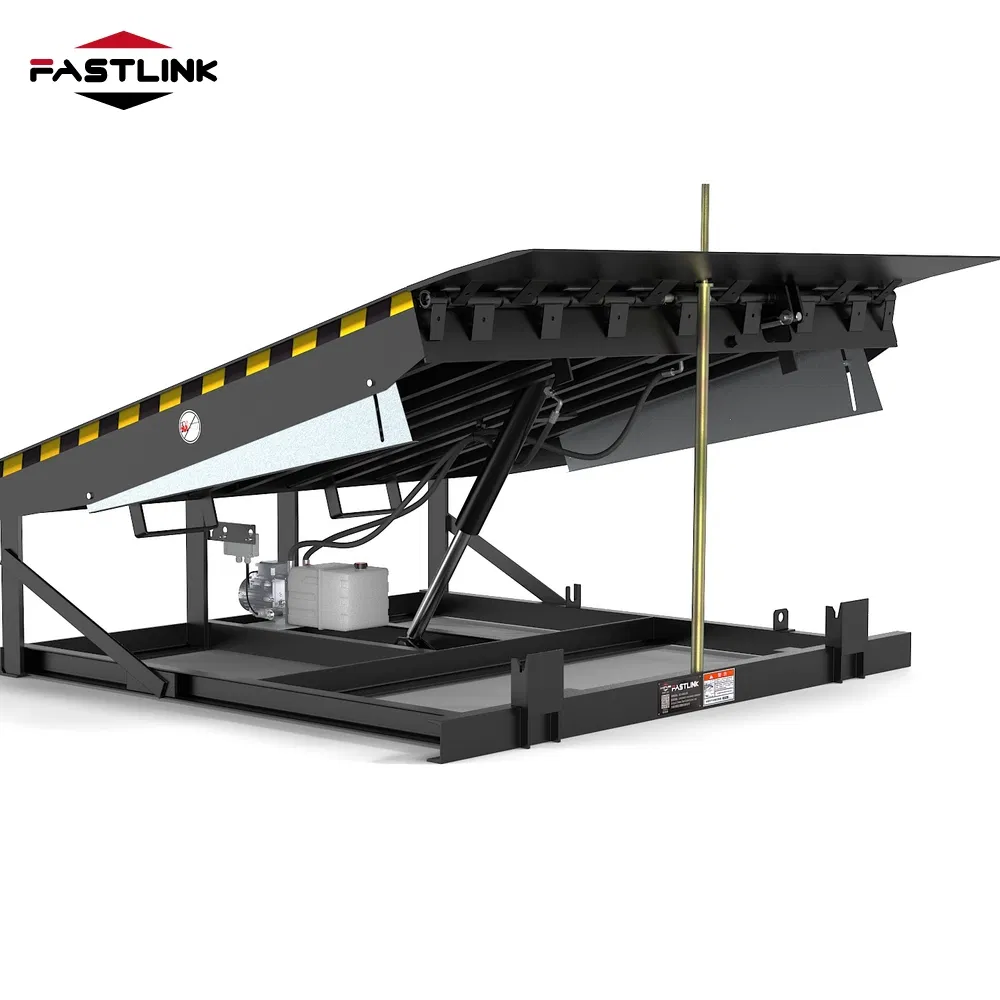

Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
1 / 5
Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment
Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment

Fastlink Manufacturer Wholesale Industrial Steel Vertical Storing Secure Scissor Lift Hydraulic Dock Leveler Equipment

Customization: Available
After-sales Service: 2years
Warranty: 1year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
DLS-SHK
Application
Workshop/Warehouse Crane
Lift Mechanism
Hydraulic
Dynamic Load
6.8t / 10t / 15t
Driven Type
Hydraulic
Certification
CE
Table Size
W2000mm*L2500mm*H600mm
Opening Mode
Electro-Hydraulic
Lip Length
400mm
Power
380V 3pH, 50Hz
HS Code
8428909090
Production Capacity
50000 PCS/Year
★

Product Description

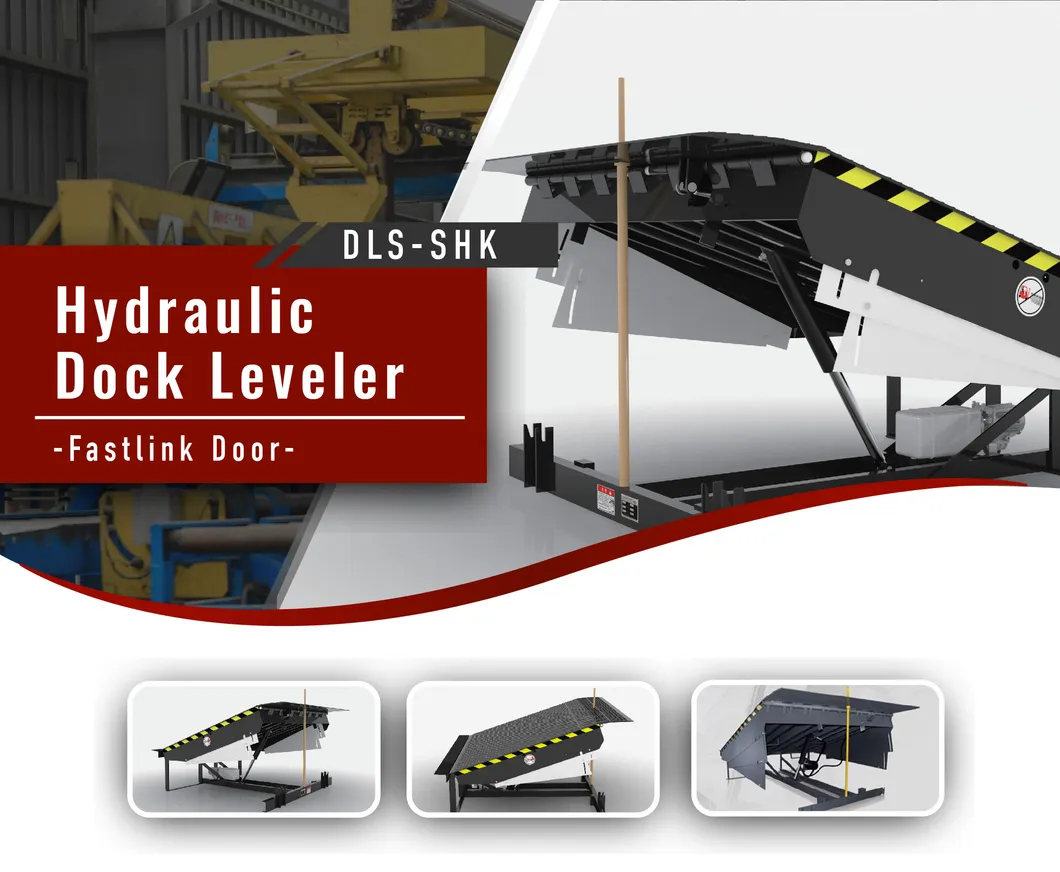

Industrial Steel Vertical Storing Scissor Lift Hydraulic Dock Leveler

Key Features: Efficient, safe and intelligent control designed for industrial plants, logistics, and warehousing buildings. The dock leveler utilizes an integrated hydraulic power unit for reliable operation and low maintenance.

Technical Attributes

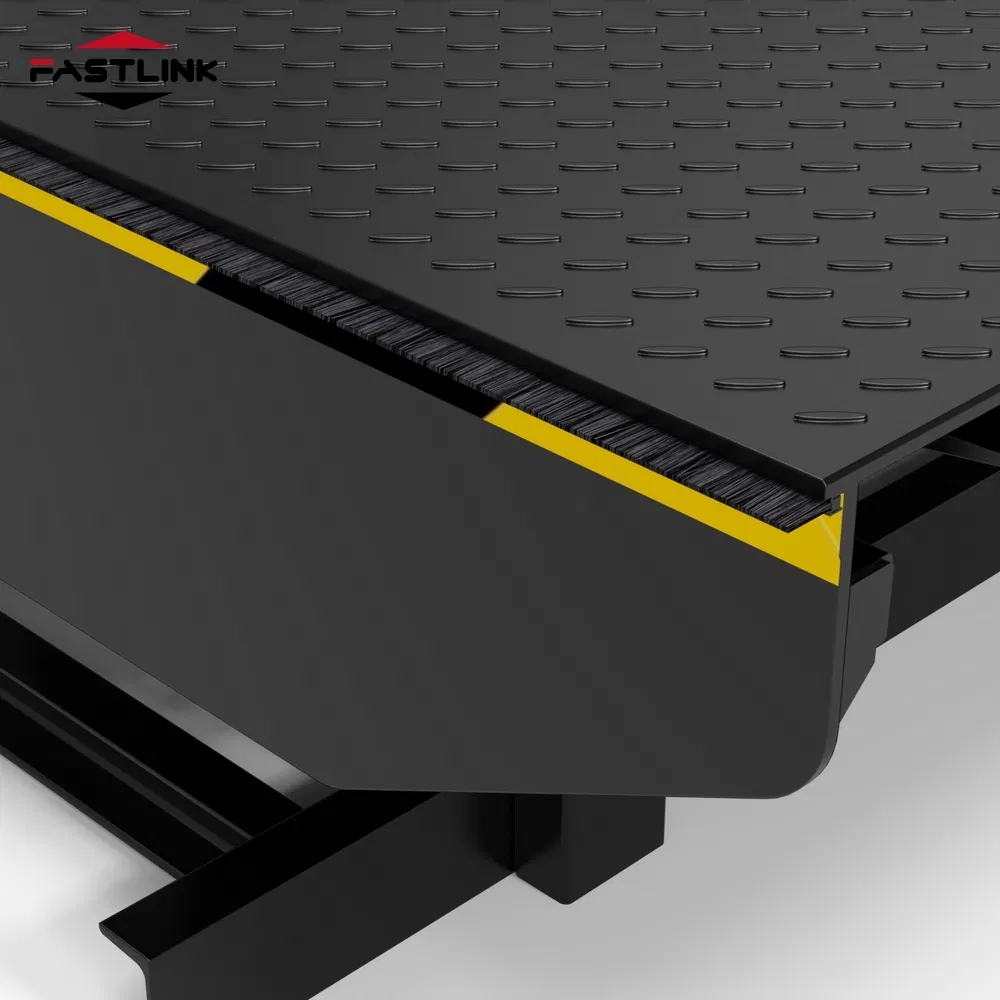

Deck PlateHigh strength non-slip pattern steel plate, substrate thickness 8mm
Lip PlateThickness 14/15mm, double 5-degree arch design for better lap area
StructureReinforced by 8-10 C-rope steel reinforcements for optimal support

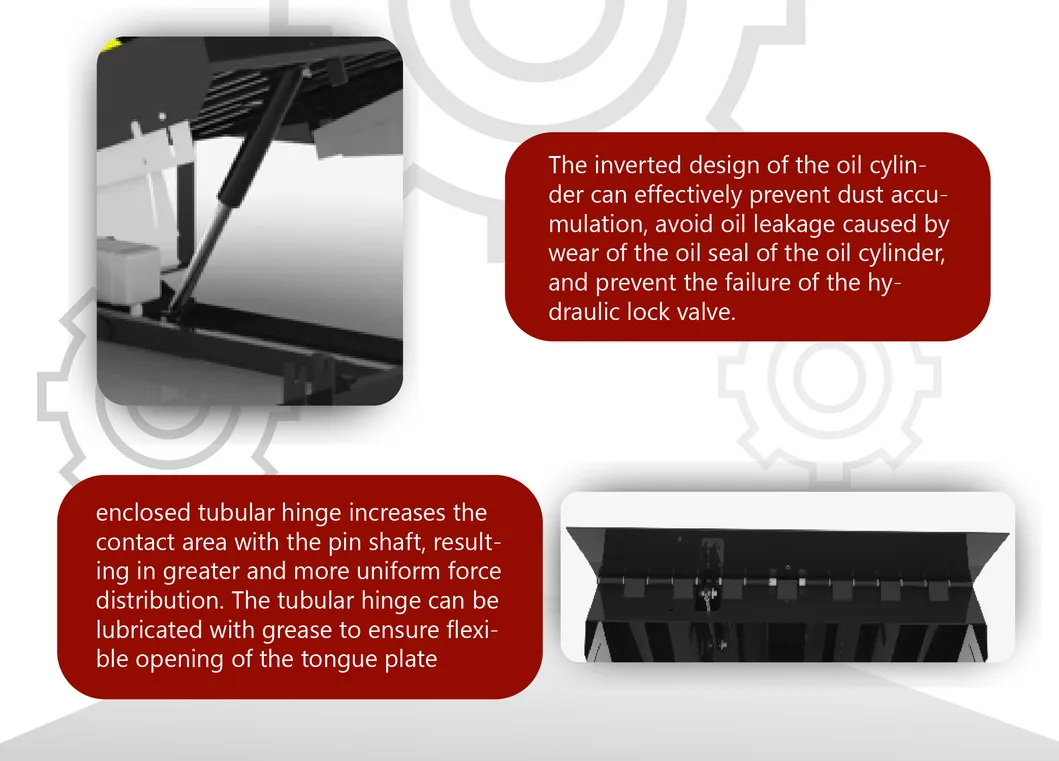

HingesClosed tubular hinge design for uniform force and flexible opening
Control SystemIntelligent control with fault code display and operation status
📷

Visual Display

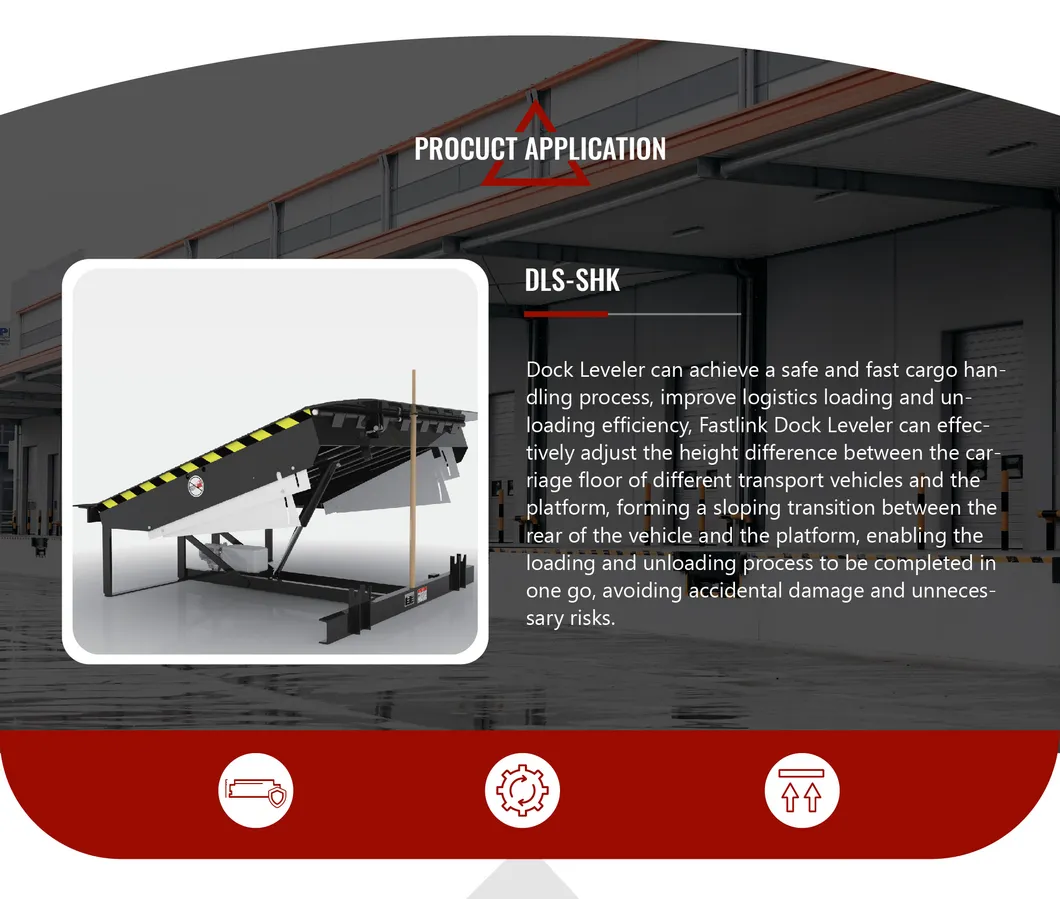

Dock Leveler Detail 1

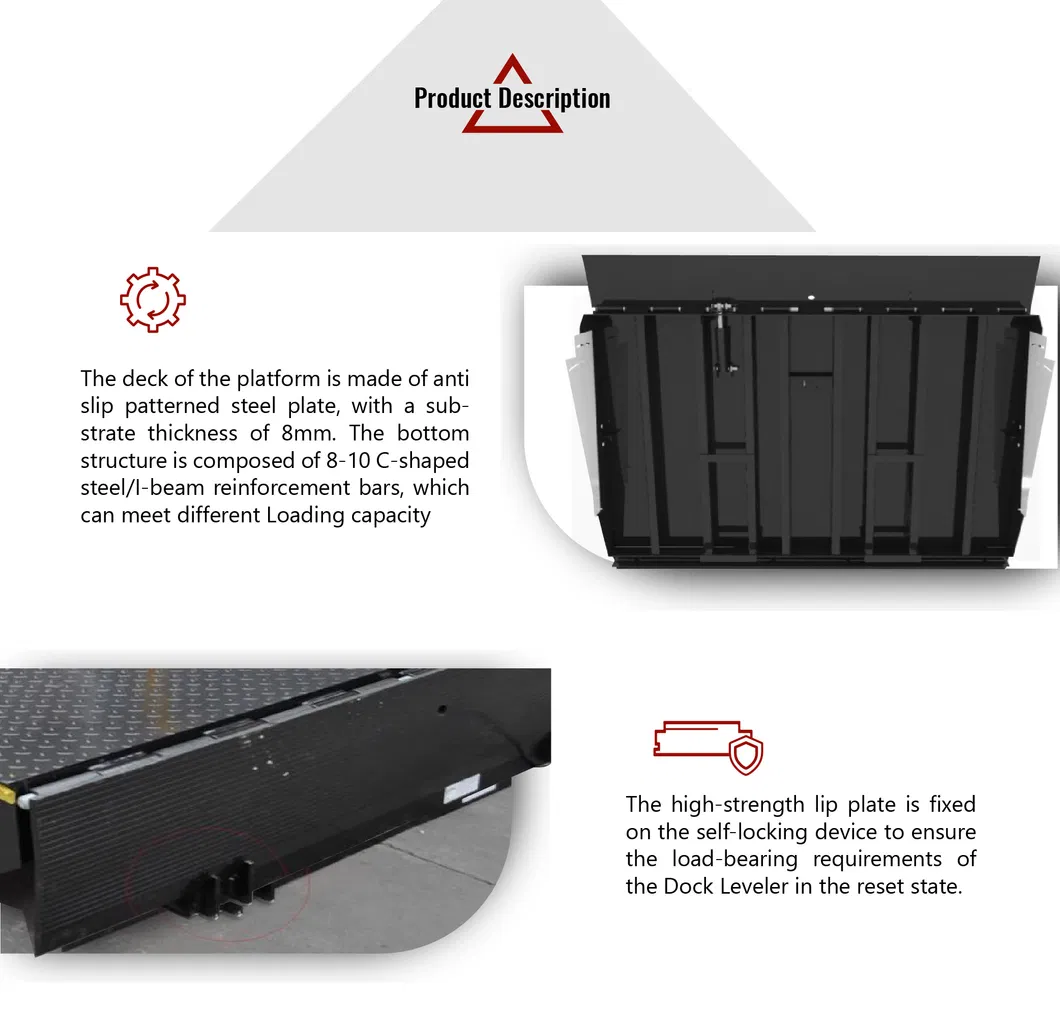

Dock Leveler Detail 2

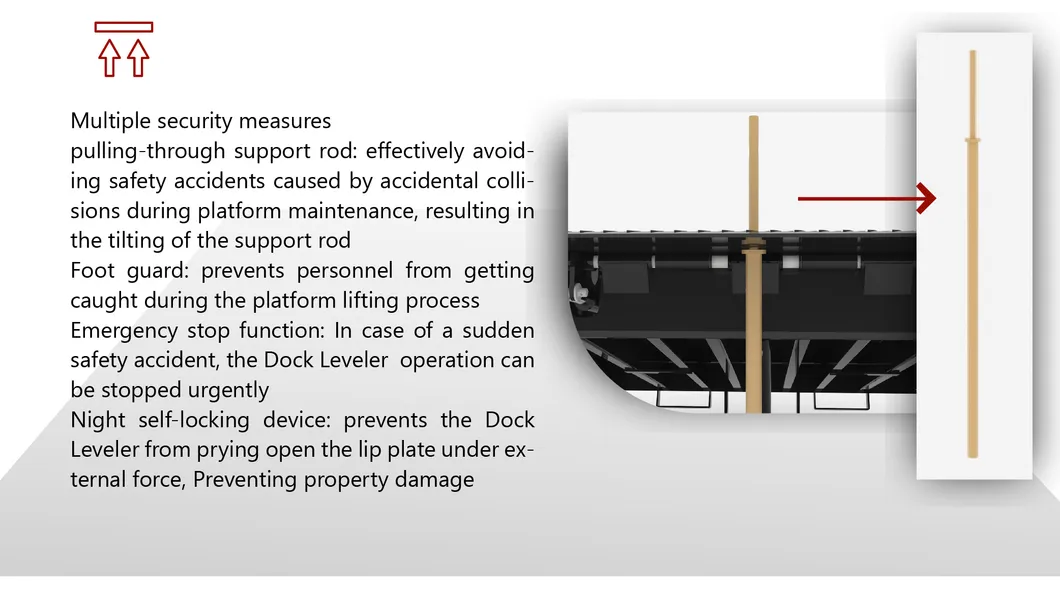

Dock Leveler Detail 3

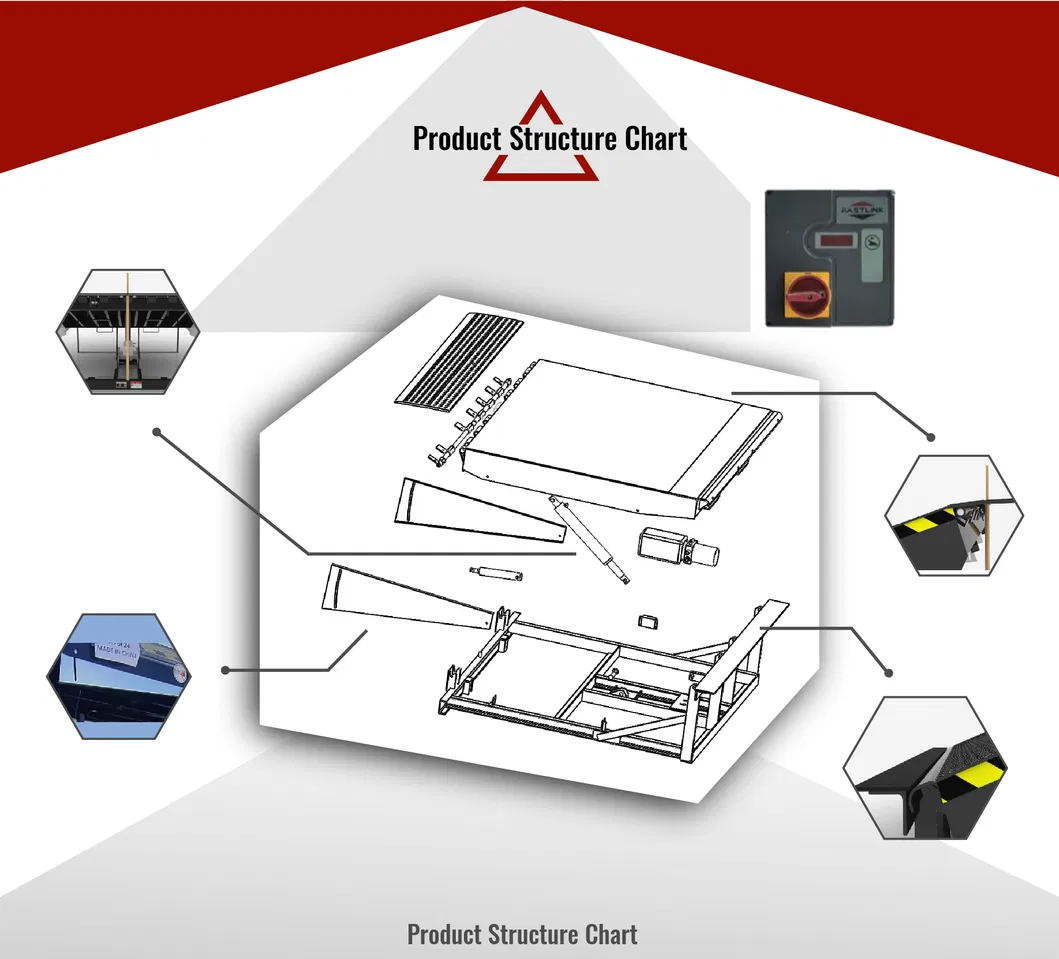

Dock Leveler Detail 4

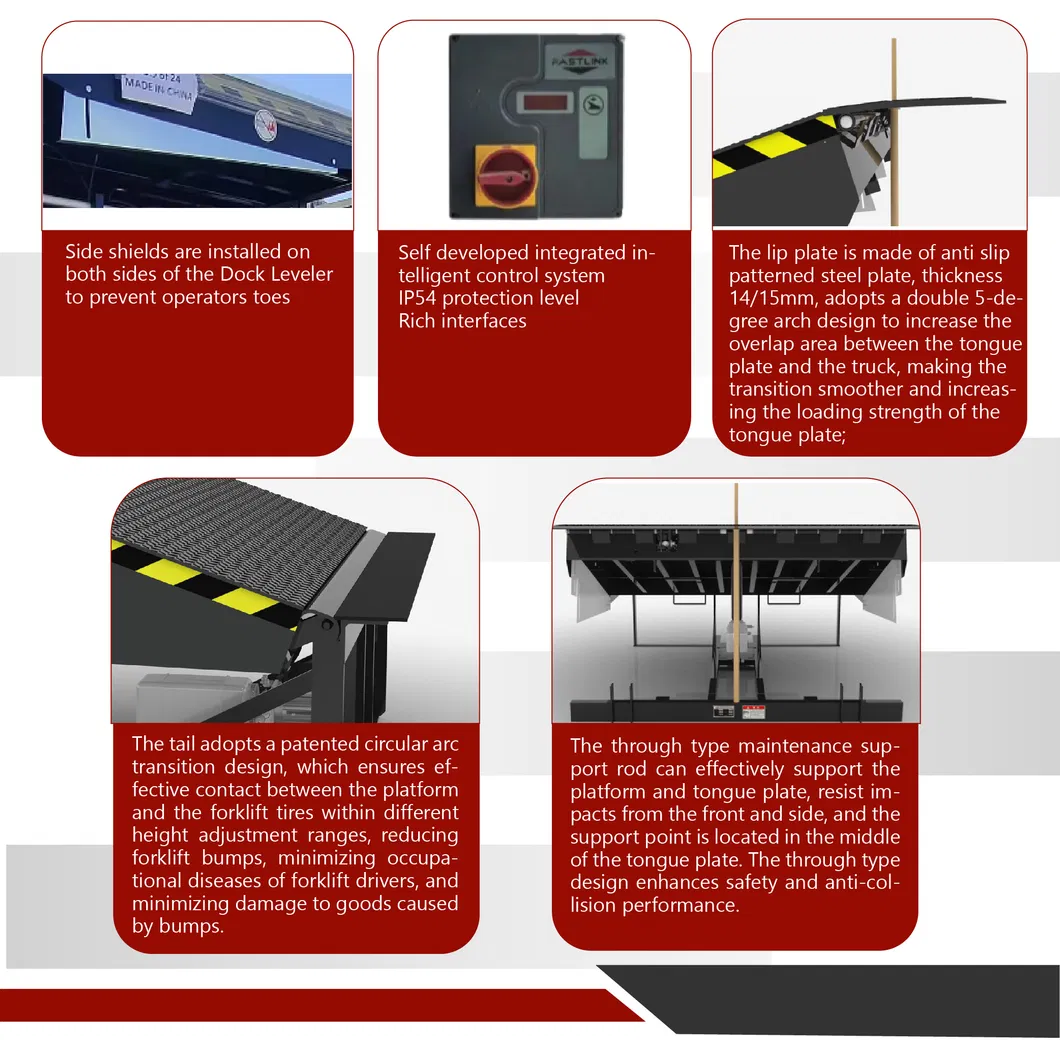

Dock Leveler Detail 5

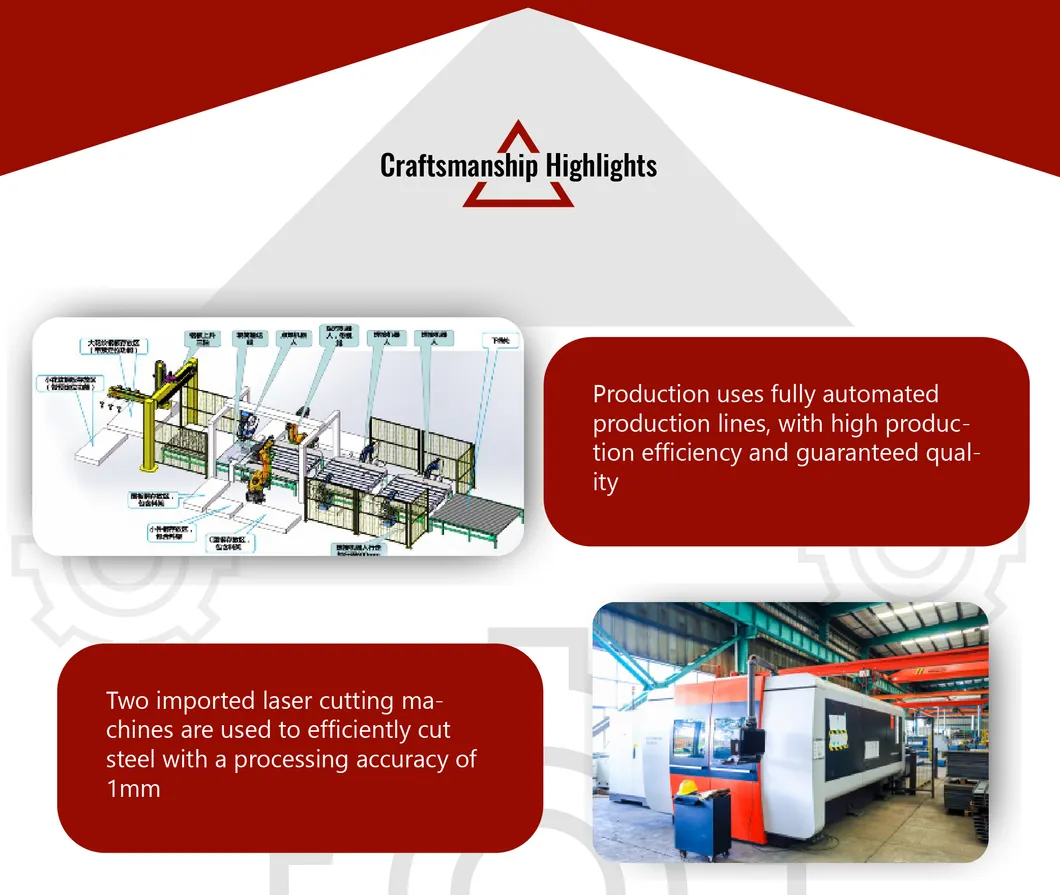

Dock Leveler Detail 6
Dock Leveler Detail 7
Dock Leveler Detail 8
Dock Leveler Detail 9
Dock Leveler Detail 10
Dock Leveler Detail 11

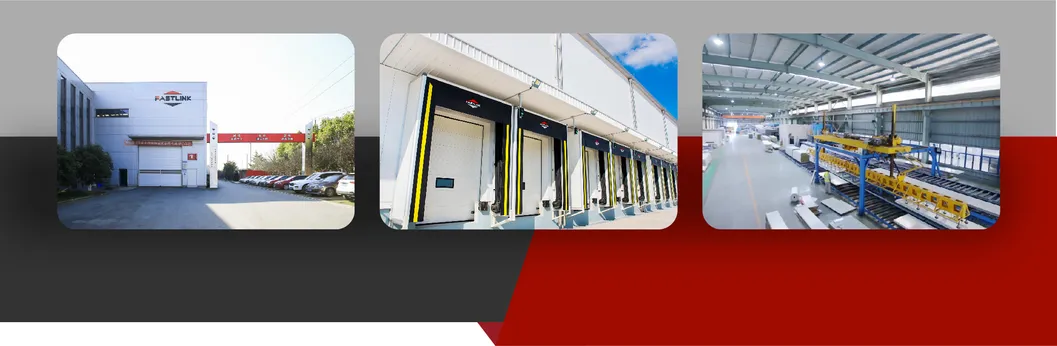

Dock Leveler Detail 12
?

Frequently Asked Questions

How do I choose the correct length for the Hydraulic Dock Leveler?
The length depends on the difference between the carriage floor height and the platform height. Use the formula: Platform length L = h (height difference) / 0.125.
What are the common sizes available?
The most common standard size is W2000mm * L2000mm * H600mm, though sizes can be customized from W1400mm up to W2200mm in width and 4000mm in length.
What is the difference between dynamic and static platform loads?
Dynamic load is the maximum combined weight of the forklift and cargo during operation. Static load is the maximum weight of stationary objects the platform can support when in its reset state.
What safety features are integrated into the design?
Key safety features include side foot protectors to prevent injury, penetrating maintenance support rods for enhanced crashworthiness, and an intelligent control system with interlock functions.
What are the lip plate specifications?
The lip plate features a high-strength anti-slip tread steel plate with a thickness of 14/15mm and a double 5-degree arch design to increase the contact area with the vehicle.
Is the control system easy to maintain?
Yes, the intelligent control system includes a fault code display and operation status display, allowing for quick troubleshooting and modular maintenance.
