| Model NO. | DL130 | Driven Type | Hydraulic |
|---|---|---|---|
| Running Mode | Stationary | Rated Load | Net 8 Tons, Dynamic 6 Tons |
| Certification | GS, CE, RoHS, ISO 9001 | Product Name | Dock Leveler |
| Dimensions | 2000mm(W) x 2500mm(L) x 600mm(H) | Pit Size | 2030mm x 2500mm x 610mm |
| Power Form | Electric-Hydraulic | Adjustment Range | +300/-300mm |
| Panel Thickness | 6mm Patterned Board | Hydraulic Oil | 32# Anti-Wear |

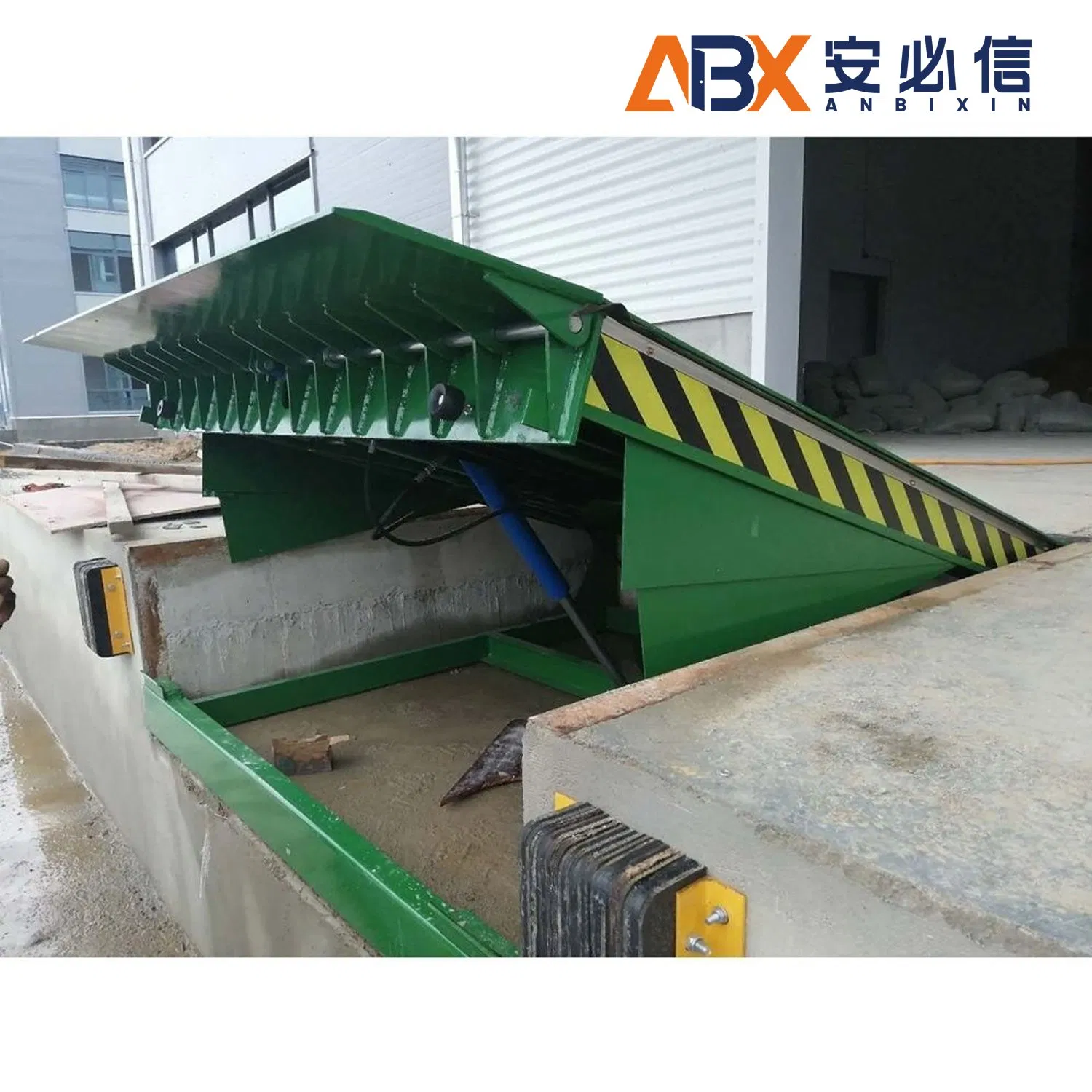

Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes. These platforms build a critical bridge between the cargo platform and the transport vehicle, allowing forklifts to travel conveniently for efficient material handling.
It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed in terms of dimensions and load-bearing capacity to meet diverse industrial needs.
ALL-WEATHER CONTINUITY
TAILORED INFRASTRUCTURE
ENERGY-SMART PERFORMER
Featuring a high-traction, anti-slip surface and weather-resistant components, guaranteeing reliable performance in wet or icy conditions.
Options for size, capacity, and control systems tailored to your unique architectural and operational requirements.
Advanced hydraulic system engineered for low energy consumption without sacrificing power or speed.
| Specification Item | Technical Detail |
|---|---|
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Adjustment Range | +300 / -300 mm |
| Adjust Time | Up Time ≤ 16s, Down Time ≤ 10s |
| Main Panel Thickness | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |
| Support Bar | Folded bottom for easy installation and maintenance |
| Safety Guard | Automatically retractable side baffles |
| Hydraulic Pressure | 8MPa +/- 1MPa |
| Anti-Collision | Laminated block 300*200*100 |
| Base Frame | 10# Channel Steel Welded H-Shaped Structure |
| Operational Life | ≥ 200,000 Times |
