| Model NO. | DL242 |
| Product Name | Dock Leveler |
| Power Form | Electric-Hydraulic |
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Certification | GS, CE, RoHS, ISO 9001 |
| Origin | Jiangsu, China |

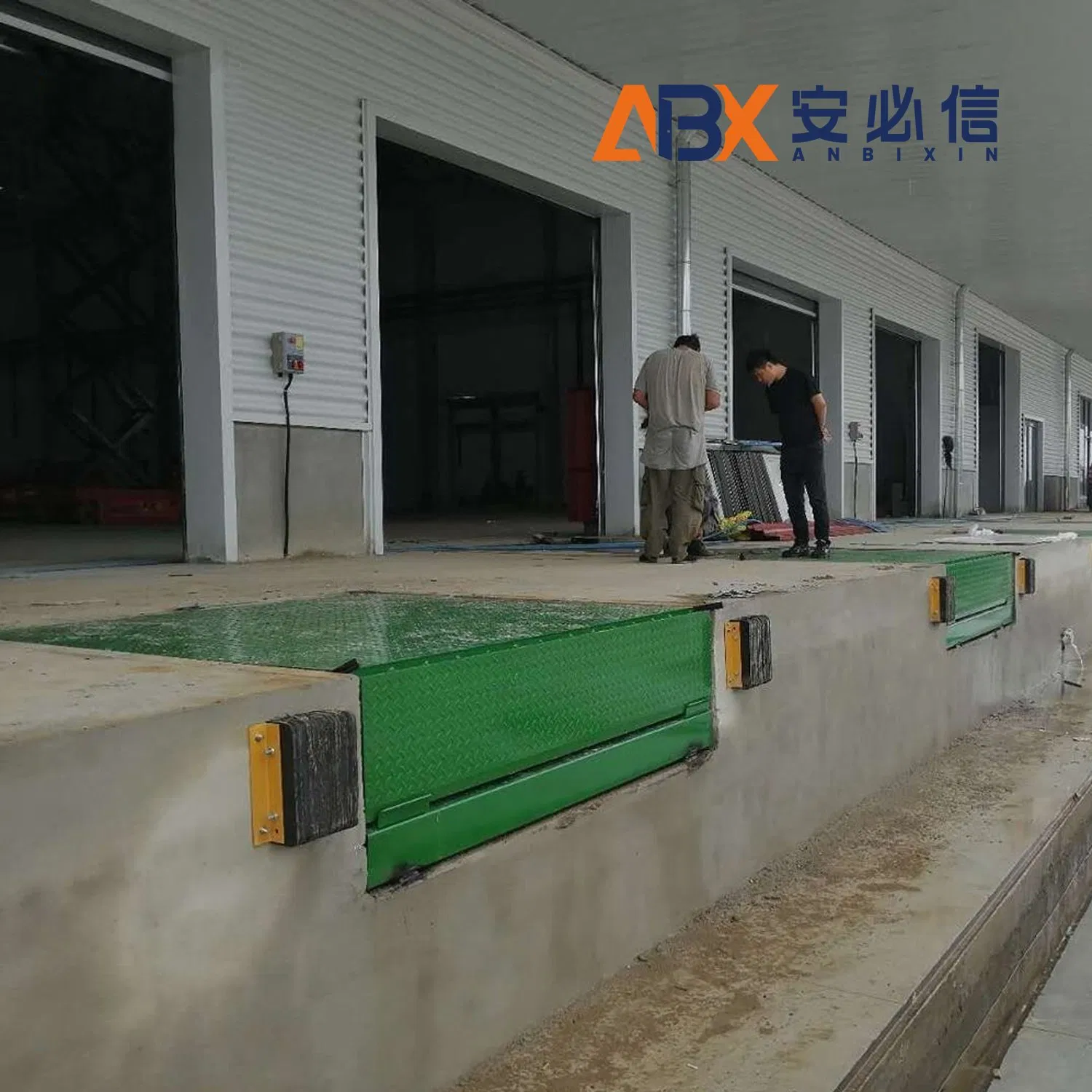

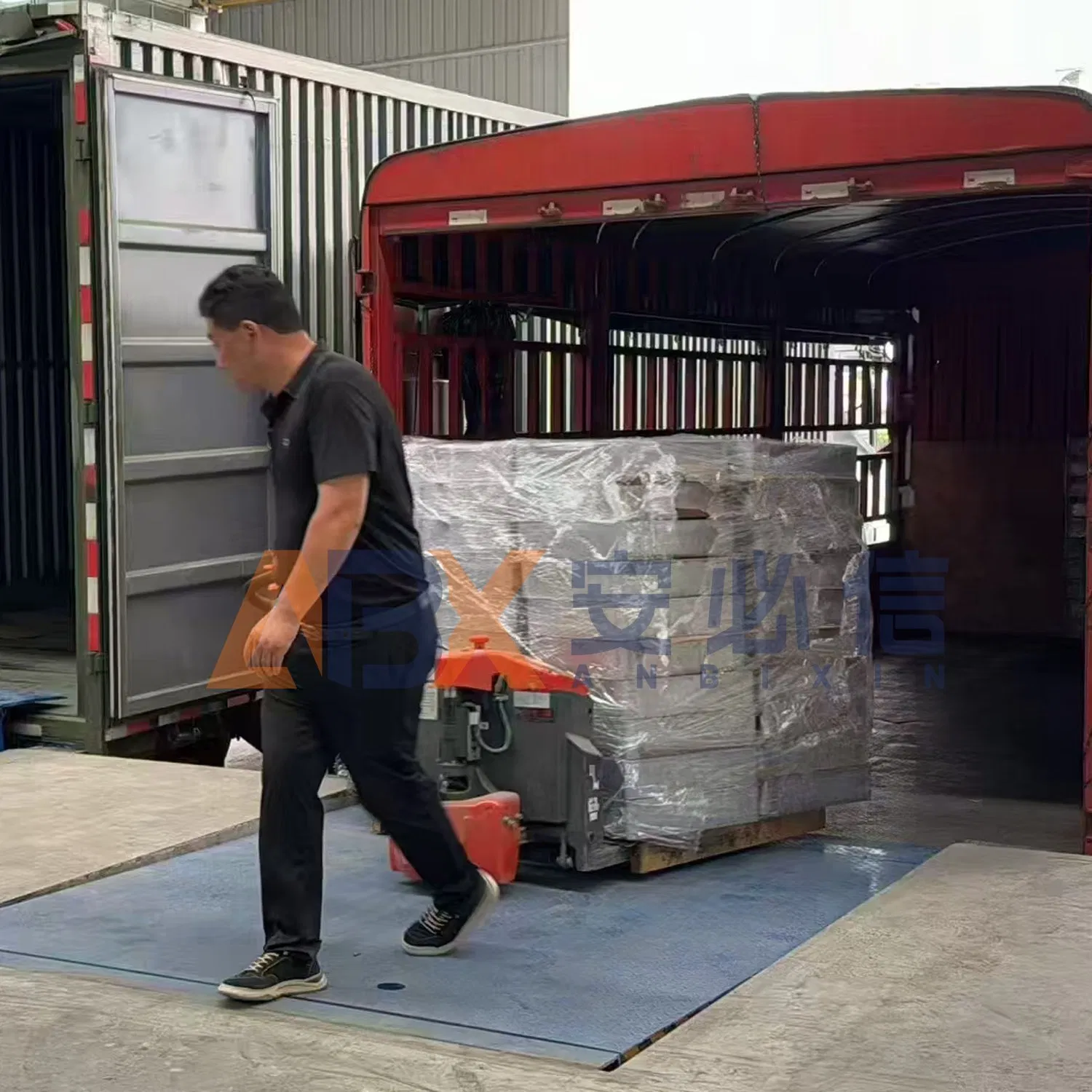

Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes. Our platform serves as a vital bridge between the cargo platform and the transport vehicle, allowing forklifts to travel conveniently for efficient loading and unloading.
It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during operation. This product is specially designed with premium materials to meet specific dimensions and load-bearing requirements.
| Feature | Specification |
|---|---|
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Adjustment Range | +300/-300mm |
| Adjust Time | Up: <=16s, Down: <=10s |
| Main Panel Thickness | 6mm Patterned Board |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil |
| Working Pressure | 8MPa +/-1MPa |
| Usage Life | >= 200,000 Times |
