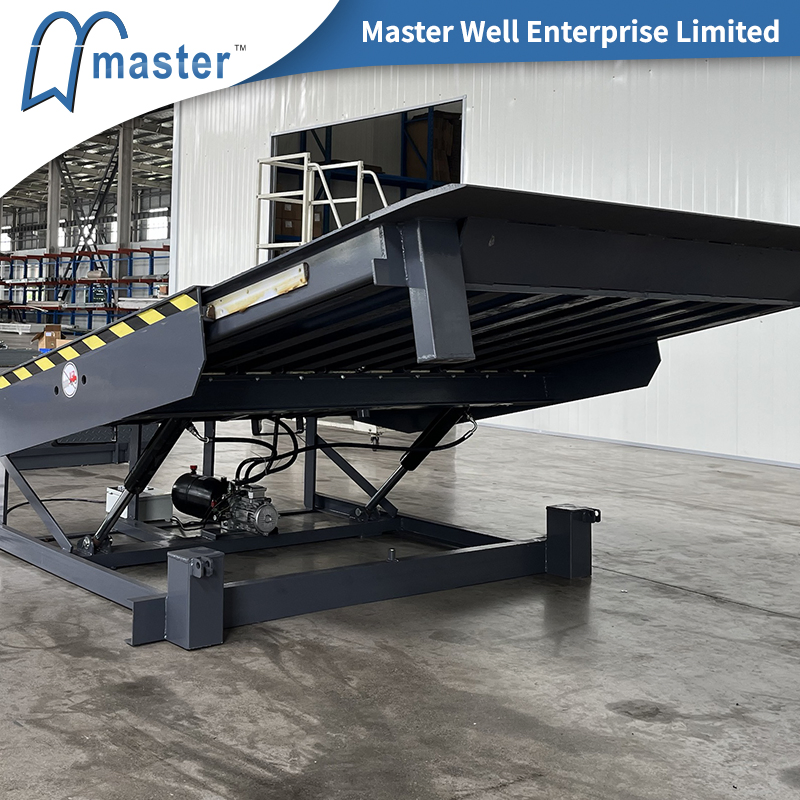

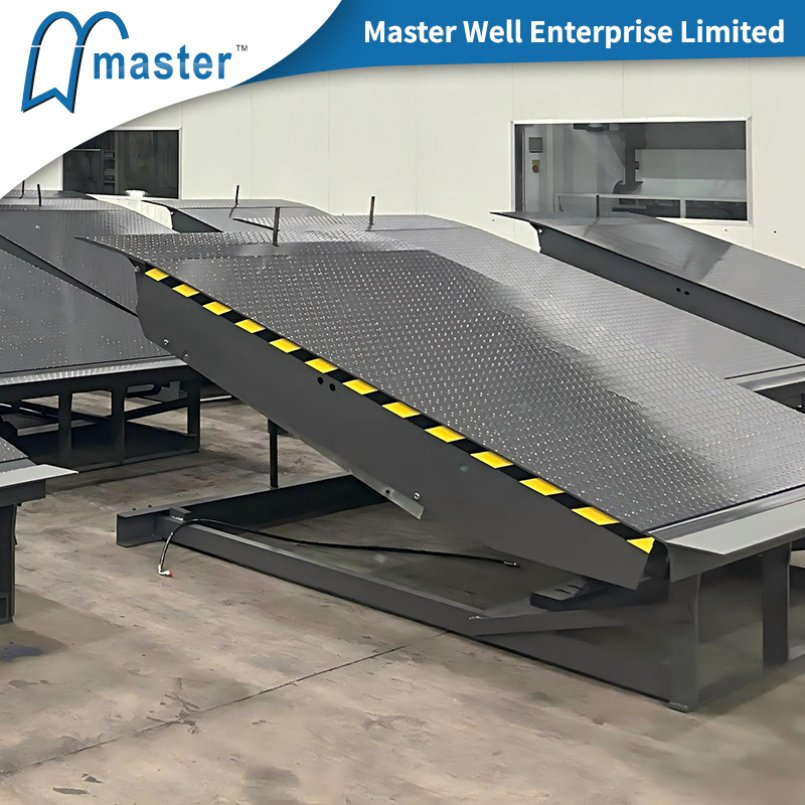

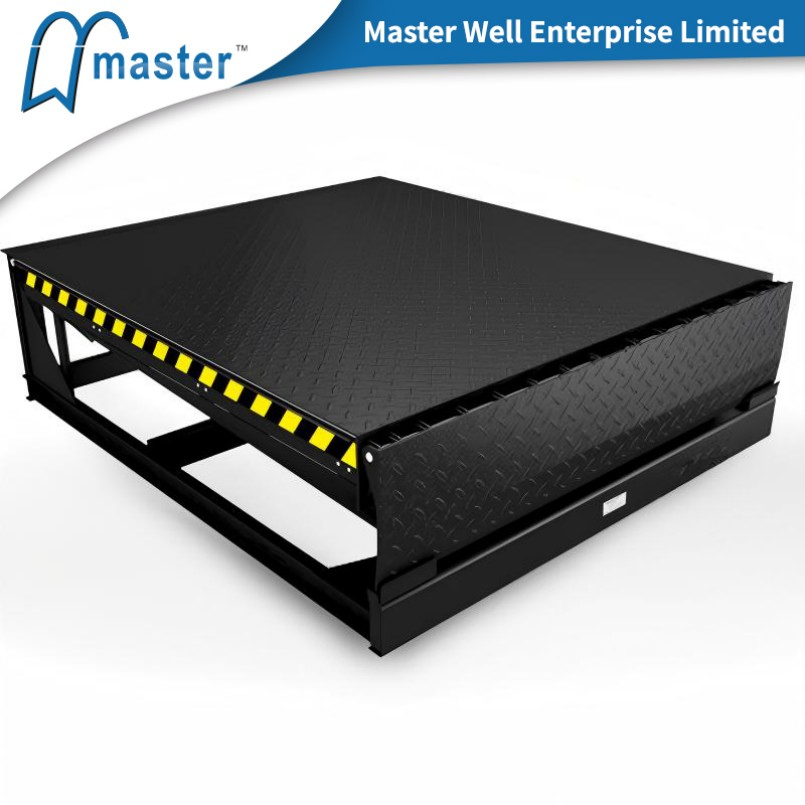

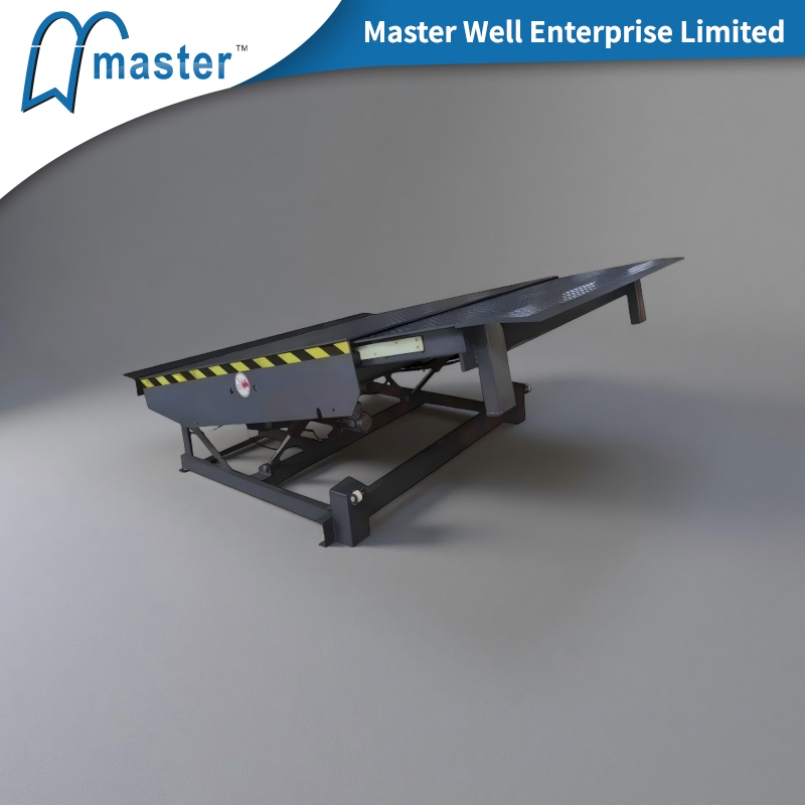

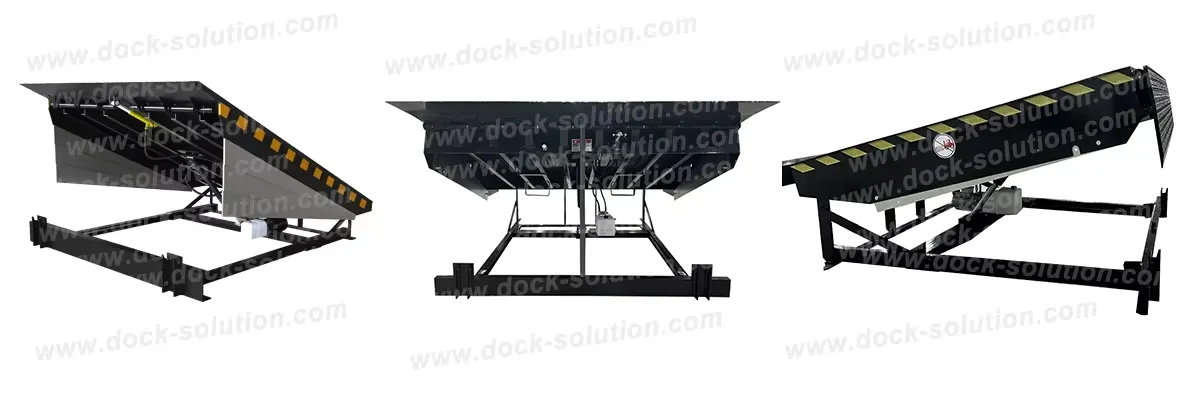

Hydraulic Dock Leveler uses a hydraulic power unit to lift the upper main panel through the main oil cylinder, while a small auxiliary cylinder pushes out the lip plate. It is essential when dock and truck heights differ, utilizing the principle of self-weight drop to position the lip plate onto the rear of the truck for seamless loading.
This hydraulic system is the most commonly utilized loading platform due to its stable performance, simple operation, and low maintenance requirements.
| Upper Plate | 8 mm thickness, anti-skate steel plate |
| Swinging Lip | Single 16 mm thickness, 400mm length |
| Support Profile | C-shaped stiffener / 14# I Beam |
| Sealing Element | Japan Brand NOK A505 |
| Working Range | +300mm / 260~300mm |
| Adjustment Time | Rise Time ≤ 16S, Fall time ≤ 10S |
| Dynamic Loading Capacity | 6,000 ~ 25,000 KG |
| Service Life | ≥ 200,000 times |
| Operating Temperature | -30℃ ~ +50℃ |

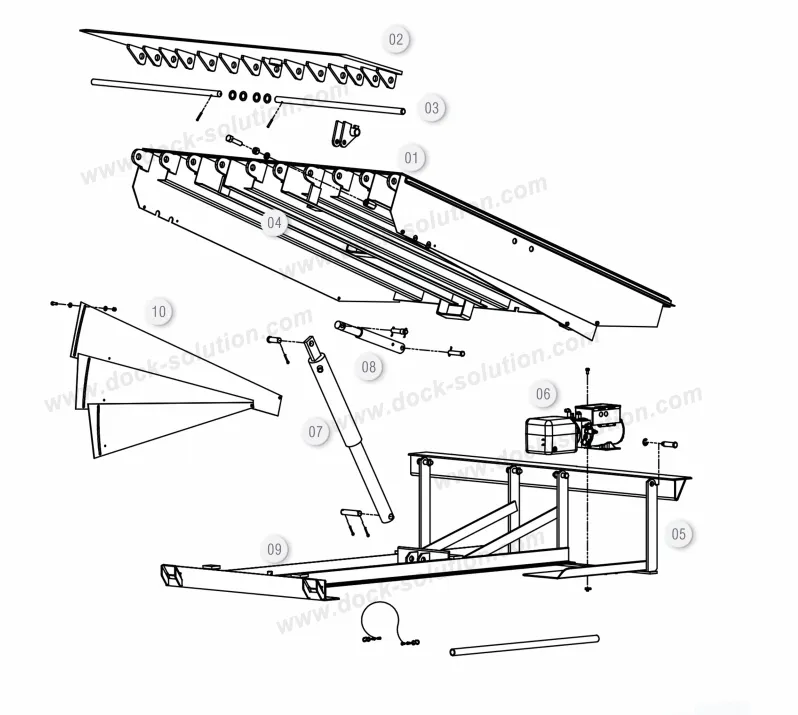

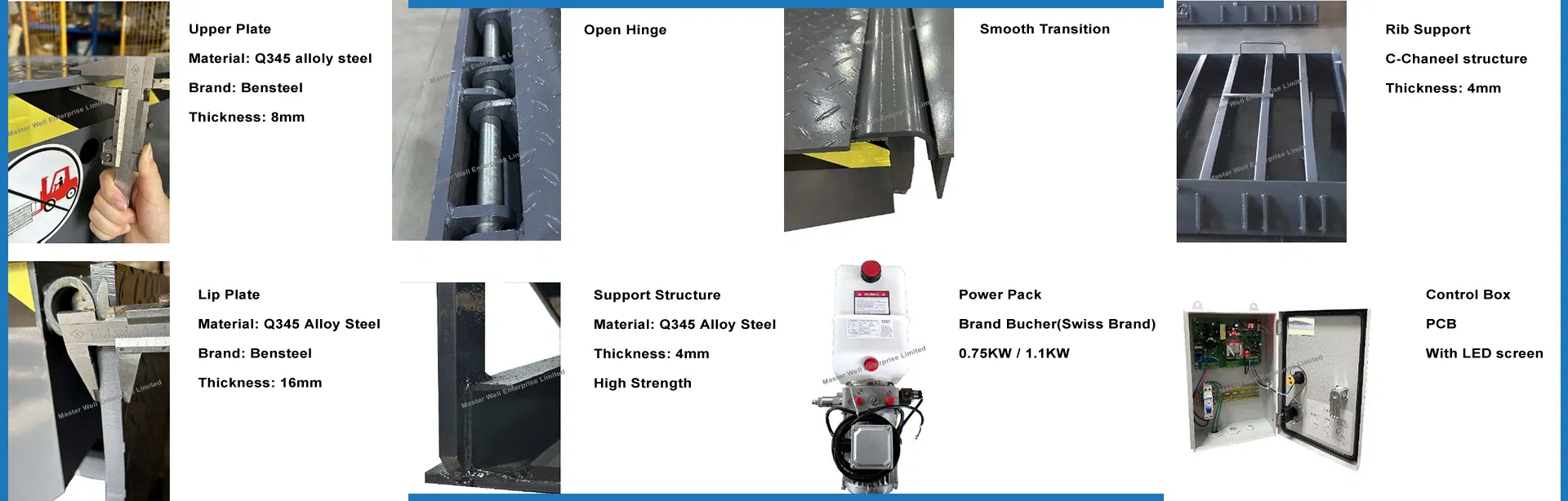

| 1. Upper Plate | 6. Power Pack |
| 2. Lip Plate | 7. Main Cylinder |
| 3. Hinge (Open) | 8. Auxiliary Cylinder |
| 4. Rib Support | 9. Frame |
| 5. Support Structure | 10. Guard |
Relying on excellent business performance and R&D, our professional team includes International Sales, Purchase, Financial, and Research & Development departments. We are always ready to provide professional services for your industrial needs. We produce parts in-house to strictly control quality and costs.
