| Product Name | Dock Leveler |
|---|---|
| Model NO. | DL098 |
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons |
| Power Form | Electric-Hydraulic |
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Certification | GS, CE, RoHS, ISO 9001 |
| Origin | Jiangsu, China |

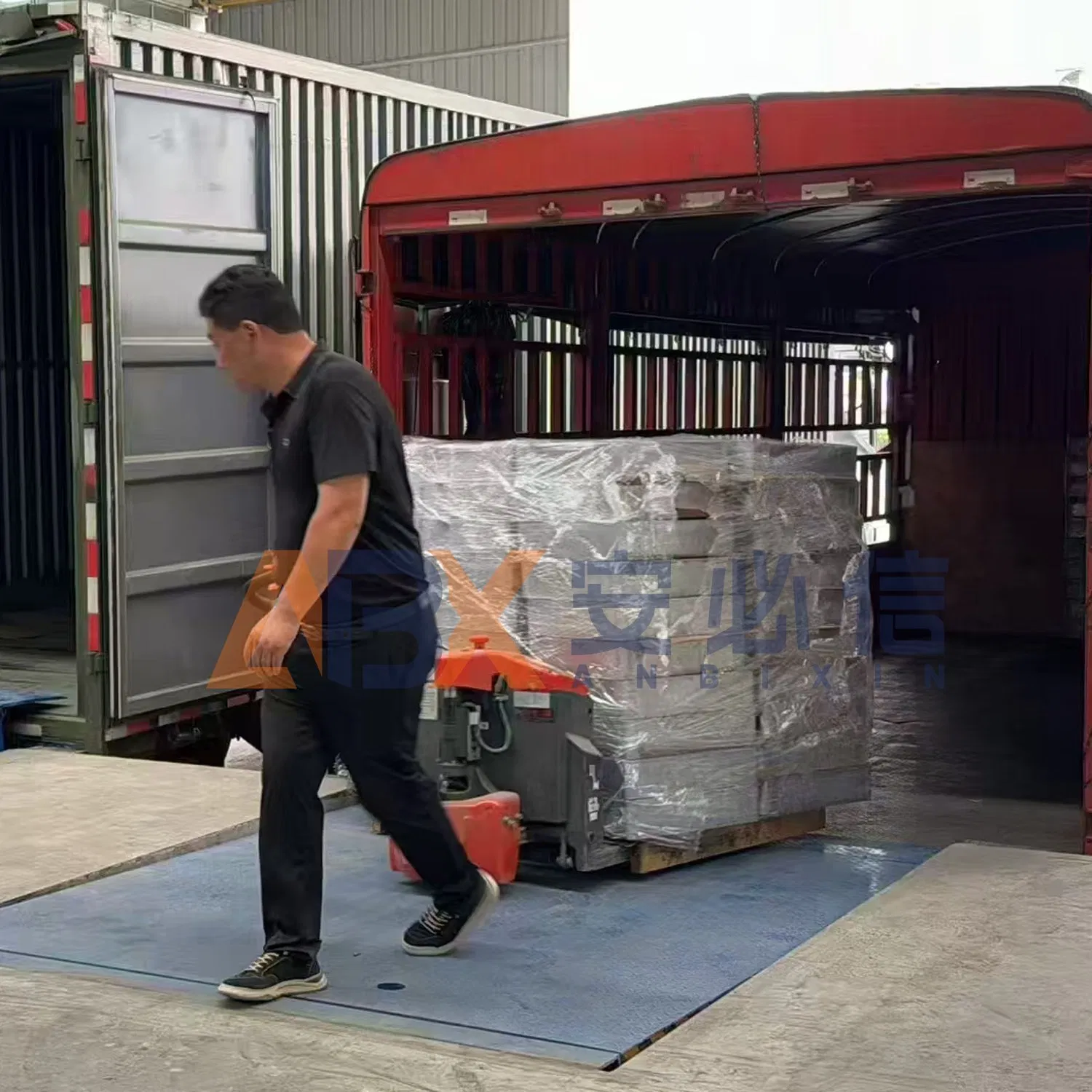

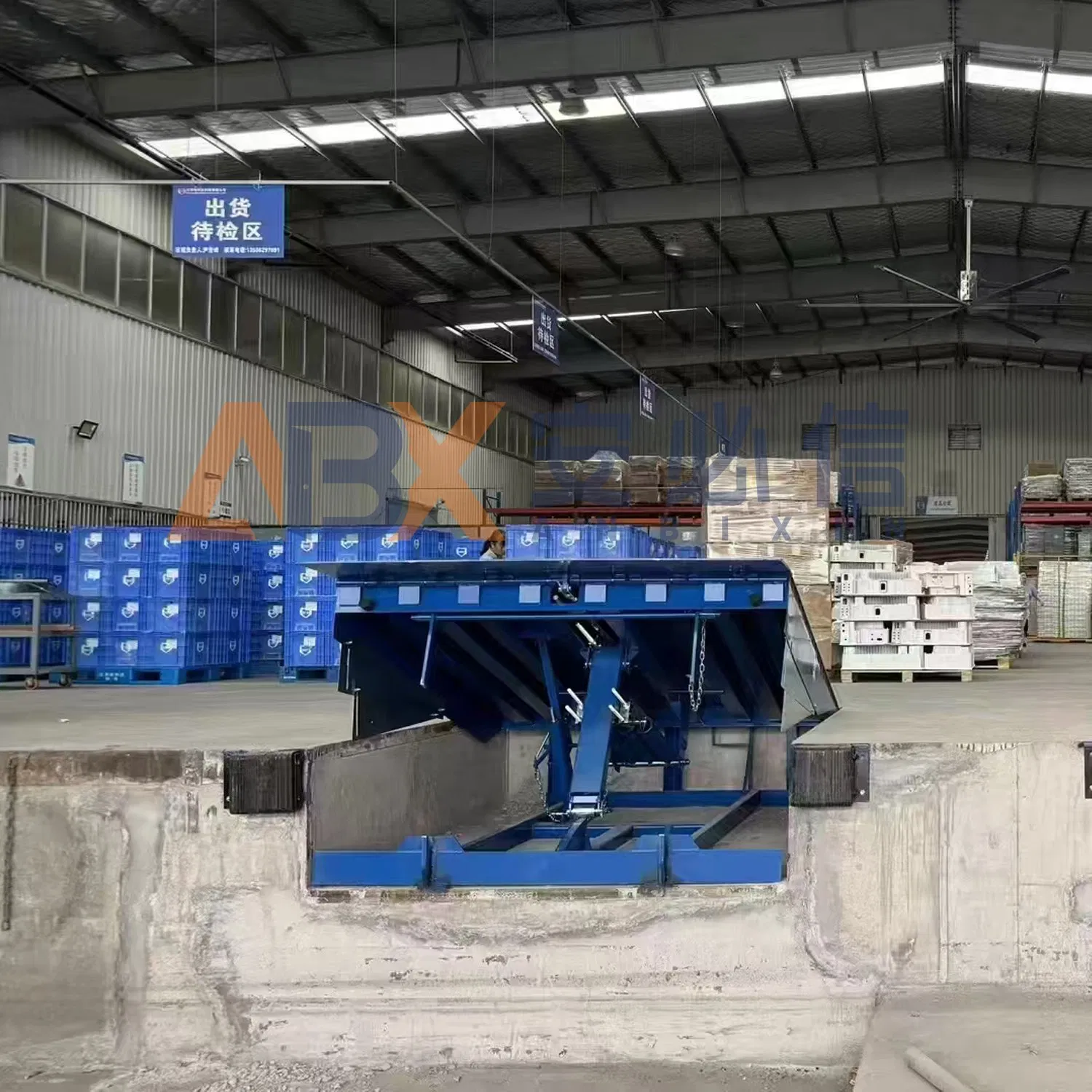

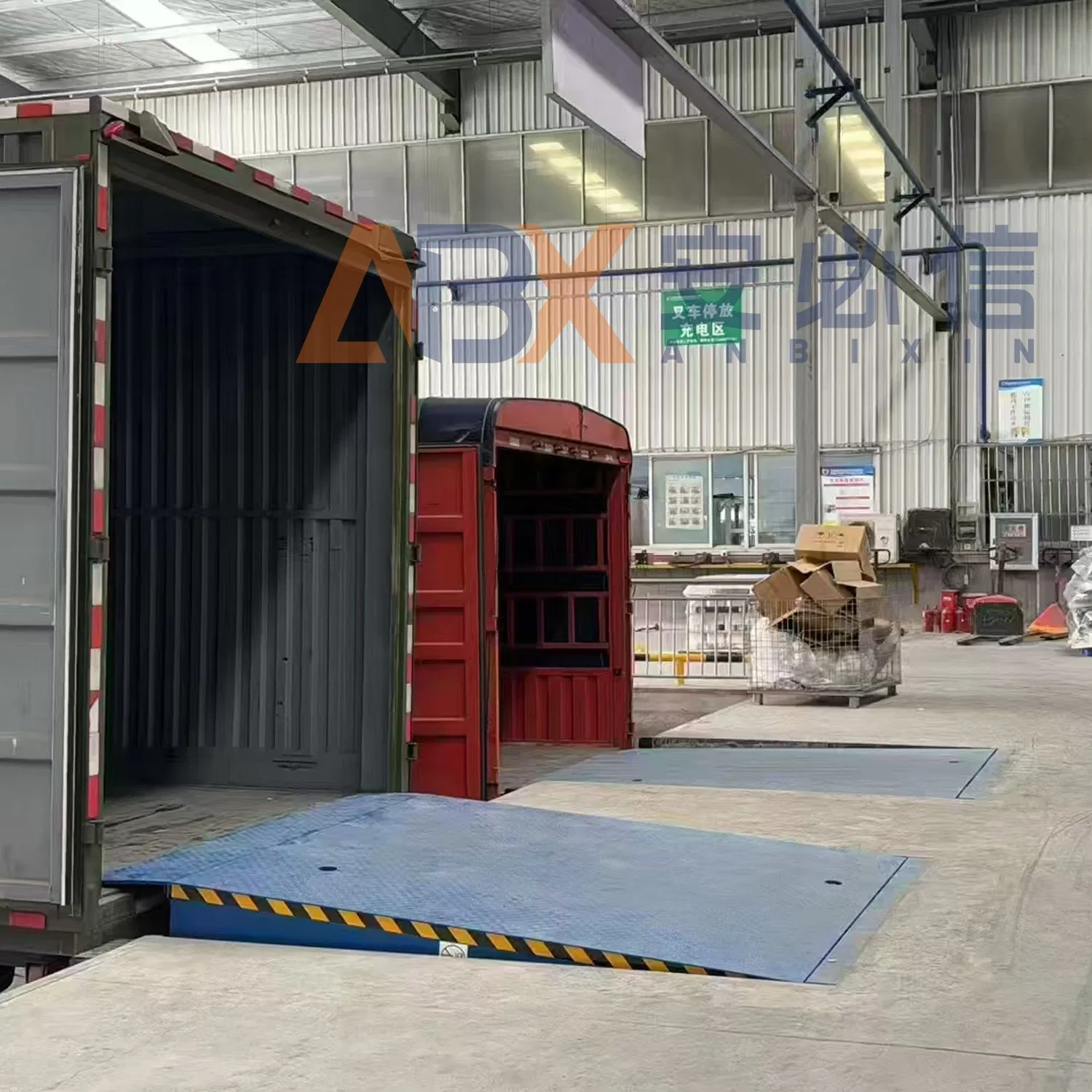

Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes. The loading and unloading platforms are divided into fixed loading and unloading platforms and mobile loading and unloading platforms. Its main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading.
It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed in terms of dimensions, load-bearing capacity, etc., according to the different needs of users.
| Adjustment Range | +300/-300mm |
|---|---|
| Adjust The Time | Up Time <=16s Down Time <=10s |
| Board Thickness | 12mm |
| Main Console Panel | 6mm Patterned Board |
| Hydraulic Oil | 32# Anti-Wear Hydraulic Oil |
| Working Pressure | 8MPa +/-1MPa |
| Use Times | >= 200,000 Times |
