DOCK LEVELER SOLUTIONS
Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.

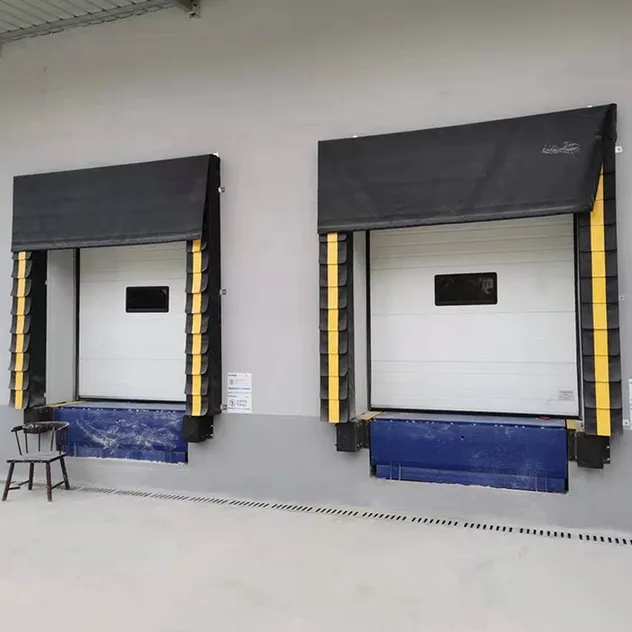

Our loading and unloading platforms are divided into fixed and mobile types. Its main function is to build a bridge between the cargo platform and the transport vehicle, allowing the forklift to travel conveniently for unloading.
It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed in terms of dimensions and load-bearing capacity to meet varied industrial needs.
Keep operations running smoothly in any weather. Featuring a high-traction, anti-slip surface and weather-resistant components for reliable performance in wet or icy conditions.
Fully customizable solutions including size, capacity, and control systems tailored to your unique architectural requirements.
| Parameter Item | Specifications |
|---|---|
| Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Board Thickness | 12mm / 400mm Length |
| Main Console Panel | 6mm Patterned Board |
| Adjustment Time | Up ≤ 16s / Down ≤ 10s |
| Hydraulic Pressure | 8MPa +/- 1MPa |
| Base Frame | 10# Channel Steel Welded H-Shaped Structure |
| Service Life | ≥ 200,000 Times |
Speeds up loading cycles by providing a stable and reliable platform, boosting overall operational throughput.

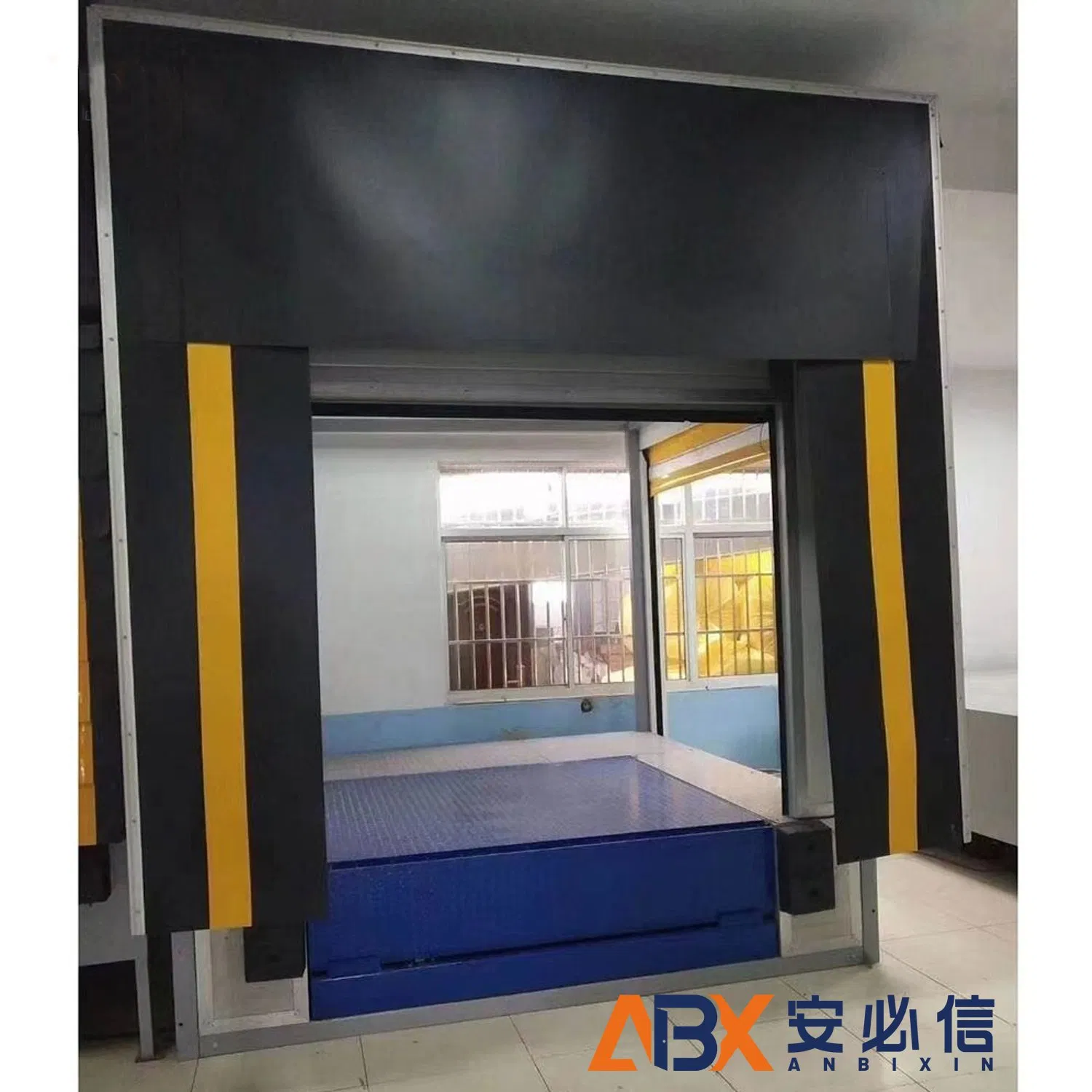

Equipped with full-range toe guards and a velocity fuse to protect workers and equipment, reducing accident risks.
