| Model NO. | DL499 | Driven Type | Hydraulic |
| Product Name | Dock Leveler | Certification | GS, CE, RoHS, ISO 9001 |
| Rated Load | Net Load 8 Tons, Dynamic Load 6 Tons | Equipment Dimensions | 2000mm Wide, 2500mm Long, 600mm High |
| Power Form | Electric-Hydraulic | Adjustment Range | +300/-300m |

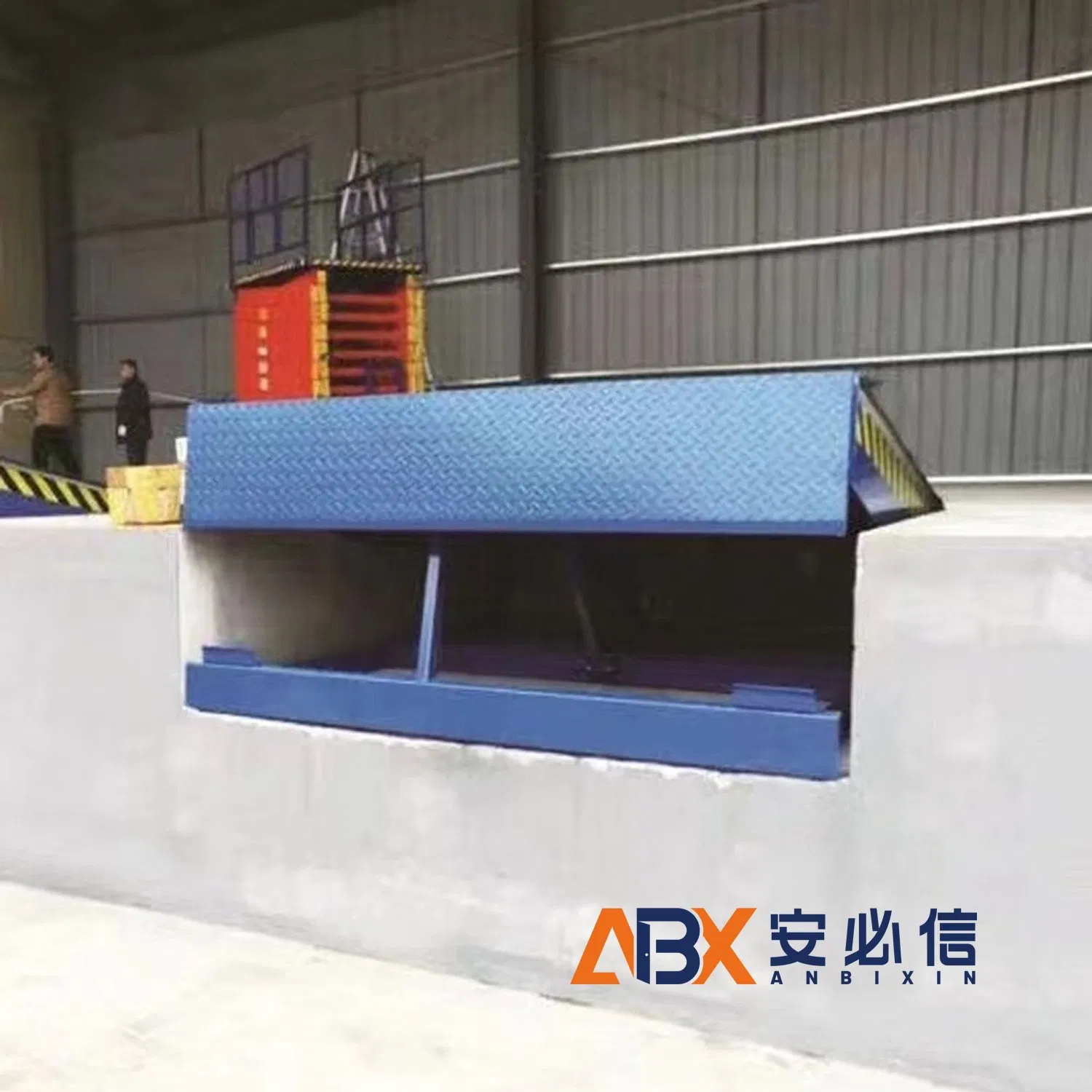

DOCK LEVELER
Loading and unloading platforms are suitable for hydraulic, pneumatic, or mechanical installations. It helps users safely and efficiently unload trucks of all heights and sizes.
Our loading and unloading platforms are divided into fixed and mobile types. Its main function is to build a bridge between the cargo platform and the transport vehicle, allowing forklifts to travel conveniently for unloading.
It can automatically adjust its height according to different vehicle models and changes in the vehicle compartment during loading. This product is specially designed for dimensions and load-bearing capacity based on user needs.
ALL-WEATHER OPERATIONAL CONTINUITY
Featuring a high-traction, anti-slip surface and weather-resistant components for reliable performance in wet or icy conditions.
TAILORED FOR YOUR INFRASTRUCTURE
Fully customizable solutions with options for size, capacity, and control systems tailored to unique requirements.
THE ENERGY-SMART PERFORMER
Advanced hydraulic systems engineered for low energy consumption without sacrificing power or speed.
| DETAILED SPECIFICATIONS | |
|---|---|
| Pit Size | Width: 2030mm, Length: 2500mm, Height: 610mm |
| Adjust The Time | Up Time ≤ 16s, Down Time ≤ 10s |
| Board Thickness and Length | 12mm / 400mm |
| Main Console Panel Thickness | 6mm Patterned Board |
| Motherboard Skeleton | L-Shaped Bend |
| Support Bar Installation | Folded bottom panel for easy maintenance |
| Side Body Guard Baffles | Automatically retractable safety guards |
| Hydraulic Oil Specs | 32# Anti-Wear Hydraulic Oil (8MPa +/-1MPa) |
| Anti-Collision Glue | Laminated Belt Combination Block 300*200*100 |
| Base Frame | 10# Channel Steel Welded H-Shaped structure |
| Available Colors | Black, Blue, Grey, Green |
| Service Life | ≥ 200,000 Times |
